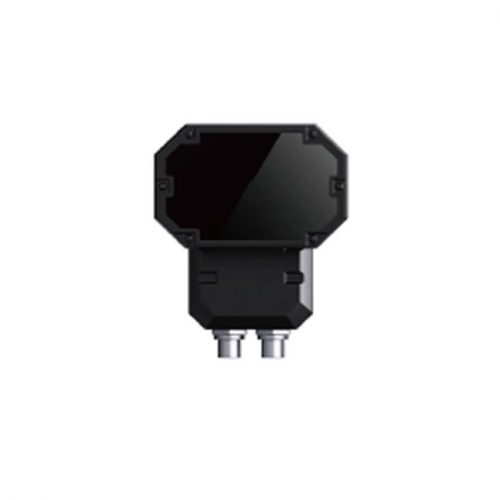

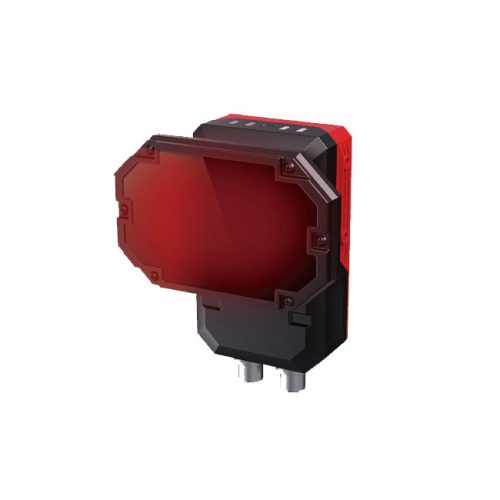

VS610 Integrated Visual Sensor Industrial Camera

Industrial camera built-in Al processing chip, sensor, lens, light source, and other integration-body
Intelligent correction of inferior bar code (such as edge deformation, damage, dirt, etc.), the success rate of reading up to 99.9%, greatly reduces the rework rate
Reading accuracy as high as 3mil, industrial camera owns the ability of high-density reading, on the PCB board pick code, or very small bar code accurately being read
Support OCR identification, code identification
Visual sensor industrial camera applied to auto parts,3C, the textile industry, semiconductors, food, and drug packaging, and other industries

Category: Industrial Barcode Scanner Tags: COMS Sensor industrial camera visual sensor

Share this product

Description

VS610’s New visual sensor industrial camera has features in highly integrated and high-performance deep learning algorithms, which has a specially designed lens with a large depth of field, high-performance image processing CPU, high brightness LED lighting, and high sensitivity CMOS sensor, to accomplish high precision and accurate reading in a hostile environment.

There are other kinds of industrial barcode scanners that can be selected for PCB Board or Metal Component scanning in specific environments, like fixed industrial scanners or wireless industrial scanners for choices, and if you have the needs for warehouse and logistics, LCD industry, factory production line, etc, you can ask for assistance by Vmax.

The most innovative sensors are bundled with powerful functions for both fully automated or precise manual mode over capturing images as well as on pre-processing in industrial visible sensor cameras. You could learn more about the features and functions of products by downloading the product catalog.

Module NO.	VS610
Image Sensor	Sensor	CMOS Sensor
	Resolution	4056 X 3040
	Frame Rate	15 fps
Lens	Focal Distance	automatic focusing
	Field of View	Horizontal Angle: 39°
	Field of View	Vertical Angle: 33 °
Light Source	Illumination	White LED
	Aimed lamp	Green LED
	Indicator	Red LED, Green LED, Blue LED, Yellow LED
Visual Tools	With or Without	pattern, circle, spot, line, edge
	Count	Spot count, edge count, pattern count
	Recognition	OCR identification, code identification
Mini Accuracy	≧4mil
Input & Output	2 photoelectric isolated inputs
	3 photoelectric isolated outputs
	Serial Communication	Communication standard complies with RS232C
	Serial Communication	Transmission speed: 9600, 19200, 38400, 57600, 115,200 bps
	Ethernet	Communication standard 100BASE-TX; Support protocol TCP/IP
	USB	Communication standard conforms to the USB standard protocol
Rated Value	Voltage	24V DC±10%
	Current	Stand-by Current: 200mA
	Current	Operation Current: 2500mA
	Power Consume	60W
Environmental Resistance	Temperature	Operation temperature : 0 ~ +45°C
	Temperature	Storage Temperature: -10 ~ +50°C
	Humidity	Relative Humidity: 5% ~ 85% (No condensation)
	Humidity	Storage Environment Humidity: 5% ~ 85% (No condensation)
	Protection	IP54
	Ambient Light	Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux
	Fall	Withstand multiple 1.2m drops to the concrete floor (deflection allowed 5° )

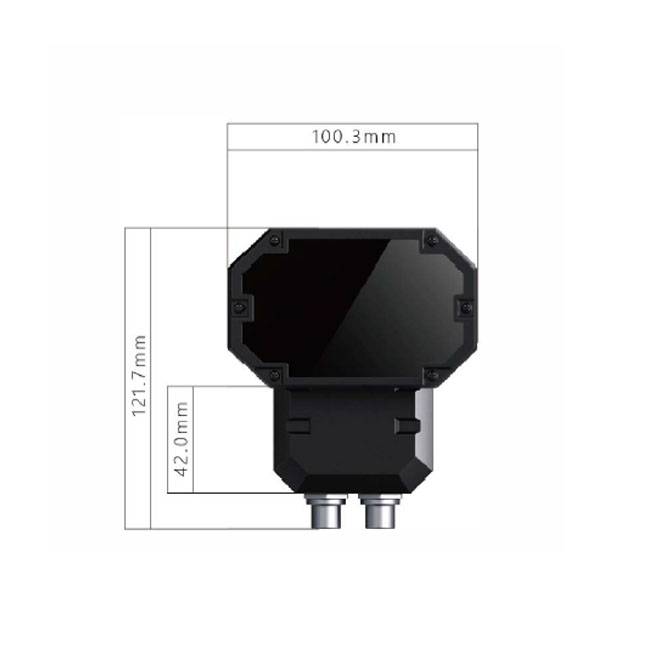

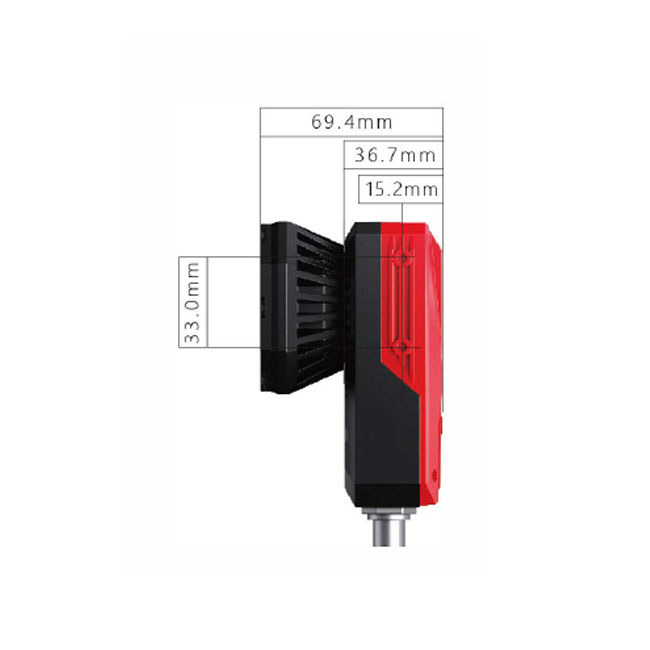

Machine	Dimensions	121.7mm x 100.3mm x 69.4mm
	Weight	500g
	Shell material	Aluminium alloy
Certification	CE FCC RoHS ISO9000 IOS9001
