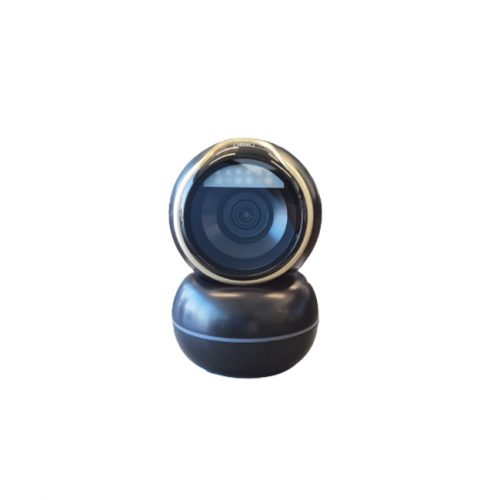

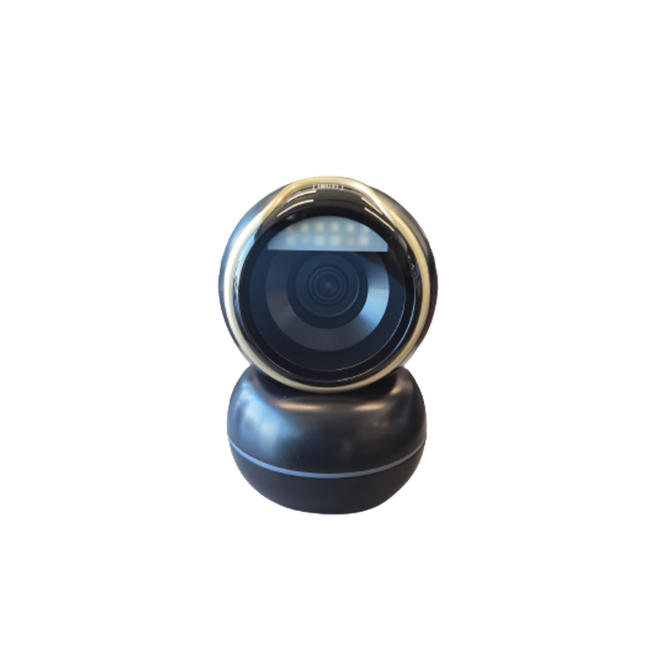

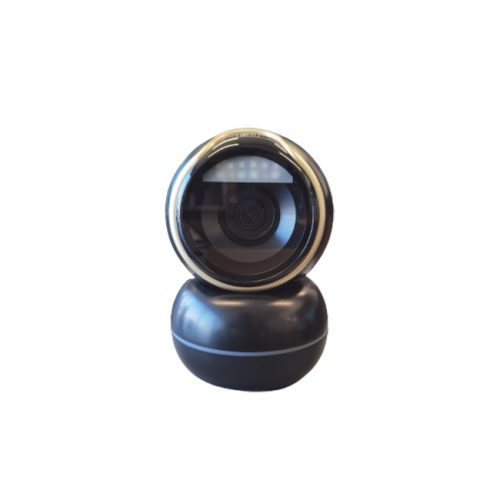

OD8300 Desktop Platform Barcode Reader

  • Decoding capability: Super decoding, endless fast
  • Auto-sensing: Megapixels, super large viewing angle
  • Sleep mode: Automatic sleep, mode adjustable barcode reader
  • Novel design: Traceless assembly, touch buttons
  • Desktop platform barcode scanner supports hands-free scanning with continuous reading capacity
You are here:

Share this product


OD8300 Desktop Platform Barcode Reader has a hue angle of viewing for scanning 1d 2d bar codes, featured in the handsfree design, traceless assembly, and touch buttons, with extra-large reading area and flow scanning enable rapid and easy reading for barcodes and other sources, which can provide the applications of scanning goods commodity codes in stores or payment QR codes in supermarkets, etc.

Physical Characteristics

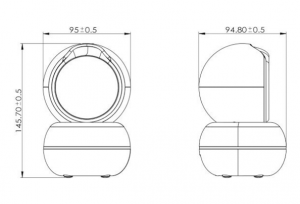

Dimensions145.7mm x 95mm x 94.8mm
Stand-by Current180mA
Interfaces SupportedUSB
Starting Current330mA
Work Current300mA
Prompting ModeLED/Speaker
Performance Characteristics
Image (Pixels)1280 pixels (H)x 1024 pixels (V)
Light Source(Indicator) Green color LED; (Illumination) Red color LED
Field of View54°(H) X53°(V)
Roll / Pitch / Yaw360°, ±65° , ±65°
Print Contrast20% minimum reflective difference
Motion Tolerances4M/S
Resolution≥ 3mil
Symbology Decode Capability
1-DCodabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA,Matrix 2 of 5,Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar

Expanded、China Post (Hong Kong 2 of 5)、Korea Post.

2-DDOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN.
User Environment
Operating Temperature-20°C to 60°C
Storage Temperature-30°C to 70°C
Humidity5% to 95% relative humidity, non-condensing
Shock SpecificationsDesigned to withstand 1.5m (5’) drops
Ambient Light Immunity0-100,000 Lux.
Decode Ranges
Code39(4mil):2-8cm       Qrcode(15mil): 0-11cm      Code 128(13mil): 0-26cm
Code39(5mil): 0-12cm          QRcode(20mil):0-16cm       Code 128(20mil): 0-26cm
Code39(13mil): 0-25cm       QRcode(30mil):0-25cm       ENA-13(5mil): 1.5-9cm
Code39(20mil): 0-38cm       QRcode(3*3 ):0-16cm           ENA-13(13mil): 0-24cm
