- PD700-III Cash Register Customer Display

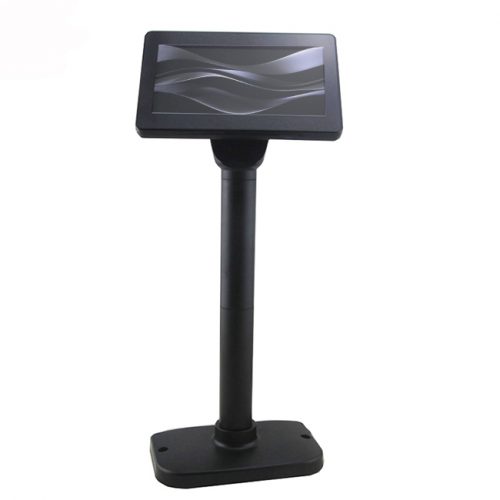

PD700-II 7 inch Cash Register Customer Display monitor with true-color LCD screen,support high resolution in 1024*600 and tft-lcd display to make content easier to read for both customers and employees while equipped with Customer Display+ Picture+Video.
General | |
Display Method | TFT – LCD Display(7 inch COLOR PANEL) |
Number of characters | 20columns×2 line |
Brightness | >350cd/m2 |
Resolution | 1024×600 |
Character font | 40*80 dot matrix |
Character type | 95 Alphanumeric,32 international characters |
Character size | 11.2(H)×7.29(W)mm |
Dot size(X×Y) | 0.1927×0.179mm |
Display Area | 154(L)×86(W)mm |
Pole Dimension | Per support length:260(L)×35(DIA)mm |
Base Dimension | 180(L)×100(W)×40(H)mm |
Viewing Angle | Max.135° |
Horizontal Rotation | Max.355° |
Weight | 1112grams |
Commands Mode | |
15 kinds, E.g LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc | |
Language Support | |
CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP864,WCP1257, WCP1258, CP874(Thai) | |
Interface | RS-232(serial)/USB |
Two display pattern | Customer Display+ Picture+video |
Baud | Direct connection 9600/19200/38400/57600/115200 bps |
MTBF | 30000 hours |
Consumption | 5-24 VDC |
EMC standards Safety standards | FCC,CE,ROHS |
