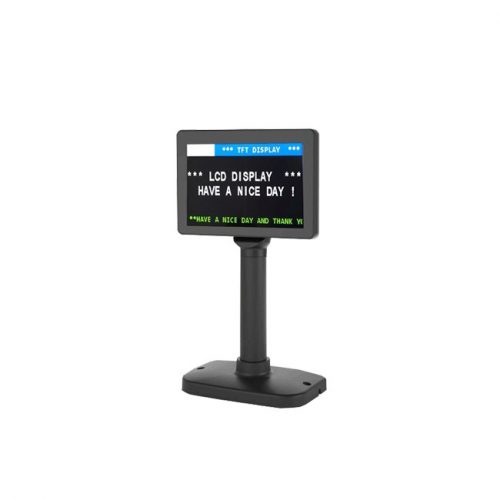

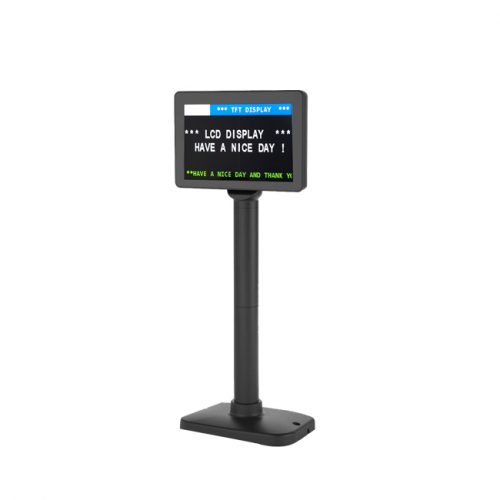

PD700-II USB Customer Display Monitor
- 7-inch LCD large view and high clear screen.
- Customer Display Monitor supports 800*480.
- LED backlight, uniform light transmission, and durability.
- Support USB 2.0, and RS232 interfaces.
Share this product
Description
PD700-II 7-inch USB Customer Display has a wide view angle and high-clear screen, not only supports 800*480 and 350 brightness, owning USB2.0, RS323 interfaces, and 20columns×2lines / 20columns×4lines of characters for display contents customizable.
Pole customer displays can be produced in multi-line fluorescent or LCDs that can connect to your system via USB.
This eye-catching pole display allows customers to double-check the price for increased satisfaction.
Other sizes of USB customer displays are available for your pos system, you could download the product catalog for a preview or call us for an explanation.
| General | Display Method | TFT – LCD Display（7 inch COLOR PANEL） |
| Number of characters | 20columns×2 line / 20columns×4 line | |
| Brightness | ＞350cd/m2 | |
| Resolution | 800*480 | |
| Character font | 40*80 dot matrix | |
| Character type | 95 Alphanumeric，32 international characters | |
| Character size | 11.2（H）×7.29（W）mm | |
| Dot size（X×Y） | 0.1927×0.179mm | |
| Display Area | 154（L）×86（W）mm | |
| Pole Dimension | Per support length：260（L）×35（DIA）mm | |
| Base Dimension | 180（L）×100（W）×40（H）mm | |
| Viewing Angle | Max.135° | |
| Horizontal Rotation | Max.355° | |
| Weight | 1112grams | |
| Commands Mode | 15 kinds, E.g LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc | |
| Language Support | CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP864,WCP1257, WCP1258，CP874（Thai） | |
| Interface | RS-232（serial）/USB | |

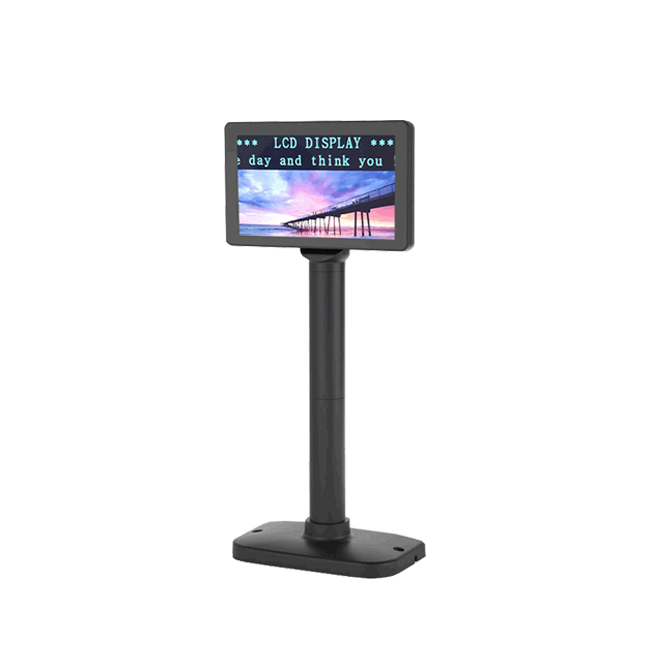

| Two display pattern | Customer Display / Customer Display+ Picture | |
| Connection | Baud | Direct connection 9600/19200/38400/57600/115200 bps |
| Reliability | MTBF | 30000 hours |
| Power | Consumption | 5-24 VDC |
| Safety | EMC standards | FCC， CE， ROHS |
| Safety standards | ||
