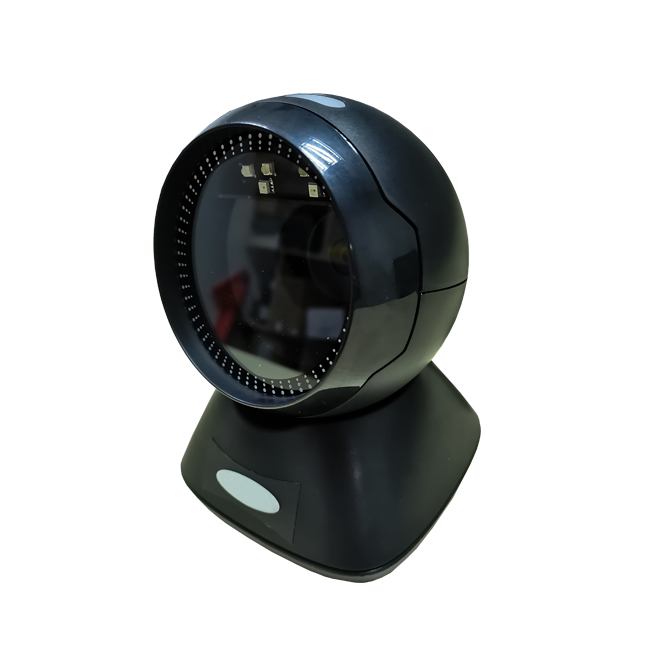

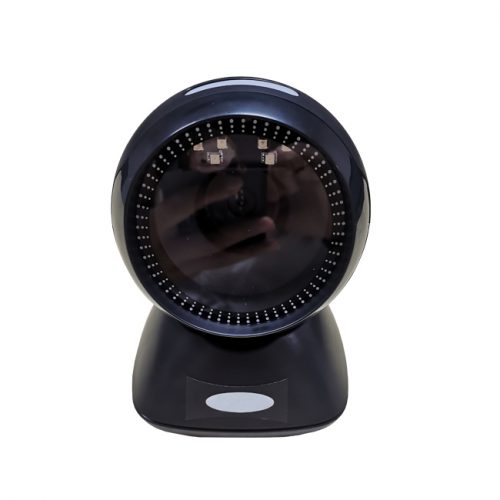

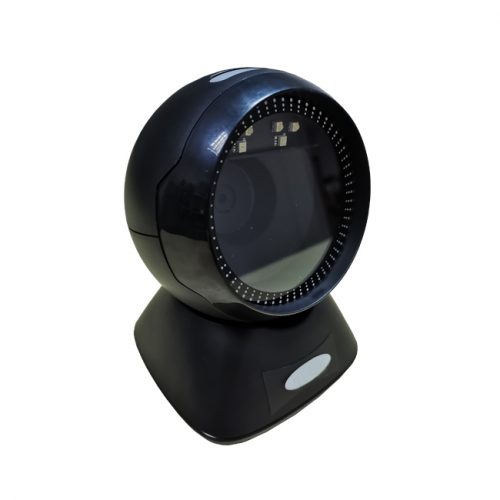

OD7200 Platform Barcode Reader
- Smoother mobile payment barcode reading ability
- Platform barcode reader can quick boot, plug and play
- Wide range of applications: suitable for retail, medicine, healthcare,logistics, inventory,manufacturing…
Share this product
Description
OD7200 Platform Barcode Reader has excellent capability of reading mobile payment bar codes,and the bar code reader adapts to a huge range of business applications just like retail,healthcare,inventory,medicine,hosputality,transport,logistics,utility,manufacturing,etc.
Physical Characteristics | |
Dimensions: | 137.40mm x 99.80mm x 96.50mm |
Weight: | 262.5g |
Voltage: | 5±5%V |
Current: | 235mA |
Work Curren | 315mA |
Starting Current | 320mA |
Performance Characteristics | |
Image (Pixels): | CMOS 840 pixels (H) x 640 pixels (V) |
Light Source: | (Aimer) Blue color LED; (Illumination) Red color LED |
Field of View: | 39°(H) X29°(V) |
Roll / Pitch / Yaw: | 360°(Roll), ±65°(Skew) , ±65°(Pitch) |
Print Contrast: | 20% minimum reflective difference |
Interfaces Supported: | USB |
Motion Tolerances: | >40cm/s |
Symbology Decode Capability | |
1-D: | Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post |
2-D: | PDF417, QR code, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc. |
User Environment | |
Operating Temperature: | -20°C to 60°C |
Storage Temperature: | -30°C to 70°C |
Humidity: | 5% to 95% relative hum idity,non-condensing |
Shock Specifications: | Designed to withstand 1.2m(5’) drops |
Ambient Light Immunity: | 0-100,000 Lux. |
Decode Ranges | |
Code39(5mil) | 0-7cm |
Code39(13mil) | 0-17cm |
QR(20mil) | 0-11cm |
Performance may be impacted by bar code quality and environmental conditions | |
