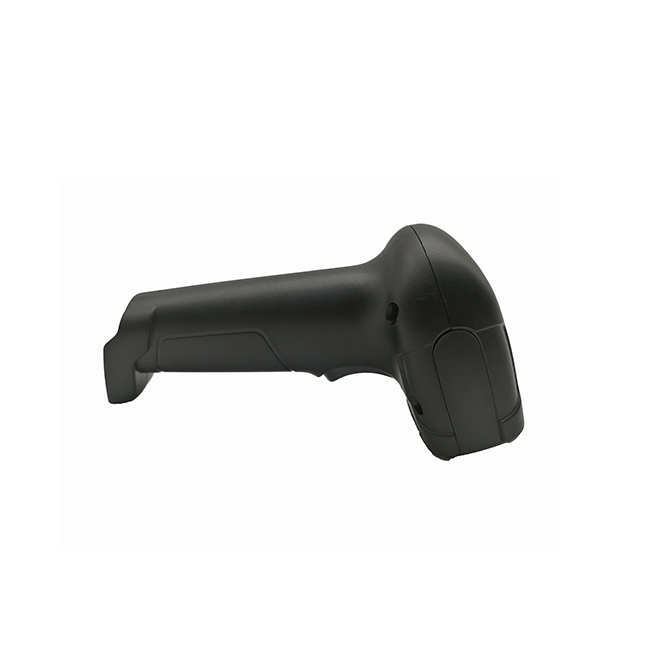

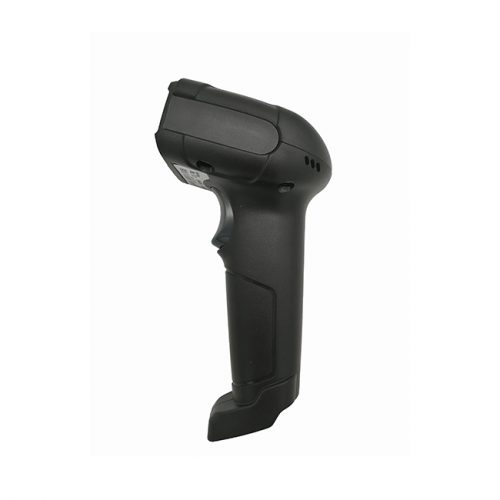

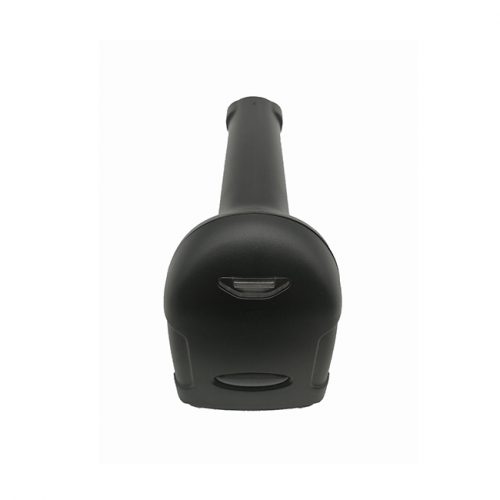

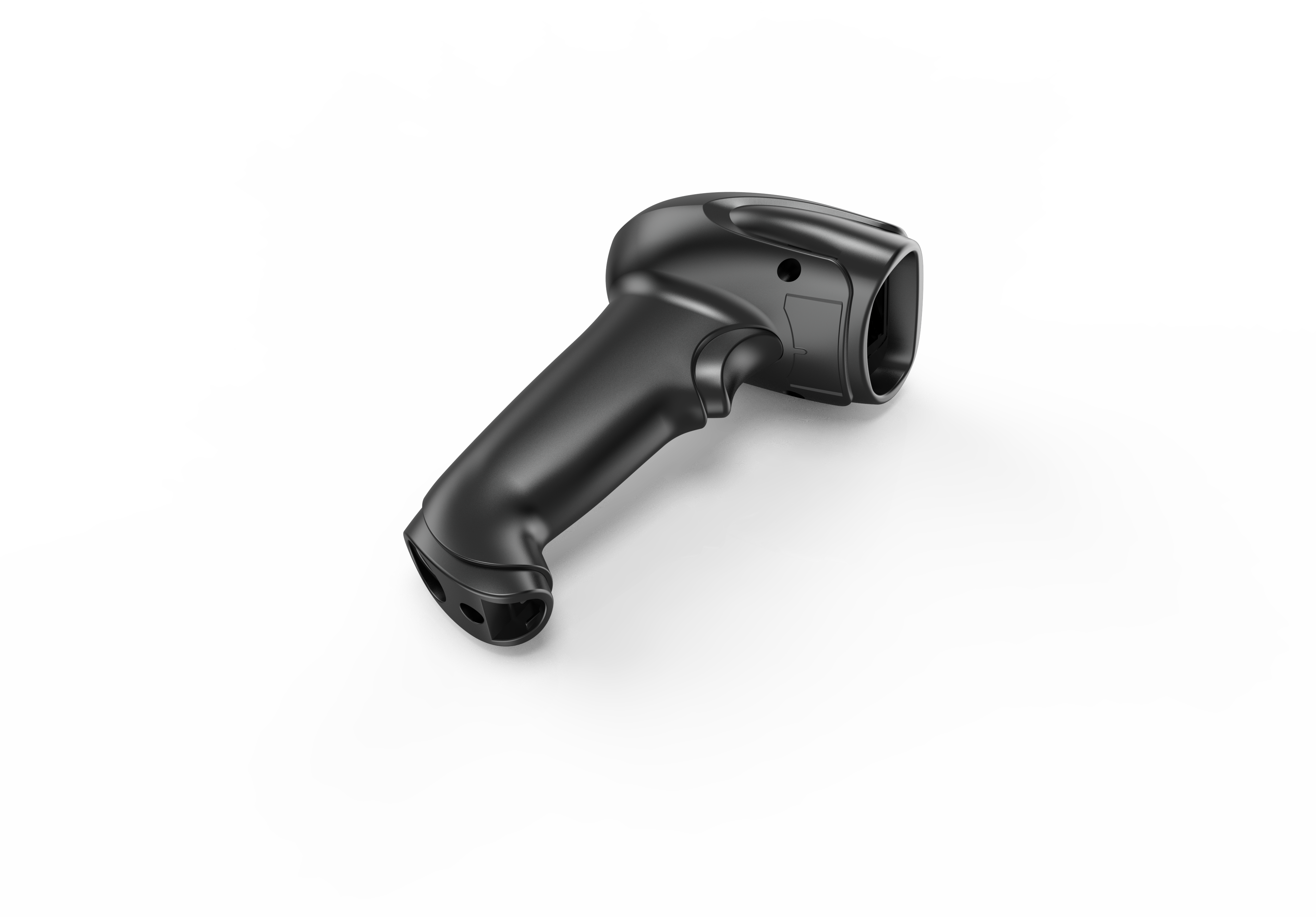

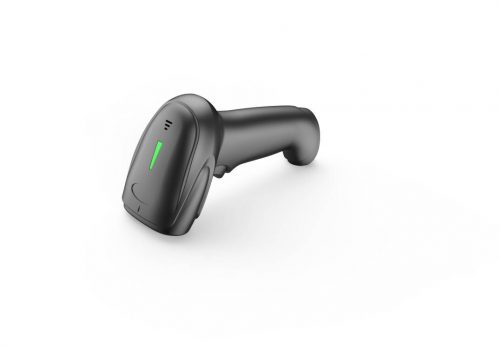

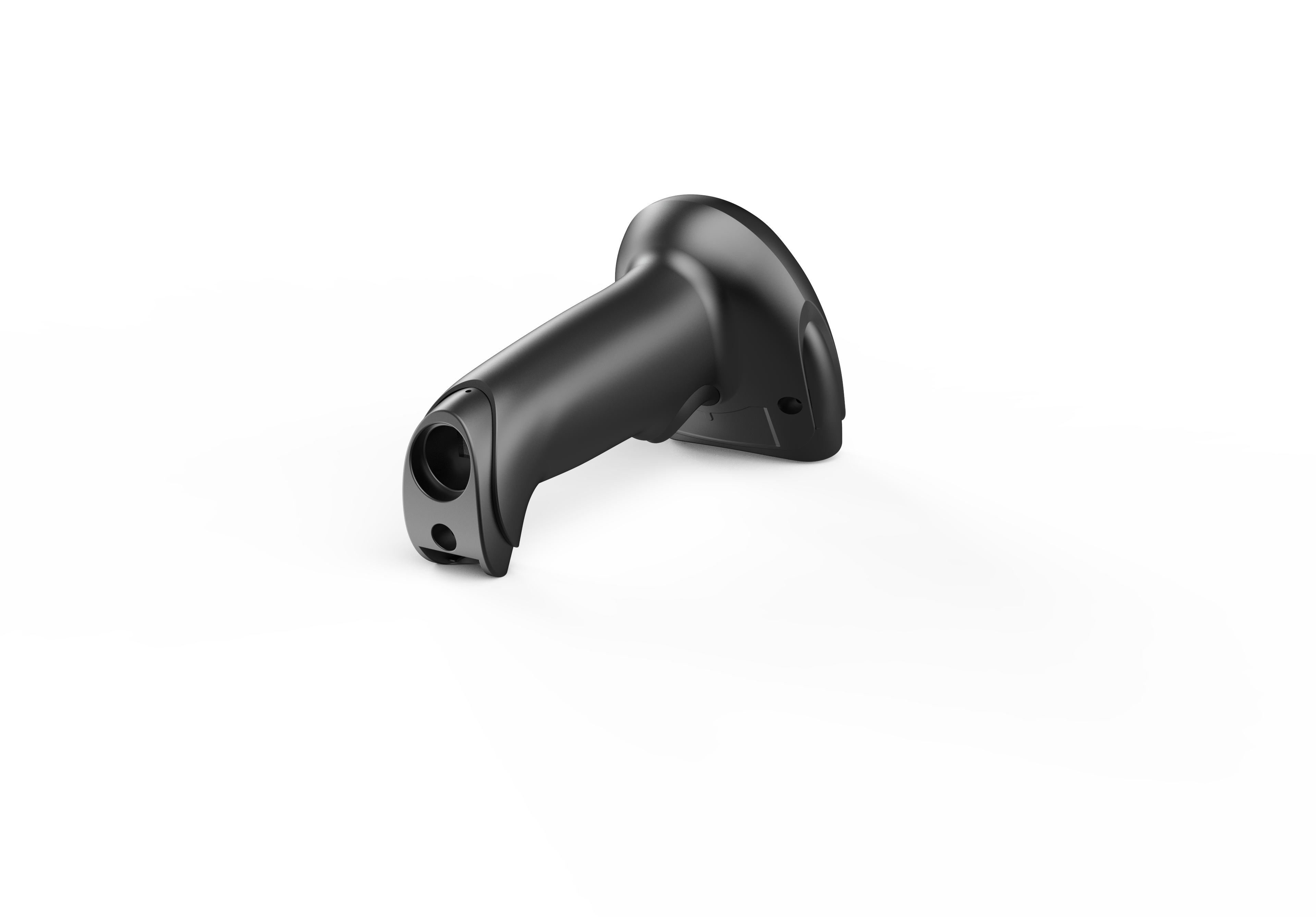

BT323 Wireless Bluetooth Barcode Scanner

  • Barcode scanner with wireless signal: 2.4 GHz bandwidth range, Bluetooth V2.0/V3.0/V4.0
  • Bluetooth Communication Distance 100m (in vacant space)
  • Barcode scanner built-in 512K memory can store more than 10000 EAN barcodes
  • The large capacity 2500mAh Lithium battery, More than 8 hours of operation, and 7 Days of standby
You are here:

Share this product

Description

BT323 Wireless BlueTooth Barcode Scanner is capable of 1d and 2d barcode scanning by automatic or manual reading method, and the 2d handheld barcode scanner has a max lithium battery of 2500mAh to maintain daily operation for more than 8 hours and standby of 7 days, and transfer data to a host pos pc in real-time for the fast processing of items to be applied for logistics industry or warehouse to satisfy the demands of items wireless scanning and convenient retail goods inventory management.

Shop Bluetooth scanners with fast shipping and ideal prices here.

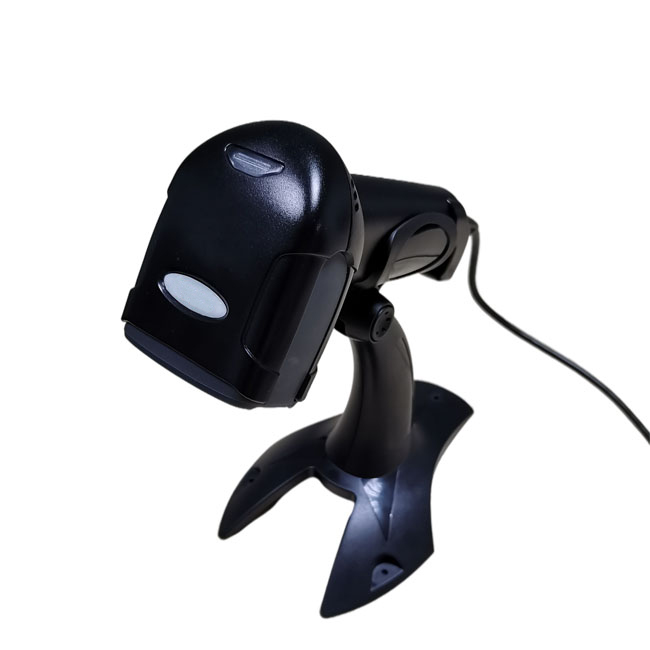

Other kinds of different platform barcode scanners and industrial barcode scanners, or wired barcode scanners are provided as options.

Scan Performance
Model
BT323
Scan mode
Automatic / Manual
Alarm mode
LED light alarm, Buzzer alarm
Light Source
(Aimer) Red color LED; (Illumination) White color LED
Read speed
300 scans/sec
Image (Pixels)
CMOS 640 pixels (H) x 480 pixels (V)
Scan angle
28°(Horizontal),20°(Vertical)
Scan depth of field
Code39(5mil): 40mm-210mm
Code39(13mil): 60mm-380mm
QR(20mil): 25mm-260mm
EAN-13(5mil): 55mm-170mm
Barcode type
1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of
5 IATA,Matrix 2 of 5,Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar
Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.
2D: PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post,Japan Post, MaxiCode, Codablock, Aztec, Dutch Post,
DataMatrix, etc.
Voltage
+4.2V±10% VDC
Battery capacity
2500mAh
Current
Starting Current:204mA,Stand-by Current:96mA,Work Current:226mA
Interfaces
2.4G, Bluetooth
Print Contrast
20% minimum reflective difference
Ambient Light Immunity
0-100,000 Lux
Operating temperature
-20°C ~ 60°C
Storage temperature
-30°C ~ 70°C
Humidity
5% to 95% relative humidity,non-condensing
Drop
Designed to withstand 1.5m(5’) drops
Dimensions (LxWxH)
159.99mm x 69.38mmx 107.61mm
Weight
188.5g
Color
black
Material
ABS + EVA
