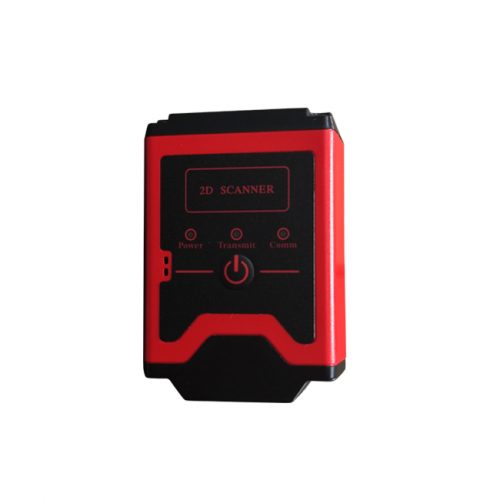

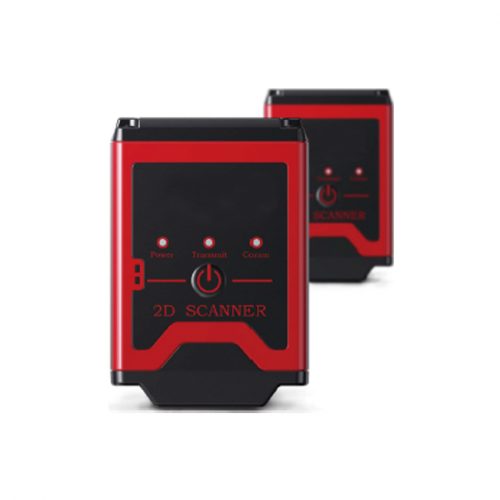

- VS100 Fixed Industrial Barcode Scanner
VS100 Fixed Industrial Barcode Scanner has an excellent capacity of scanning codes and compatibility, appropriate to kinds of business occasions such as being built-in delivery cabinet, modern logistics industry, SMT industry, and pharmaceuticals industry, and the fixed barcode scanner suits all popular interfaces in the market applications.
Fixed industrial scanners provide stable and reliable decoding performance to track & trace items from manufacturing to delivery. Fixed-mount industrial scanners automate the scanning process, decreasing the risk of missed scan results and trying to eliminate the necessity for every item to be manually scanned.
And industrial scanners are designed to provide intelligent scanning of barcodes encountered in actual businesses like poor quality or damaged bar codes.
If you want more details about industrial barcode scanners, contact us soon or download the product catalog to learn more.
Module NO. | VS100 Industrial Barcode Scanner | |
Image Sensor | Sensor | CMOS Sensor |
Resolution | ||
Frame Rate | 60fps | |
Lens | Focal Distance | Fixed Focal Distance |
Field of View | Horizontal Angle: 44° | |
Vertical Angle: 34 ° | ||
Light Source | Illumination | Red LED |
Aimer | Laser Aiming | |
Indicator | Power Led 、 Decoder Light | |
Symbology Decode | 1-D | Codabar、Code 39、 Code 32 Pharmaceutical (PARAF) 、 Interleaved 2 of 5、 NEC 2 of 5 、 Code 93、Straight 2 of 5 lndustial、 Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、 Code 128、 GS1-128、 UPC-A、 UPC-E 、 EAN八AN-8、 EAN/丿AN-13 、 MSI 、GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 GS1 DataBar Expanded、 China Post(Hong Kong 2 of 5) 、 Korea Post |
2-D | Codeblock A 、 Codeblock F 、 PDF417 、 Micro PDF41人 GS1 Composite Codes 、 QR Code 、 Data Matrix 、 MaxiCode 、 Aztec 、 HANXIN | |
Mini Accuracy | 4mil | |
Input & Output | 1 Optical Isolation Input | |
1 Optical Isolation Output | ||
Serial Communication | Communication Standard: Conform to RS232C Transmission Speed : 9600 、 19200 、 38400 、 57600 、 115200 bps | |
USB | Communication Standard: Conform to USB Standard Protocol | |
Rated Value | Voltage | SVDC±5% |
Current | Stand-by Current: 160mA | |
Operation Current: 260mA | ||
Power Consume | 1.3W | |
Environmental Resistance | Temperature | Operation temperature : 0 ~ +45°C |
Storage Temperature: -10 ~ +50°C | ||
Humidity | Relative Humidity: 5% ~ 85% (No condensation) | |
Storage Environment Humidity: 5% ~ 85% (No condensation) | ||
Protection | IP54 | |
Ambient Light | Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux | |
Fall | Withstand multiple 12m drops to the concrete floor (deflection allowed 5° ) | |
Machine | Dimensions | 74.0mm * 50.0mm * 26.2mm |
Weight | 98.5g | |
Shell material | PC | |
Certification | CE FCC RoHS IS09000 I0S9001 |
