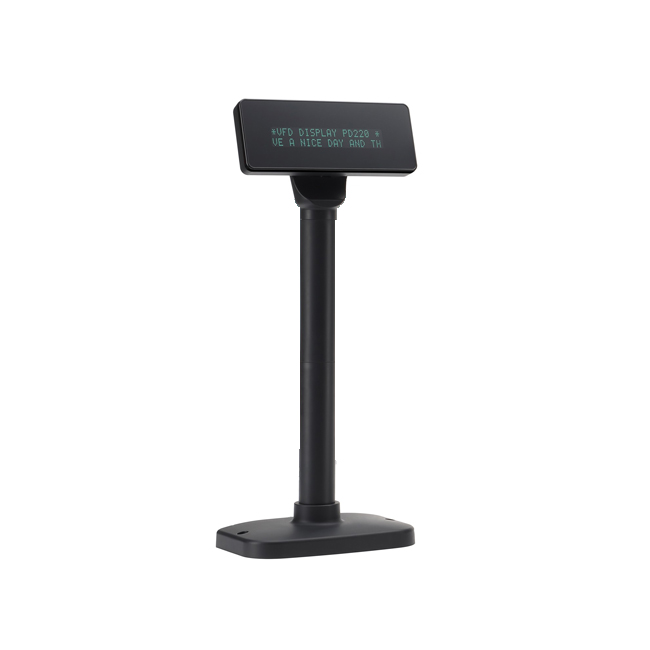

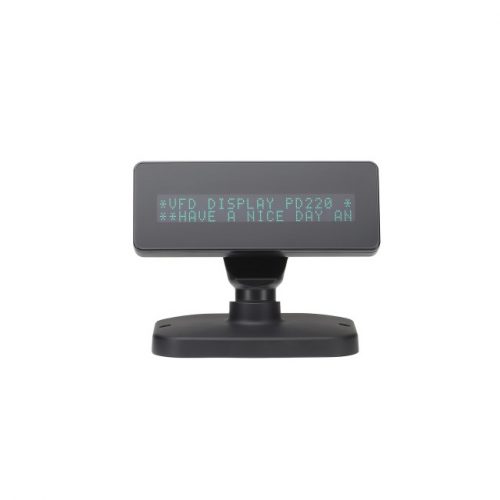

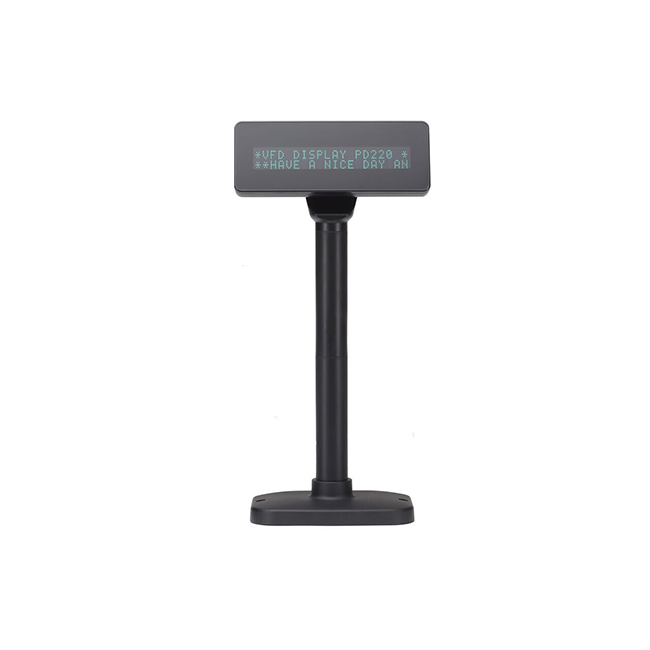

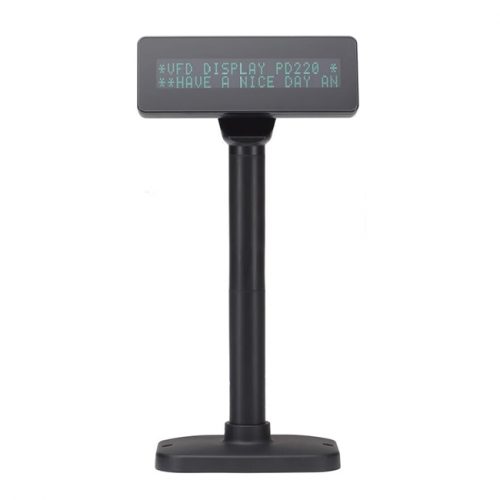

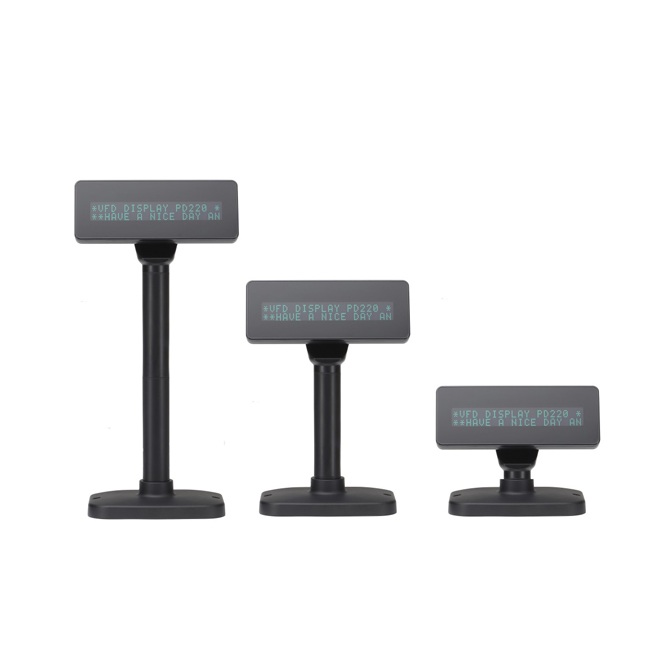

PD220V-II POS VFD Customer Display

  • VFD customer display monitor supports 11 command modes including EPSON etc.
  • Power supply from 5V to 24V to prevent any mindless use of improper power input.
  • 20-column x 2-line dot matrix in a wide viewing angle.
  • VFD pole display easy connectivity to a wide range of POS products.
  • VFD 220 customer display driver of OPOS/JPOS driver is standard.
You are here:

Share this product

Description

VFD Customer Display of pos system PD220V-II has 40 characters of 20-column x 2-line display dot matrix in a wide angle of view. This type of VFD display monitor is compatible with a considerable scope of pos products for your retail business demands.

VFD Pole Display referred to as adjustable customer display VFD can help your consumers with the order information for the pos system, which employs special display technology and unique circuit design to accomplish its consistency and reliability. And the VFD display pd220 driver is standard to OPOS/JPOS Driver compatible with your pos system options.

With interfaces optional of RS-232 and USB, the VFD pole display could imitate most command sets and has managed to improve visibility primarily owing to a Blue-Green display. The excellent feature is that the premium pole display is one of the most affordable prices on the cash register market.

If you desire to find the most appropriate VFD Display for your retail pos system, you could call VMAXPOS soon to ask for assistance or download the product catalog to get the details first.

General
Display Method
Vacuum Fluorescent Display(Blue-green)
Number of characters
40(20 columns x 2 lines)
Brightness
500-1000 cd/m2
Character font
5 x 7 dot matrix
Character type
95 Alphanumeric,32 International Characters
Character size
9.02(H) x 5.25(W) mm
Dot Size (X x Y)
0.86 x 1.05mm
Download characters
9 characters
Panel Dimension
220(W) x77.5(D) x 31H)mm
Pole Dimension
Per support leength:140(L) x 34.5(Dia)mm
Base Dimension
169.5(W) x98.5(D) x39(H)mm
Viewing Angle
Max.90°
Horizontal Rotation
Max.355°
Weight
Approx.980 grams
Commands Mode
UITMATE,LD220,EPSON POS D101,AEDEX,UTC/S,UTC/P, ADM788,DSP800,CD5220,EMAX,LOGIC CONTROL
Language Support
FRANCE、GERMANY、U.K、DENMARKI、SWEDEN、ITALY SPAIN、JAPAN、NORWAY、DENMARKII、SLAVONIC
、RUSSIA、Portuguese、Canadian French、Nordic、Turkish、Greek、West European Latin
Interface
RS-232 (serial) /USB
Baud
Direct connection 9600 or 19200bps
MTBF
30000 hours
Consumption
5-12 VDC
EMC standards
FCC, CE
