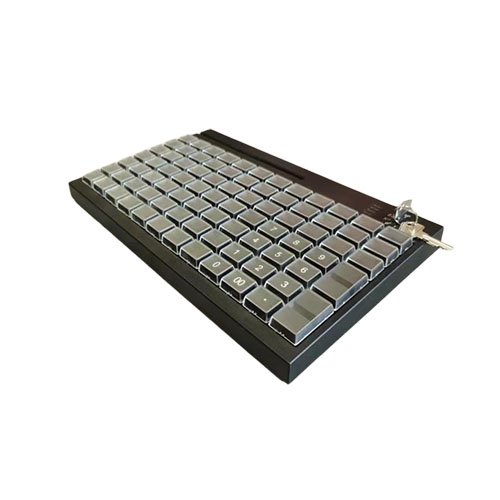

KB84 84 Keys USB POS Programmable Keyboard
- Waterproof membrane switch, Service life 12 million times.
- POS Programmable Keyboard supports firmware online upgrades.
- The software adaptation platform supports USB programming for Windows ME/9X/2K/XP/7/8/10/11.
- All data can be retained for EEPROM without additional battery.
- With PS/2 keyboard expansion port.
- POS Programmable Keyboard with Electronic Lock and Magstripe Card Reader optional.
Share this product
Description
KB84 84 Keys USB Programmable Keyboard can be combined with Electronic Lock and Magstripe Card Reader for POS Systems, and the POS programmable keyboards enable you to access multiple lines of info with such a single keystroke, minimizing systematic errors and accelerating repeatable tasks at the businesses conditions.
The USB Programmable Keyboard supports firmware online upgrades to meet the user’s differentiated needs in the point-of-sale, and the software adaptation platform supports USB programming for Window ME/9X/2K/XP/7/8/10/11 and all the data can be stored in the EEPROM without any other battery.
Whatever you need to enhance your point-of-sale system with all kinds of pos machines, you could call to speak with us for more help.
| Model No. | KB84 |
| Type | POS Programmable Keyboard |
| Main Features | |
| Number of keys | 84 keys |
| Key type | Waterproof membrane switch, Service life 12 million times |
| Key-stroke | 4.0±0.5mm |
| Key strength | 60±20cN |
| Interface / Power（RJ45） | PS/2 : +5VDC±10%/<100mA |
| USB : +5VDC±10%/<100mA | |
| Indicator/Buzzer | Power、Num、Caps、SCR、MSR Sound and light prompt |
| Support firmware online upgrade | Convenient to meet the user’s differentiated needs |
| Programmable Features | |
| Number of programmable keys | All keys |
| Mult- layer programming | Max. six-layer, Facilitate permission management |
| Time delay programming | 1ms-500ms optional Can be inserted at any position |
| Software adaptation platform | Support USB programming for Window ME/9X/2K/XP/7/8/10/11 |
| Data storage | All data can be retained for EEPROM without additional battery |
| Magstripe Reader Features | |
| Card Standard | Comply with IOS7812, IBM standards, AAMVA, JIS-2 |
| Programmable | Track, Prefix, and Suffix characters, Return |
| Card Track | Track 1 : 210BPI,max 76 characters |
| Track 2 : 210BPI,max 107 characters/75BPI,max 37 characters | |
| Track 3 : 210BPI,,max 107 characters | |
| Swipe speed and Magnetic head life | 10~180cm/sec./50 million times |
| Other | |
| Electronic Lock | Support 6-seg. lock to meet permission management |
| Operation | Temperature:0°C~50°C(32°F~122°F),Humidity:10%~90% |
| Storage | Temperature:-20°C~50°C(-4°F~131°F)Humidity:10%~90% |
| Physical Parameters | Dim./Weight : 300(L)*185(D)*44(H)mm,including MSR/1104.5g(NW) |
| Box./Weight : 385(L)*196(D)*57(H)mm,including 1330.6(GW) | |
| Parts | Interface Cable: RJ45Y(USB&PS/2), Keycap Pull ring，1.25 Keycap, Elec. Lock key |
| With PS/2 keyboard expansion port | |
