RAM & SSD
- Outstanding performance, higher frequency for RAM & SSD
- Selected original chip, Strict digit test, Original A+ grade DRAM chip, longer endurance
- Abrasion Resistant Gold Finger, Anti-oxidant, Contact stability
- Perfect compatibility provides you with superior memory quality and stability in a running system
Share this product
Description

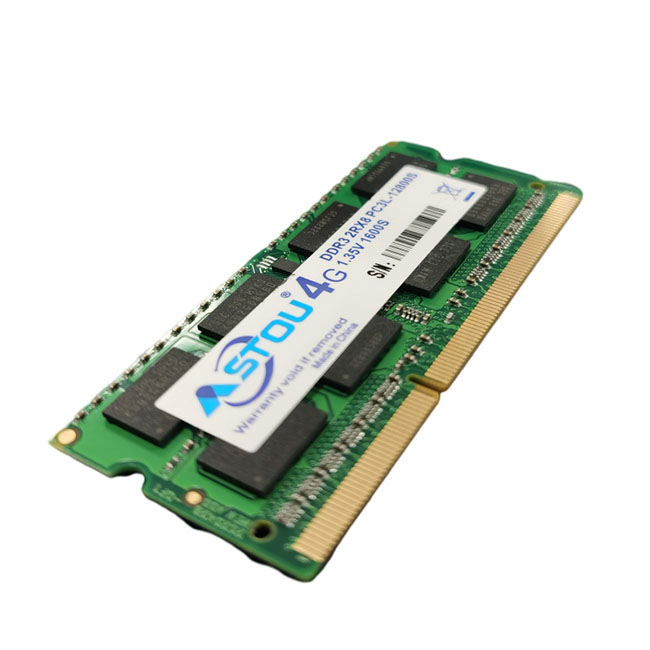

RAM
| Model | 4G DDR3 HY | 4G DDR4 Micron | 4GD3-YK008S | 8GD3-YMA16S |
| Size | 133.55*18.69 mm± 0.1mm | 133.35*31.25 ± 0.1 mm | 67.6*30*1.27 mm | 67.6*30*1.27 mm |
| Interface type | UDIMM | UDIMM | UDIMM | UDIMM |
| Capacity | 4GB | 4GB | 4GB | 8GB |
| Memory speed | 1600 MHz | 2400MHz | 1600MHz | 1333MHz,1600MHz |
| Voltage | 1.35 V | 1.2 V | 1.35 V | 1.35 W |
| PCB color | Green/Black(optional) | Green/Black(optional) | Green/Black(optional) | Green/Black(optional) |
| Chip brand | HYNIX | Micron | Samsung | Samsung |
| Chip Density | 256M*8 | 512Mx8 | 512Mx8 | 512Mx8 |
| Chip packge | FBGA | FBGA | FBGA | FBGA |
| Chip qty | 2R*8 | 1R*8 | 1R*8 | 2R*8 |
| Operating Temperature | 0°C- 85 °C | 0°C- 85 °C | 0°C- 85 °C | 0°C- 85 °C |
SSD
| Model | M.2 NGFF | ||||
| Capacity | 64G | 128G | 256G | 512G | 1TB |
| Available Capacity | 59.62GB | 119.24GB | 238.47 | 476.94GB | 953.86 |
| Flash type | Samsung | Samsung | Samsung | Samsung | Samsung |
| Controller | SMI2258XT | SMI2258XT | SMI2258XT | SMI2258XT | SMI2258XT |
| R / W(MB/s) | 300/250 | 480/420 | 480/450 | 480/460 | 500/460 |
| Random R/W IOPS | 36105/65123 | 32586/74023 | 44796/72267 | 42785/70837 | 42785/70837 |
| Power Supply | 3.3V+5% | 3.3V+5% | 3.3V+5% | 3.3V+5% | 3.3V+5% |
| Standby | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W |
| Write endurance: | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day |
| MTBF | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours |
| Operation temperature | 0~75℃ | 0~75℃ | 0~75℃ | 0~75℃ | 0~75℃ |
| Vibration | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) |
| Shock | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms |

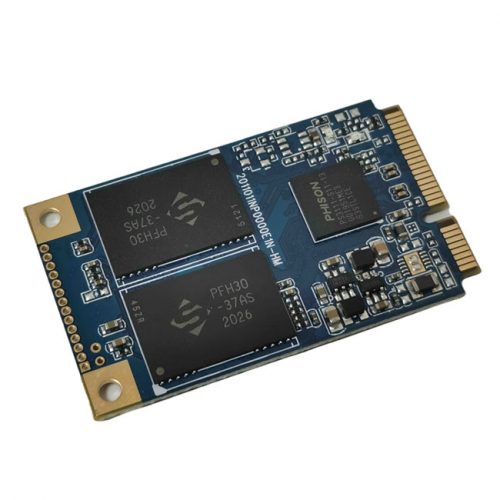

| Model | mSATA | ||||
| Capacity | 64G | 128G | 256G | 512G | 1TB |
| Available Capacity | 59.62GB | 119.24GB | 238.47 | 476.94GB | 953.86 |
| Flash type | Intel / Micron | HYNIX | HYNIX | Intel / Micron | Intel / Micron |
| Controller | Phison:PS3111 | Phison:PS3111 | Phison:PS3111 | Phison:PS3111 | Phison:PS3111 |
| R / W(MB/s) | 480/220 | 480/320 | 480/360 | 480/450 | 490/450 |
| Random R/W IOPS | 44796/40133 | 32586/64023 | 44796/65267 | 42785/70837 | 42785/70837 |
| Power Supply | 3.3V+5% | 3.3V+5% | 3.3V+5% | 3.3V+5% | 3.3V+5% |
| Standby | 0.3W | 0.3W | 0.3W | 0.3W | 0.3W |
| Write endurance: | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day |
| MTBF | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours |
| Operation temperature | 0~75℃ | 0~75℃ | 0~75℃ | 0~75℃ | 0~75℃ |
| Vibration | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) |
| Shock | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms |
| Model | 2.5” | |||
| Capacity | 128G | 256G | 512G | 1TB |
| Available Capacity | 119.24GB | 238.47 | 476.94GB | 953.86 |
| Flash type | Samsung | Samsung | Samsung | Samsung |
| Controller | Realtek:1135E | Realtek:1135E | Realtek:1135E | Realtek:1135E |
| R / W(MB/s) | 480/420 | 480/450 | 480/460 | 500/460 |
| Random R/W IOPS | 32586/74023 | 44796/72267 | 42785/70837 | 48785/70837 |
| Power Supply | 5V+5% | 5V+5% | 5V+5% | 5V+5% |
| Standby | 0.3W | 0.3W | 0.3W | 0.3W |
| Write endurance: | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day | 3years @ 100G write/day |
| MTBF | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours | >2,000,000 hours |
| Operation temperature | 0~75℃ | 0~75℃ | 0~75℃ | 0~75℃ |
| Vibration | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) | 15G (10 to 2000Hz) |
| Shock | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms | 350G at 0.5ms |
