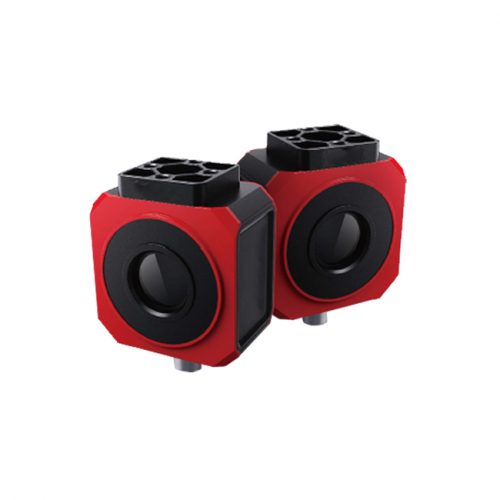

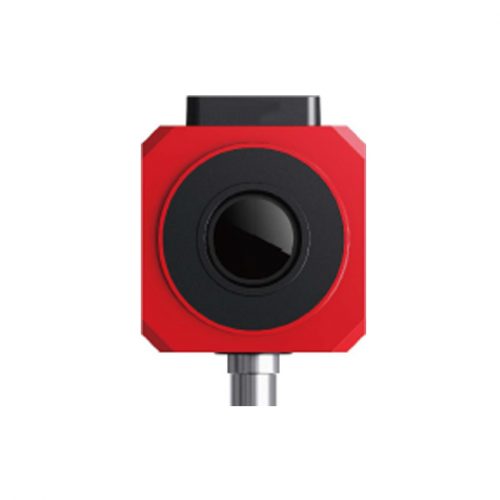

VS600 Industrial Vision Sensor OCR Reader
- Powerful reading and decoding efficiency
- Powerful detection function of industrial vision sensor
- Stable OCR recognition system,easily recognize OCR characters on ID cards, passports, masks, cigarettes, invoices, PCB boards, and metal parts.
- Industry specific support,AGV navigation reader,built-in reading algorithm can effectively read DM-12 and DM-14 codes
Share this product
Description
VS600 compact industrial vision sensor is equipped with the fixed focus and comprehensive error proof checking algorithm,which is implanted with high-precision positioning and measurement algorithms.
There are excellent breakthroughs in hardware and software for industrial vision sensor,such as algorithm optimization and hardware upgrading,memory and capacity increased by several times, and the efficiency of reading and decoding increased by more than 2 times.
| Module NO. | VS600 | |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 1920 X 1080 | |
| Frame Rate | 60 fps | |
| Lens | Focal Distance | fixed focus |
| Field of View | Horizontal Angle : 105.8° | |
| Vertical Angle : 71.1 ° | ||
| Light Source | Floodlight | White LED (Optional Blue LED and Red LED) |
| Indicator | Red LED,Blue LED,Yellow LED | |
| Visual Tools | With or Without | pattern,circle,spot,line,edge |
| Count | Spot count, edge count, pattern count | |
| Recognition | OCR identification,code identification | |
| Mini Accuracy | ≧4mil | |
| Input & Output | 1 photoelectric isolated inputs | |
| 1 photoelectric isolated outputs | ||
| Ethernet | Communication standard 100BASE-TX ; Support protocol TCP/IP | |
| RS485 | Asynchronous half duplex | |
| Rated Value | Voltage | 24V DC±10% |
| Current | Stand-by Current : 120mA | |
| Operation Current : 500mA | ||
| Power Consume | 12W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45°C |
| Storage Temperature : -10 ~ +50°C | ||
| Humidity | Relative Humidity : 5% ~ 85% (No condensation) | |
| Storage Environment Humidity : 5% ~ 85% (No condensation) | ||
| Protection | IP54 | |
| Ambient Light | Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux | |
| Fall | Withstand multiple 1.2m drops to the concrete floor (deflection allowed 5° ) | |

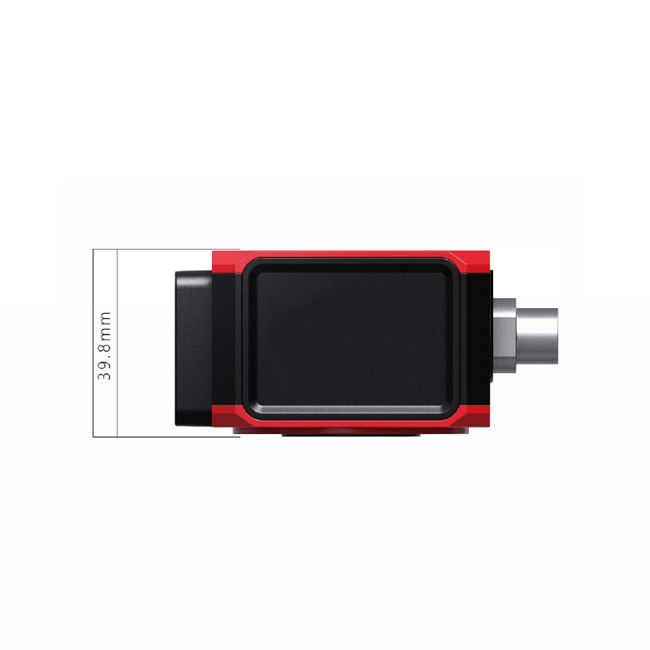

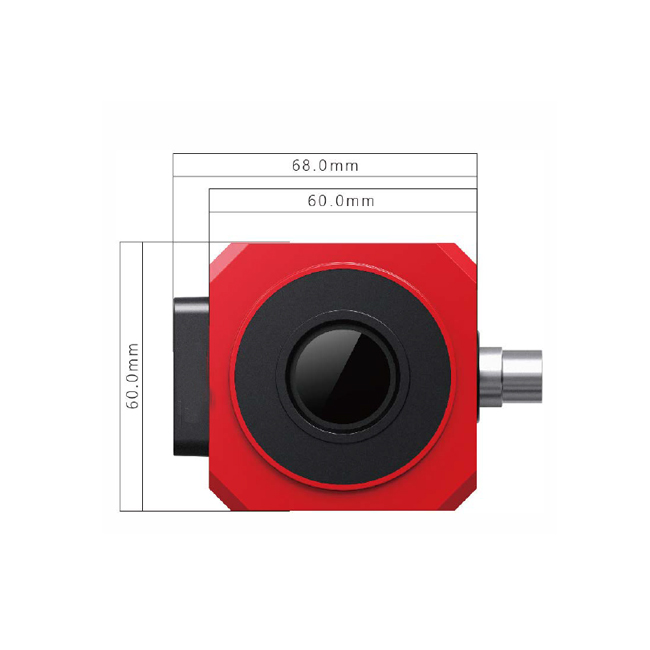

| Machine | Dimensions | 60.0mm x 68.0mm x 39.8mm |
| Weight | 240g | |
| Shell material | aluminium alloy | |
| Certification | CE FCC RoHS ISO9000 IOS9001 |
