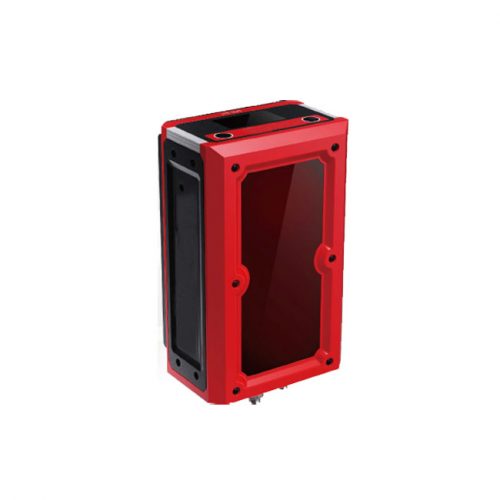

VS220 Autofocus Industrial Barcode Reader
- Industrial barcode reader lens has a large depth of field able to adapt to different sizes and different shapes of the workpiece on the barcode reading
- Large scanning range, up to 13 million pixels to achieve high precision while achieving extremely wide scanning surface
- Industrial barcode reader built-in LED light source can ensure sufficient brightness within the scanning range without external lighting
- Support a variety of interfaces and connection methods
Automatic lock bar code for reading greatly improves the stability of reading
Share this product
Description
VS220 Autofocus industrial barcode reader is one type of logistics warehouse automation artifact that has a large field of view, large depth of field, and high-speed scanning capability, which supports a variety of interfaces and connection methods for multiple decoding and steadily reading barcodes to be employed into manufacturing, industrial automation,medical production logistics, and warehousing.
And the industrial barcode reader has a large depth-of-field lens, available to adapt to different sizes and different shapes of the workpiece on the barcode reading. Owning the LED light source can support the function that no external lighting can also ensure adequate brightness within the scanning range.
The industrial barcode reader supports multi interfaces and connection ways, and you could contact us for further communication or download the product catalog for a preview of the industrial barcode reader.
| Module NO. | VS220 | |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 3840 X 2160 | |
| Frame Rate | 30 fps | |
| Lens | Focal Distance | automatic focusing |
| Field of View | Horizontal Angle: 39° | |
| Vertical Angle: 33 ° | ||
| Light Source | Illumination | White LED |
| Aimer | Green LED | |
| Indicator | Red LED, Green LED | |
| Symbology Decode | 1-D | Codabar、 Code 39、 Code 32 Pharmaceutical (PARAF) 、 Interleaved 2 of 5、 NEC 2 of 5、 Code 93、Straight 2 of 5 lndustial、 Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、 Code 128、 GS1-128、 UPC-A、 UPC-E、 EAN/JAN-8、 EAN/JAN-13、 MSI, GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 GS1 DataBar Expanded、 China Post(Hong Kong 2 of 5) 、 Korea Post |
| 2-D | Codeblock A、 Codeblock F、 PDF417、 Micro PDF417、GS1 Composite Codes、 QR Code、 Data Matrix 、 Max,Code、 Aztec、 HANXIN | |
| Mini Accuracy | ≧3mil | |
| Input & Output | 3 photoelectric isolated inputs | |
| 4 photoelectric isolated outputs | ||
| Serial Communication | Communication Standard: Conform to RS232C Transmission Speed : 9600 、 19200 、 38400 、 57600 、 115200 bps | |
| Ethernet | Communication standard 100BASE-TX; Support protocol TCP/IP | |
| USB | Communication Standard: Conform to USB Standard Protocol | |
| Rated Value | Voltage | 24V DC±10% |
| Current | Stand-by Current: 200mA | |
| Operation Current: 3500mA | ||
| Power Consume | 84W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45°C |
| Storage Temperature: -10 ~ +50°C | ||
| Humidity | Relative Humidity: 5% ~ 85% (No condensation) | |
| Storage Environment Humidity: 5% ~ 85% (No condensation) | ||
| Protection | IP54 | |
| Ambient Light | Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux | |
| Fall | Withstand multiple 1.2m drops to the concrete floor (deflection allowed 5° ) | |

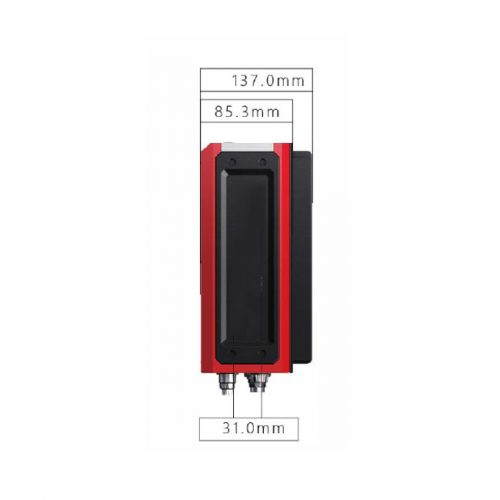

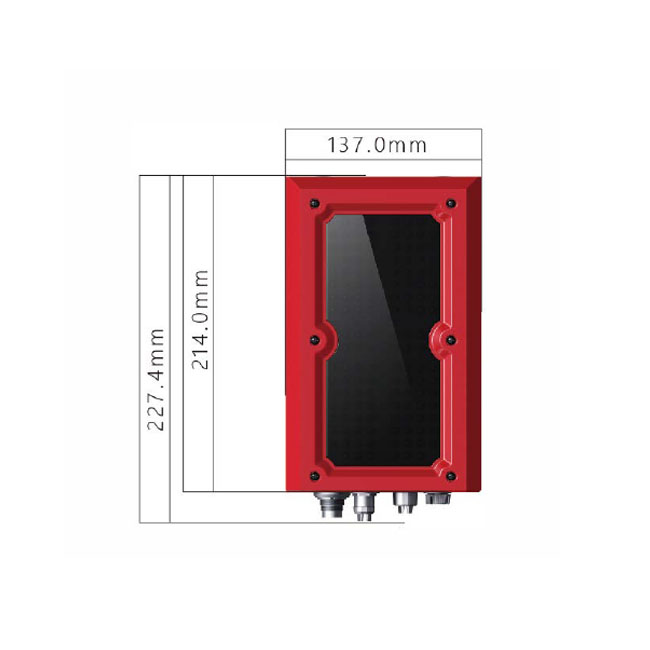

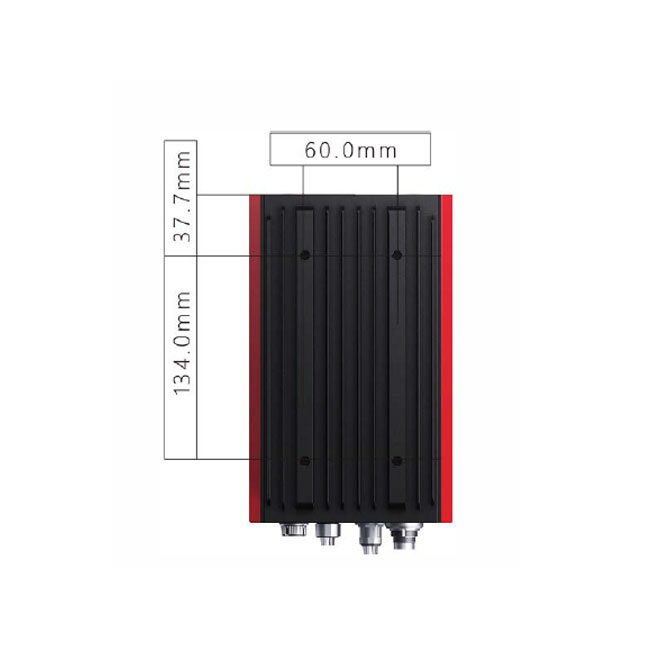

| Machine | Dimensions | 137.0mm x 227.4mm x 107.3mm |
| Weight | 650g | |
| Shell material | aluminum alloy | |
| Certification | CE FCC RoHS ISO9000 IOS9001 |
