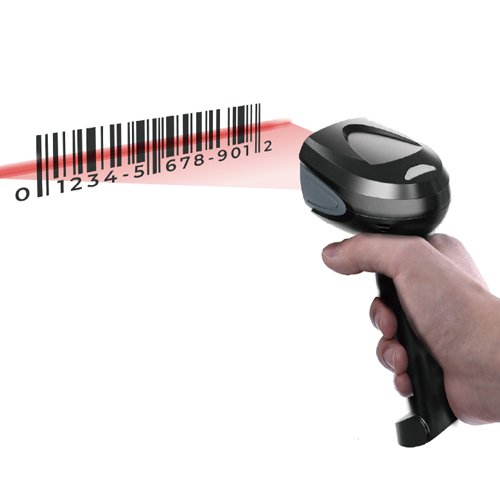

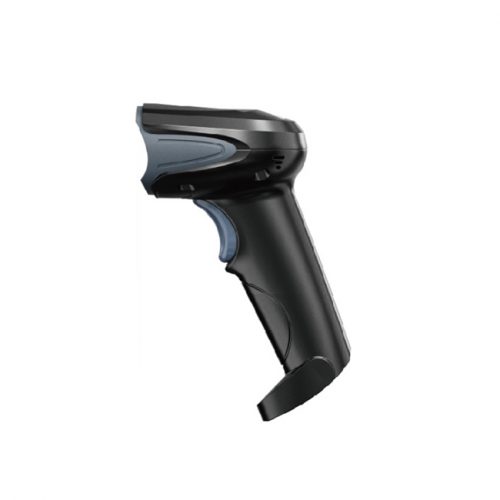

VS400 Compact Handheld Bar Code Scanner
- Compact design : Centralized installation of internal critical components greatly reduces the possibility of error.
- Super protective performance : Handheld bar code scanner can withstand 50 drop tests at a height of 1.2 meters.
- HD lens, reading ability of high precision code : Read the bar code on the surface of complex workpiece quickly and accurately.
- HP lens, reading codes of standard distance : Being more universal,able to apply thousands of industrial production lines,can also meet the daily use of retail stores.
Share this product
Description
The VS400 industrial handheld bar code scanner uses high-quality CMOS sensors to achieve large depth of field and fast code reading capabilities,and the reading capability of inferior bar codes is also greatly improved,which can read various difficulty of distorted barcode on curved surface,bar code engraved on concave & convex surface,and metal stipple barcodes.

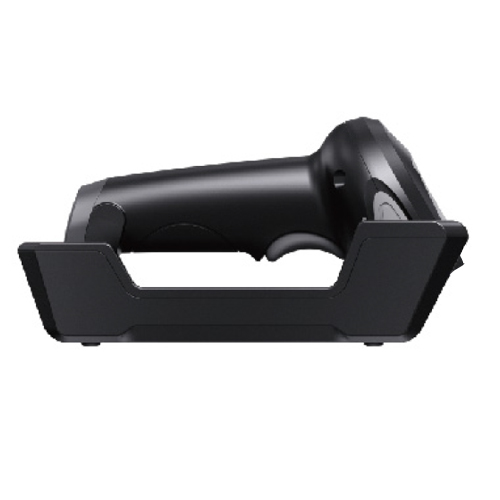

| Module No. | VS400 | (Optional wireless section VS402) |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 1280 X 1024 | |
| Frame Rate | 60fps | |
| Lens | Focal Distance | Fixed Focal Distance |
| Field of View | Horizontal Angle: 44° | |
| Vertical Angle: 34° | ||
| Light Source | Illumination | White LED (Optional Red and Blue LED) |
| Aimer | Red LED | |
| Indicator | Decoder Light | |
| Symbology Decode | 1-D | Coda bar 、 Code 39 、Code 32 Pharmaceutical (PARAF) 、Interleaved 2 of 5、NEC 2 of 5、 Code 93 、Straight 2 of 5 lndustial、Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、Code 128 、 GS1-128 、UPC-A, UPC-E、 EAN/JAN-8 、EAN/JAN-13 、 MSI 、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、 China Post(Hong Kong 2 of5) 、Korea Post |
| 2-D | Codeblock A 、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes 、QR Code、Data Matrix 、 MaxiCode、Aztec 、HANXIN | |
| Mini Accuracy | ≥4mil | |
| Input & Output | Serial Communication | Communication Standard: Conform to RS232 C |
| Transmission Speed：9600 、 19200 、 38400 、 57600 、 115200 bps | ||
| USB | Communication Standard: Conform to USB Standard Protocol | |
| Rated Value | Voltage | SVDC ±5% |
| Current | Stand-by Current : 160 mA | |
| Operation Current : 380 mA | ||
| Power Consume | 19W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45℃ |
| Storage Temperature : -10 ~ +50℃ | ||
| Humidity | Relative Humidity : 5% ~85% (No condensation） | |
| Storage Environment Humidity: 5% ~85% (No condensation） | ||
| Protection | IP54 | |
| Ambient Light | Sunshine:10000lux、Nncandescent:6000lux、Fluorescent:2000lux | |
| Fall | Withstand multiple 12m drops to the concrete floor (deflection allowed 5° ) | |
| Machine | Dimensions | 163.06mm x 106.23mm x 69.45mm |
| Weight | 147.5g | |
| Shell material | PC | |
| Certification | CE FCC RoHS ISO9000 IOS9001 |
