BT330H 2D Wireless Imager Scanner

  • Support Android IOS、LINUX、XP、Win7、Win8、Win10 based on your demands.
  • Imager scanner customized contents like commodity code,goods name,unit price,total prices on the display module.
  • Wireless imager scanner shows information as plain as print for time,link state,storage…

You are here:

Share this product

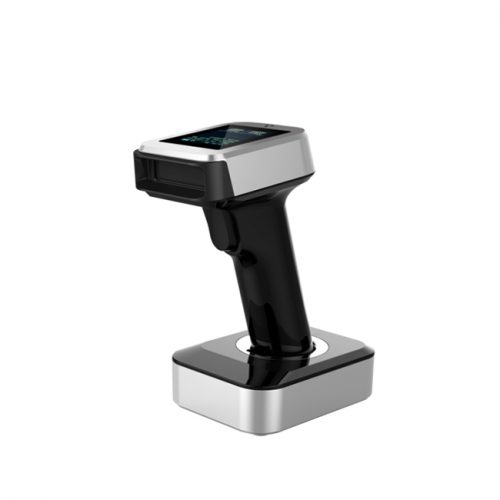

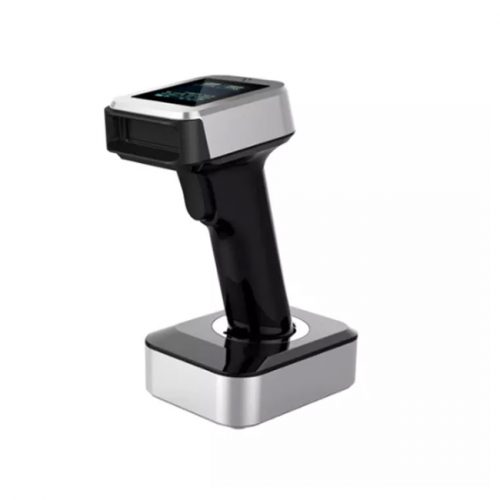

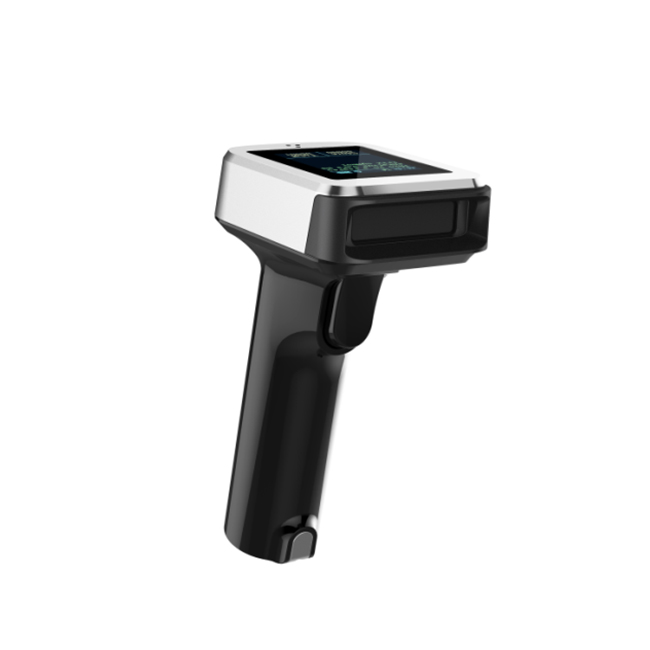

BT330H 2d wireless imager scanner with Bluetooth supports Android IOS、LINUX、XP、Win7、Win8、Win10 according to specific demands and combines wireless design with superior performance, which is ergonomically designed to increase productivity and lessen fatigue with the availability of cables-free.

And the handheld Bluetooth imager scanner can be greatly ideal to be used for scanning commodity codes in retail stores or label codes in warehouse inventory management because the cordless imager scanner with a display screen can display pivotal information such as order details, price, quantity, commodity code, category, etc, or other information retailers intend to display.

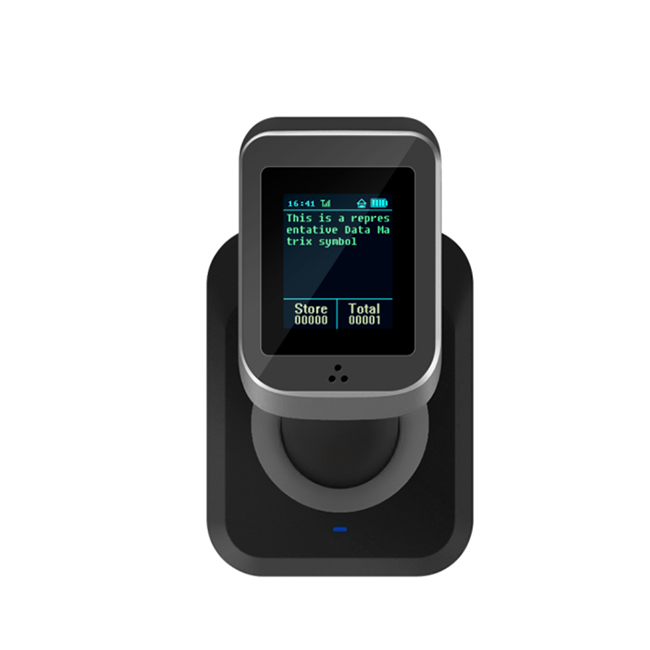

The cordless imager scanner with an exclusive led display design can show the connection status, total scanning and stored barcodes, battery level, operation mode, and editable area of the commodity code, commodity name, commodity price, and current date, offering the most operatable space to be customized for supermarkets, shopping malls, cosmetic stores, the retail shops, the postal industry, logistics, banks, and medical institutions.

Meanwhile, the bluetooth imager scanner is created in the wireless design to offer usage of cables-free in order to make the counter clean and tidy.

For any customized functions of barcode scanners, you could download the total product catalog for preview or get more with Vmax’s assistance to enhance your retailers’ experience.

Decoding chip:
ARM Cortex 32 bits
Scanning module resolution
640×480 CMOS
LED light、Buzzer、Vibration(Optional)(Positioning the light source wavelength)
Ambient Light:
0 ~100000LUX
The angle of scanning:
Rotation 360°
Print Contrast:
≥ 25%
Oblique view:
Skew ± 55° Pitch ± 55°
Scanning speed
Bluetooth range
Bluetooth 4.1Module:
Bluetooth wireless distance of around 10~15m Indoor environment, In an open environment, could be up to 20m;
2.4G wireless distance around 20~30 indoor environment, In an open environment around 100m
OS compatibility
Android IOS、LINUX、XP、Win7、Win8、Win10
16Mb (can store barcodes more than 50,000pcs acorring barcode types).
Input Voltage:
Working Current:
95mA±5%, Screen+20mA
Standby Current:
Charging time:
≤4 hours
Standby time:
>30 days
Battery Capacity:
Decode Types:
2D: QR code,MaxiCode, MicroPDF417,PDF417,Maxi code,AZTEC etc.
1D:EAN,UPC,Code39,Code 93, Code 128/EAN128, Codabar, Codablock, Code 11, Dutch Post, , Interleaved 2 of 5, ITF-6,ITF-4,ISSN,
MSI-PLESSEY, GSI DATABAR, GSI COMPOSITE CODE, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, etc.
Ingress Protection:
Drop Resistance:
Resist several times 1.5m drops to concrete.
Working temperature:
0℃ ~ +50 ℃
Storage Temperature:
-40℃ ~ +70 ℃
5% to 95% relative humidity (no condensation).
Weight:    (With package)
case material
Imager Scanner, 2.4G dongle, USB cable, Neutral manual
