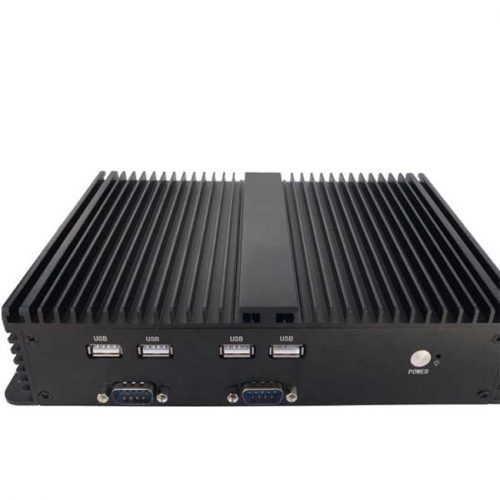

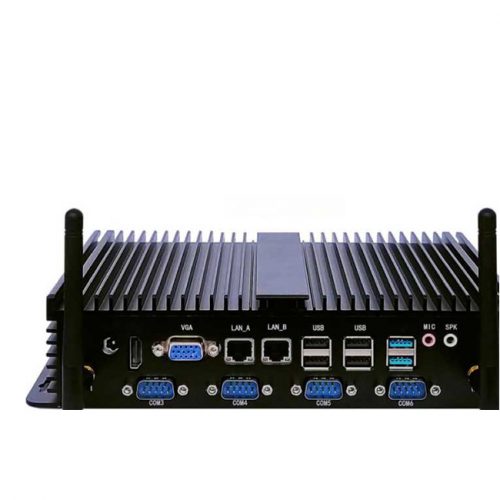

PB0305A POS Systems Mainframe Box PC

  • Pos system mainframe with Die-Casting Aluminum Housing
  • Fanless and Silent
  • Low Power Consumption
  • Box Pc perfect for reception areas, kiosks, and workspaces with limited space
You are here:
Category: SKU: PB0305A Tags:

Share this product


PB0305A  POS System Mainframe Box Pc has featured in cutting edge industrial enclosure design with low power consumption, and all of the processing was done on the box pc mainframe without any trouble, and the mini box PC is Ideal for reception areas, kiosks, and workspaces with limited space, which requires a mounted but compact desktop computer for the counter cash register.

ModelPB0305ACase size215mm*150mm*52mm
Mainboard4inch mainboard M500SEMainboard size165mm*115mm*18mm
ChipsetBroadwell-U High speed chipset
Power Supply1*DC IN12V5A or above power supply is recommended
Memory1*NB-DDR3 1333/1600MHz up to 8GB
Display FunctionM500SEIntel HD Graphics 5500 Graphic controllerSupport single screen display, dual screen display replication, double display expansion, single display under DOS
1*VGADB15portSupports the highest resolution1920*1200@60HZ
1*HDMI 1.4portSupport 4K resolution: 4096/3840*2160@24/30HZ


2*LANRTL8111H Gigabit network card chip
1*Mini-PCIEportOptional: WlFI/3G/4G/Bluetooth and so on
Hard disk Function1*SATA1portStandard SATA3.0Hard disk interface. Maximum transmission speed 6.0 Gbps
1*MSATA portSupport MINI SATA disc, support MSATA3.0
Voice FunctionIntegrate Realtek ALC662 HD Digital audio decoder
1*LINE OUT portSupport audio output (green)
1*MIC IN portSupport microphone input (pink)
USB Function2*USB3.0 portUSB3.0port
4*USB2.0 portFont USB2.0 (The number varies with the LAN port)
4*USB2.0 portRear USB2.0
Switch Function1*P0WER buttonswitch button
Other I/O6*C0M portCOM port, COM1 support RS232/RS422/RS485 (option)
Operating EnvironmentWorking temperature: ・20°C~60°C;

Working humidity: 5%~95% relative humidity

Operating SystemSupport Windows 10, Windows 8, Windows 7, Linux and so on
