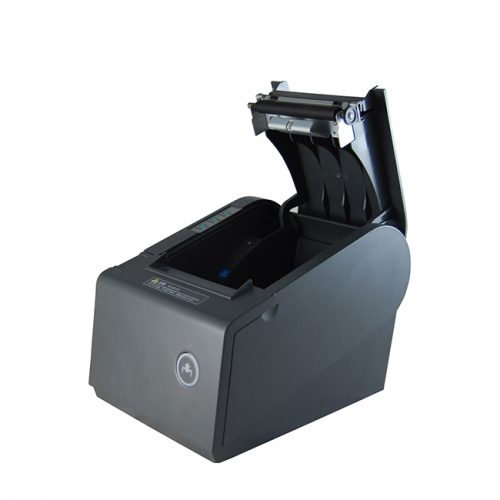

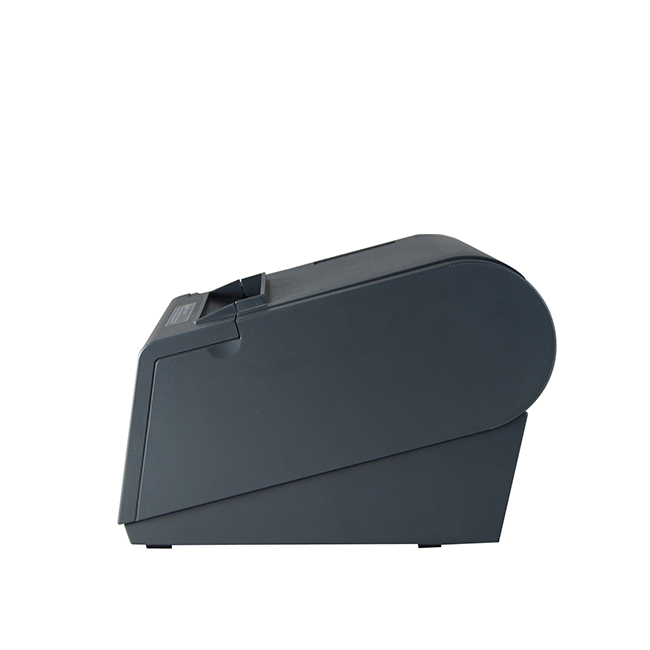

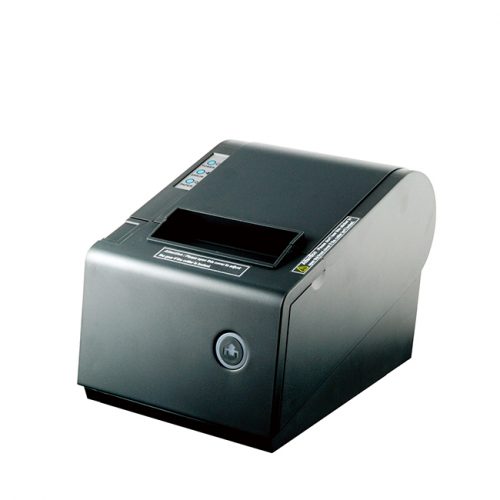

TEP-220 80 mm Thermal Receipt Printer

  • TEP-220 Thermal Receipt Printer with 250mm/sec high-speed printing.
  • High printing quality.
  • Low working noise and compact design.
  • Support cash drawer kick-out.
  • Various interfaces are available ( Serial+USB+Ethernet/Parallel+USB).
You are here:

Share this product

Description

TEP-220 Thermal Receipt Printer is an 80 mm receipt printer able to support interfaces of Parallel + USB and Serial + Ethernet + USB, whose printing speed is 250mm/sec high-speed in working conditions; With the compact design and fashionable appearance, the receipt printer can be used with low noise in the point-of-sale environment for a comfortable checkout experience and allow reliable printing effiency in TEP220’s high-level performance.

Except for the thermal receipt printer available in the retail environment, VMAX can also supply other types of label printers to be enhanced for commodity code or warehouse inventory management to fulfill operational requirements.

The tep-220 80mm thermal receipt printer may be combined with an auto-cutter and configured to make a lower noise beep to alert staff to a new print-out.

Additional printer demands can be found here and for more technological requirements you could call us for a consultation.

ModelTEP-220
Paper end detectionSupport
Printing speed250mm/sec
Paper rollDimension: width: 79.5±0.5mm

Max diameter: 83mm

Roll diameter: Inside: 12mm

Outside: Minimum 18mm  Maximum 26mm

Printing width79.5±0.5mm
Dot pitch576dots / line&512dots / line
CharacterANK Character: Font A: 12×24dots

Font B: 9×17dots

Simplify/Traditional: 24×24 dots

Print commandCompatible with ESC/POS

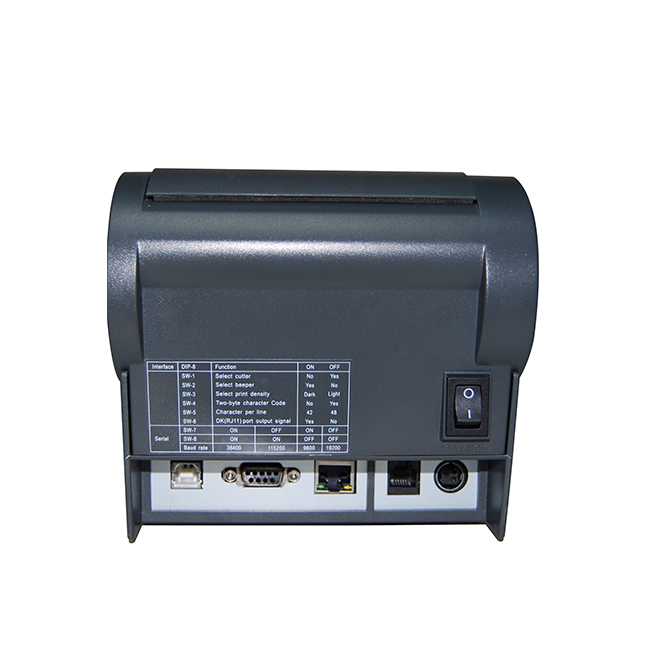

InterfaceParallel+USB; Serial+Ethernet+USB
Auto cutterPartial
Reliability print100Km
Barcode modeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128



Paper thickness0.06~0.08mm
Power supplyDC 24V/2A
Power adapterInput: AC110V~220V, 50~60HZ

Output: DC 24V/2A

Cash drawerDC 24V/1A
Work temperatureTemperature: 0~45℃, Dampness: 10~80%
Storage temperatureTemperature: -10~60℃, Dampness: 10~90%
Dimensions210×145×140MM(W×D×H)
