VS210 Auto Focus Industrial Barcode Scanner
- Industrial barcode scanner with a wide scanning range of up to 5 million pixels
- Clear imaging, advanced CMOS sensor, more powerful performance
- Automatic parameter setting: key automatically adjust image parameters, output brightness moderate, contrast obvious, geometric correction results
- Fast read rate multi-core parallel processing for industrial barcode scanner
- The industrial barcode scanner supports LCD industry Vericode code and a variety of interfaces and connection methods
Share this product
Description

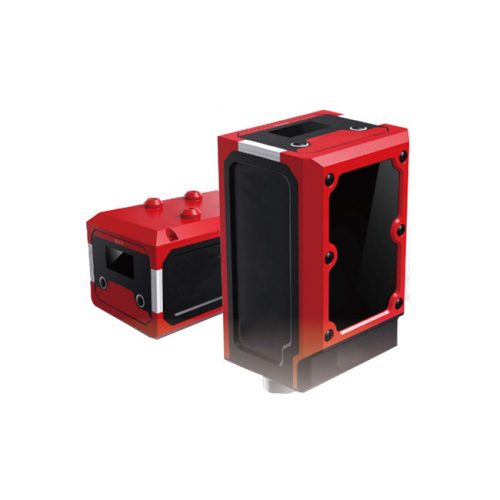

VS210 industrial barcode scanner is capable of high-speed automatic focusing and the bar code reader lens pixels up to 5 million, with image resolution up to 2560*1936, ensuring high definition as well as reading a wider range of 1d 2d barcodes.
The high-speed high-definition industrial barcode scanner adopts CMOS sensors with higher sensitivity and lower noise, which suits the darker parts of the scene (the scanned artifact), even if the exposure time is set very short, but clear images can be obtained, accurate reading and output reading results can be achieved for warehouse and manufacture industry.
The multi-core operation of the VS210 image processor enables the traditional shooting, pre-processing, and decoding processes to be divided into CPU, GPU, and DSP cores for parallel processing, so the processing time is faster, the decoding efficiency is higher, and more bar codes can be processed per unit time.
If you are interested in the industrial barcode scanner, you could download the product catalog of featured industrial barcode scanners and contact us for assistance.
| Module NO. | VS210 | |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 2560 X 1936 | |
| Frame Rate | 45 fps | |
| Lens | Focal Distance | automatic focusing |
| Field of View | Horizontal Angle: 19° | |
| Vertical Angle: 15 ° | ||
| Light Source | Illumination | Red LED |
| Aimer | Green LED | |
| Indicator | Red LED, Green LED | |
| Symbology Decode | 1-D | Codabar 、 Code 39 、 Code 32 Pharmaceutical (PARAF) 、 Interleaved 2 of 5、 NEC 2 of 5、 Code 93、Straight 2 of 5 lndustial、 Straight 2 of 5 IATA , Matrix 2 of 5, Code 11、 Code 128、 GS1-128、 UPC-A、 UPC-E、 EAN/JAN-8、 EAN/JAN-13、 MSI、 GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 GS1 DataBar Expanded、 China Post(Hong Kong 2 of 5) 、 Korea Post |
| 2-D | Codeblock A、 Codeblock F、 PDF417、 Micro PDF417、 GS1 Composite Codes 、 QR Code 、 Data Matrix、 Max,Code、 Aztec、 HANXIN | |
| Mini Accuracy | ≧3mil | |
| Input & Output | 2 photoelectric isolated inputs | |
| 3 photoelectric isolated outputs | ||
| Serial Communication | Communication Standard: Conform to RS232C Transmission Speed : 9600 、 19200 、 38400 、 57600 、 115200 bps | |
| Ethernet | Communication standard 100BASE-TX; Support protocol TCP/IP | |
| USB | Communication Standard: Conform to USB Standard Protocol | |
| Rated Value | Voltage | 24V DC±10% |
| Current | Stand-by Current: 200mA | |
| Operation Current: 2000mA | ||
| Power Consume | 48W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45°C |
| Storage Temperature: -10 ~ +50°C | ||
| Humidity | Relative Humidity: 5% ~ 85% (No condensation) | |
| Storage Environment Humidity: 5% ~ 85% (No condensation) | ||
| Protection | IP54 | |
| Ambient Light | Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux | |
| Fall | Withstand multiple 1.2m drops to the concrete floor (deflection allowed 5° ) | |

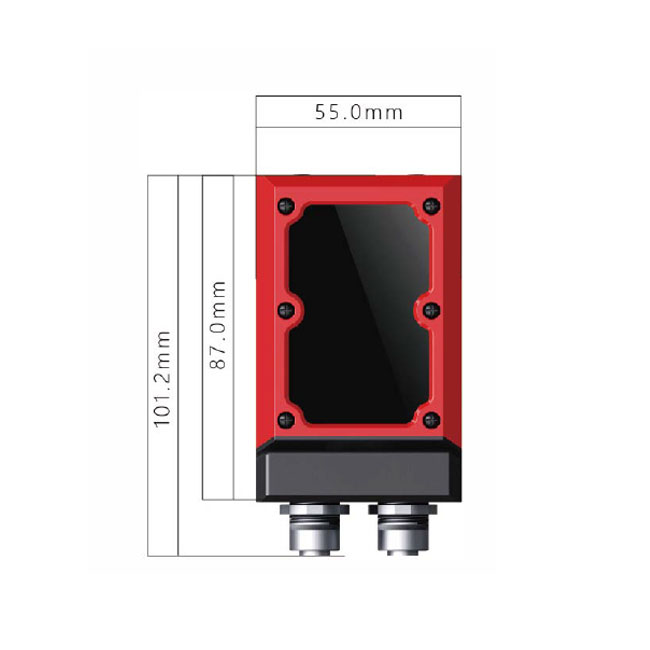

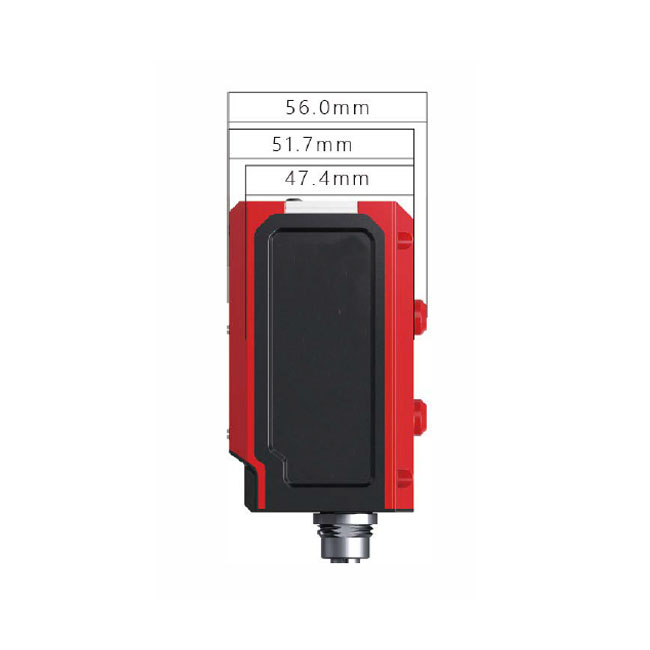

| Machine | Dimensions | 101.2mm x 55.0mm x 51.7mm |
| Weight | 280g | |
| Shell material | Aluminum alloy | |
| Certification | CE FCC RoHS IS09000 I0S9001 |
