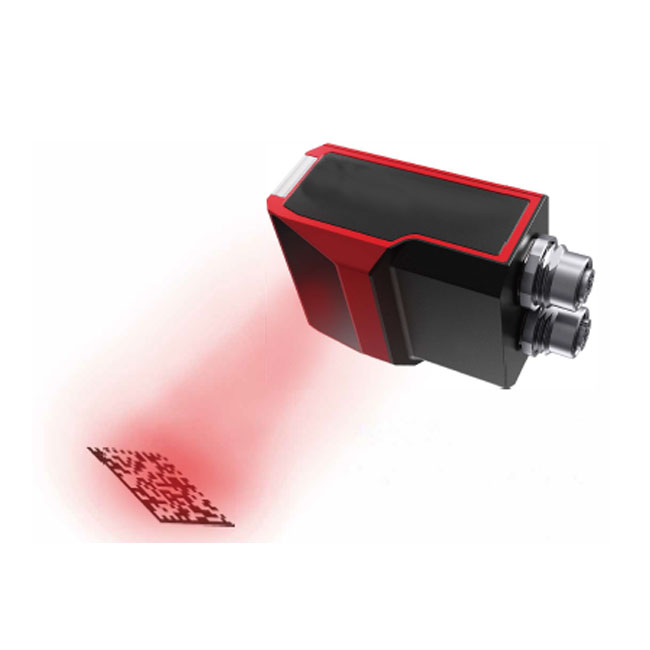

VS120 Compact 2D Barcode Reader
- Easy to set up mechanical focusing and operate the barcode reader
- Automatically lock the barcode in the field of view
- The inferior/fuzzy bar code is positioned by the barcode reader at the four corners to improve the accurate reading ability
- Provide the function of matching grade determination and printing quality inspection
Share this product
Description
VS120 Industrial compact 2d barcode reader is equipped with the function of mechanical focusing to accurate read the date info from the barcodes,which can be key set to automatically adjust the best reading parameters when the target bar codes are placed within the range of the reader,so the industrial barcode reader can scan the codes and save parameters to the host pc machine.
| Module NO. | VS120 | |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 1920×800 | |
| Frame Rate | 60fps | |
| Lens | Focal Distance | Mechanical Focusing |
| Field of View | Horizontal Angle : 39° | |
| Vertical Angle : 26 ° | ||
| Light Source | Illumination | Red LED (Optional Blue and White LED) |
| Aimer | Red Laser | |
| Indicator | Red LED,Green LED | |
| Symbology Decode | 1-D | Coda bar、 Code 39、 Code 32 Pharmaceutical (PARAF) 、 Interleaved 2 of 5、 NEC 2 of 5、 Code 93、Straight 2 of 5 lndustial、 Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、 Code 128、 GS1-128、 UPC-A、 UPC-E、 EANJ/AN-8、 EAN/JAN-13、 MSI、 GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 GS1 DataBar Expanded、 China Post(Hong Kong 2 of 5) 、 Korea Post |
| 2-D | Codeblock A、 Codeblock F 、 PDF417、 Micro PDF 417、 GS1 Composite Codes、 QR Code 、 Data Matrix、 Max,Code、 Aztec、 HANXIN | |
| Mini Accuracy | ≧4mil | |
| Input & Output | 2 photoelectric isolated inputs | |
| 3 photoelectric isolated output | ||
| Serial Communication | Communication Standard: Conform to RS232C Transmission Speed : 9600 、 19200 、 38400 、 57600 、 115200 bps | |
| Ethernet | Communication standard 100BASE-TX ; Support protocol TCP/IP | |
| USB | Communication Standard: Conform to USB Standard Protocol | |
| Rated Value | Voltage | 24V DC±10% |
| Current | Stand-by Current : 200mA | |
| Operation Current : 700mA | ||
| Power Consume | 16.8W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45°C |
| Storage Temperature : -10 ~ +50°C | ||
| Humidity | Relative Humidity : 5% ~ 85% (No condensation) | |
| Storage Environment Humidity : 5% ~ 85% (No condensation) | ||
| Protection | IP54 | |
| Ambient Light | Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux | |
| Fall | Withstand multiple 1.2m drops to the concrete floor (deflection allowed 5° ) | |

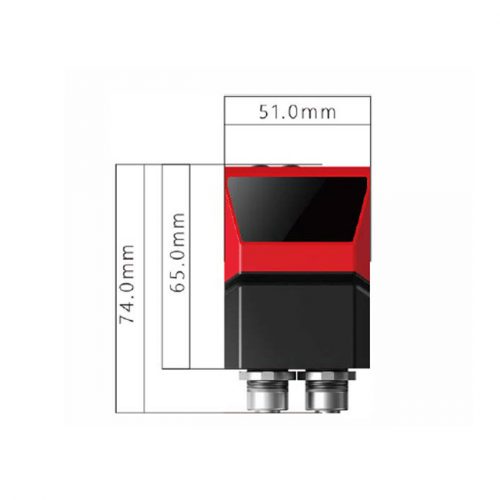

| Machine | Dimensions | 79.6mm x 47.0mm x 37.5mm |
| Weight | 130g | |
| Shell material | aluminium alloy | |
| Certification | CE FCC RoHS IS09000 I0S9001 | |
