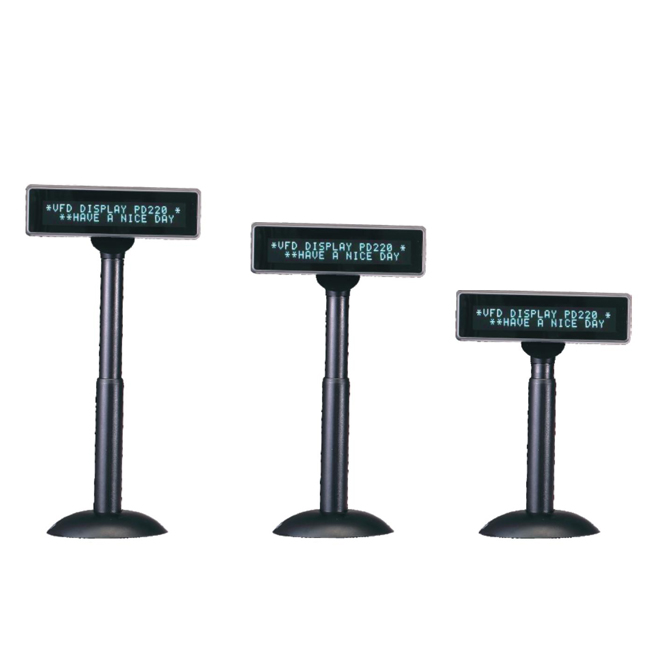

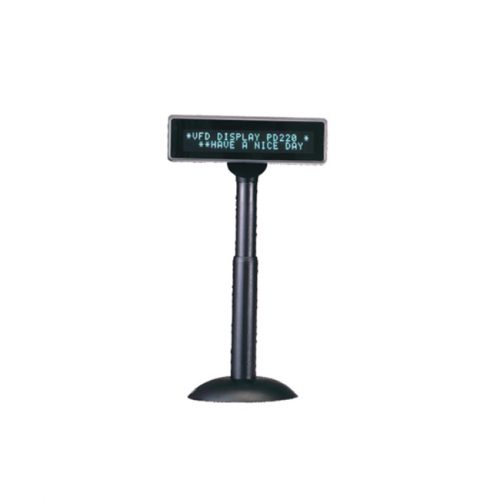

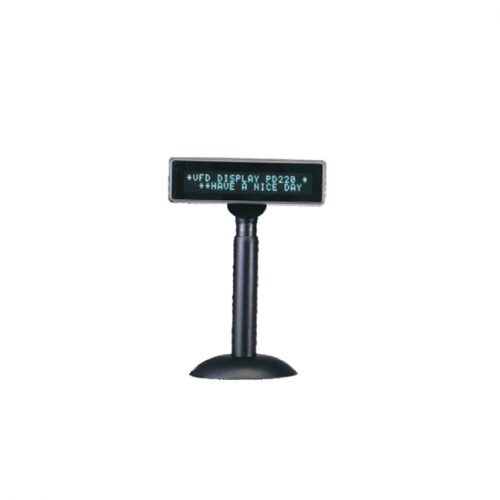

PD220V-V POS VFD Pole Display

  • VFD pole display supports 11 command modes including EPSON etc.
  • OPOS / JPOS driver is standard for vfd display pd220.
  • 20-column x 2-line dot matrix in a wide viewing angle for display.
  • Easy connectivity to a wide range of POS system machines.
  • Power supply from 5V to 24V to prevent any mindless use of improper power input.
You are here:

Share this product

Description

PD220V-V VFD Pole Display for POS System has 20 columns * 2 lines dot matrix in a wide angle of viewing and a special type of tube to show bright and clear characters on a screen, adaptively connected to multiple POS machines such as an all-in-one POS terminal or electronic cash register.

The pole displays can be also defined as line displays or customer displays, employed to display the price, total, and change to the customers.

The customer pole display has used vacuum fluorescent display (VFD) technology to present bright and easy-to-read characters with a Blue-Green color and a wide viewable angle without the need to maintain a fixed viewing point to see the order display.

As you can see, there are several advantages of vacuum fluorescent customer displays over other types of displays:

  • VFD customer display can display both numbers and letters, including 95 Alphanumeric and 32 International Characters.
  • Vacuum fluorescent customer displays have a high contrast and visibility, even in bright or dark environments.
  • VFD pole display has a wide viewing angle and can be adjusted to different heights and angles to satisfy
  • VFD display PD220 has a low power consumption and a long lifespan.

The PD220V-V VFD pole display with RS232 serial and USB connection can be integrated with a huge variety of POS system machines.

You could gain more critical business insights through our professional solutions, and download the product catalog to gain more details about the VFD display PD220 series.

General
Display Method
Vacuum Fluorescent Display (Blue-green)
Number of characters
40(20 columns x 2 lines) VFD Pole Display
Brightness
500-1000 cd/m2
Character font
5 x 7 dot matrix
Character type
95 Alphanumeric,32 International Characters
Character size
9.02(H) x 5.25(W)mm
Dot Size (X x Y)
0.86 x 1.05 mm
Download characters
9 characters
Panel Dimension
195(D) x 31.5(W) x 54(H)mm
Pole Dimension
Per support leength:339(L) x 34(Dia)mm
Base Dimension
139(D) x 119(W) x 24.5(H)mm
Viewing Angle
Max.135°
Horizontal Rotation
Max.355°
Weight
Approx.780 grams
Commands Mode
LD220,EPSON POS D101,AEDEX,UTC/S,UTC/P, ADM788,DSP800,CD5220,EMAX,LOGIC CONTROL
Language Support
FRANCE, GERMANY, U.K, DENMARKI, SWEDEN, ITALY, SPAIN, JAPAN, NORWAY, DENMARKII, SLAVONIC, RUSSIA, Portuguese, Canadian, French, Nordic, Turkish, Greek, West European Latin, CP858, CP860, WPC1252, CP857(TURKISH), polish, WPC1250, WPC1253(GREEK), WPC1255(Hebrew), WPC1251, CP866, CP852, CP737(DOSgreek), CP858,
CP864(Arabic),Farsi(Lran)
Interface
RS-232 (serial) /USB
Baud
Direct connection 9600 or 19,200 bps,38,400 bps
MTBF
30000 hours
Consumption
5-24 VDC
EMC standards
Safety standards
FCC, CE, ROHS
