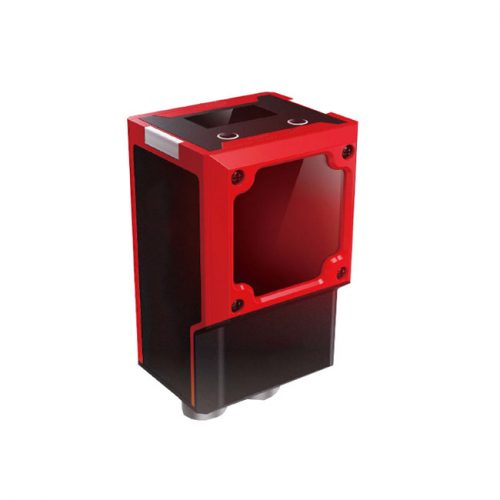

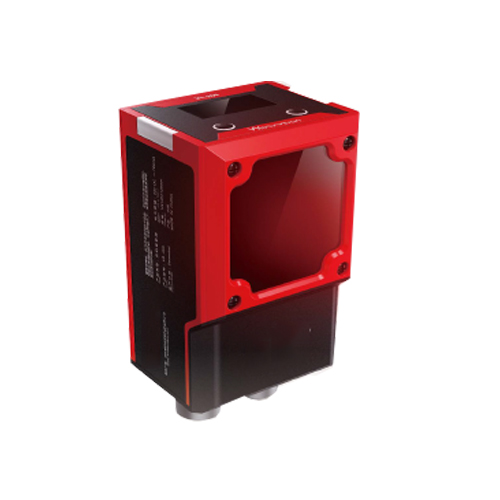

VS200 Auto Focus Industrial Barcode Scanner
- No use the threshold and one click to complete the installation focusing.
- Auto focus and wide range of stable reading codes.
- Read the bar code of IC parts on the tray once,
- Accurately read the bar code on the patch machine.
- Read the bar code on the surface of rotating workpiece.
- Read bar code on crankshaft casting surface.
- Industrial 2d barcode scanner supports multiple interfaces and connection modes.
- Auto focus barcode scanner capable of scanning on lcd vericode codes.
Share this product
Description
VS200 Auto Focus Industrial 2d Barcode Scanner could be applied for scanning 1d 2d bar codes,vericode code or qr codes,greatly easy to deal with the difficult problem of reading code in various environments with the features of high resolution and different shooting range.
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 1920 * 1080 | |
| Frame Rate | 60fps | |
| Lens | Focial Distance | Auto Focus |
| Field of View | Horizontal Angle: 1 8 ° | |
| Vertical Angle: 1 4 ° | ||
| Light Source | Illumination | Red LED |
| Aimer | Green LED | |
| Indicator | Red、Green LED | |
| Symbology Decode | 1-D | Coda bar、 Code 39 、 Code 32 Pharmaceutical (PARAF) 、 Interleaved 2 of 5、 NEC 2 of 5、 Code 93、Straight 2 of 5 lndustial、 Straight 2 of 5 IATA、Matrix 2 of 5、Code 11、 Code 128 、 GS1-128 、 UPC-A、 UPC-E、EAN/JAN-8、 EAN/JAN-13、 MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、 GS1 DataBar Expanded 、 China Post(Hong Kong 2 of 5) 、 Korea Post |
| 2-D | Codeblock A、 Codeblock F、 PDF417 、 Micro PDF417、 GS1 Composite Codes 、QR Code 、 Data MatrixMaxiCode 、 Aztec、 HANXIN | |
| Mini Accuracy | ≥4mil | |
| Input & Output | 2 Optical Isolation Input | |
| 3 Optical Isolation Output | ||
| Serial Communication | Communication Standard : Conform to RS232C | |
| Transmission Speed：9600 、 19200 、 38400 、 57600 、 115200 bps | ||
| USB | Communication Standard : Conform to USB Standard Protocol | |
| Ethernet | Communication Standard : 100BASE-TX | |
| Support Agreement : TCP/IP | ||
| Rated Value | Voltage | 24VDC±10% |
| Current | Stand-by Current : 200mA | |
| Operation Current : 700mA | ||
| Power Dissipation | 16.8W | |
| Environmental Resistance | Temperature | Operation temperature: 0 ~ +45°C |
| Storage Temperature : -10 ~ +50°C | ||
| Humidity | Relative Humidity : 5% ~ 85% (No condensation) | |
| Storage Environment Humidity : 5% ~ 85% (No condensation) | ||
| Protection | IP54 | |
| Ambient Light | Sunshine :10000 lux、 Incandescent : 6000 Iux 、 Fluorescent 2000 lux | |
| Fall | Withstand multiple 12m drops to the concrete floor (deflection allowed 5° ) | |
| Machine | Dimensions | 88.7mm x 47.0mm x 45.5mm |
| Weight | 180g | |
| Shell Material | Aluminum Alloy | |
| Certification | CE FCC RoHS ISO9000 IOS9001 |
