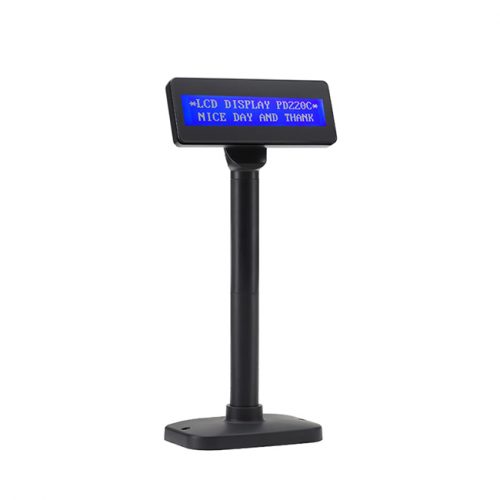

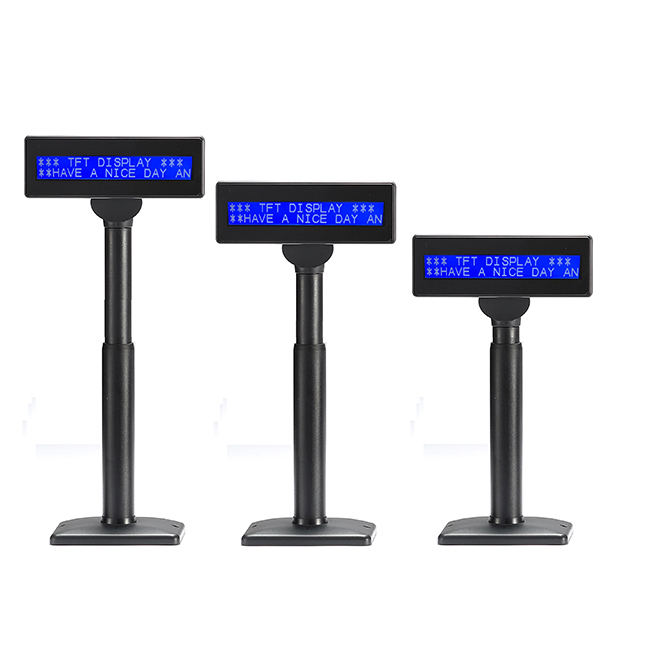

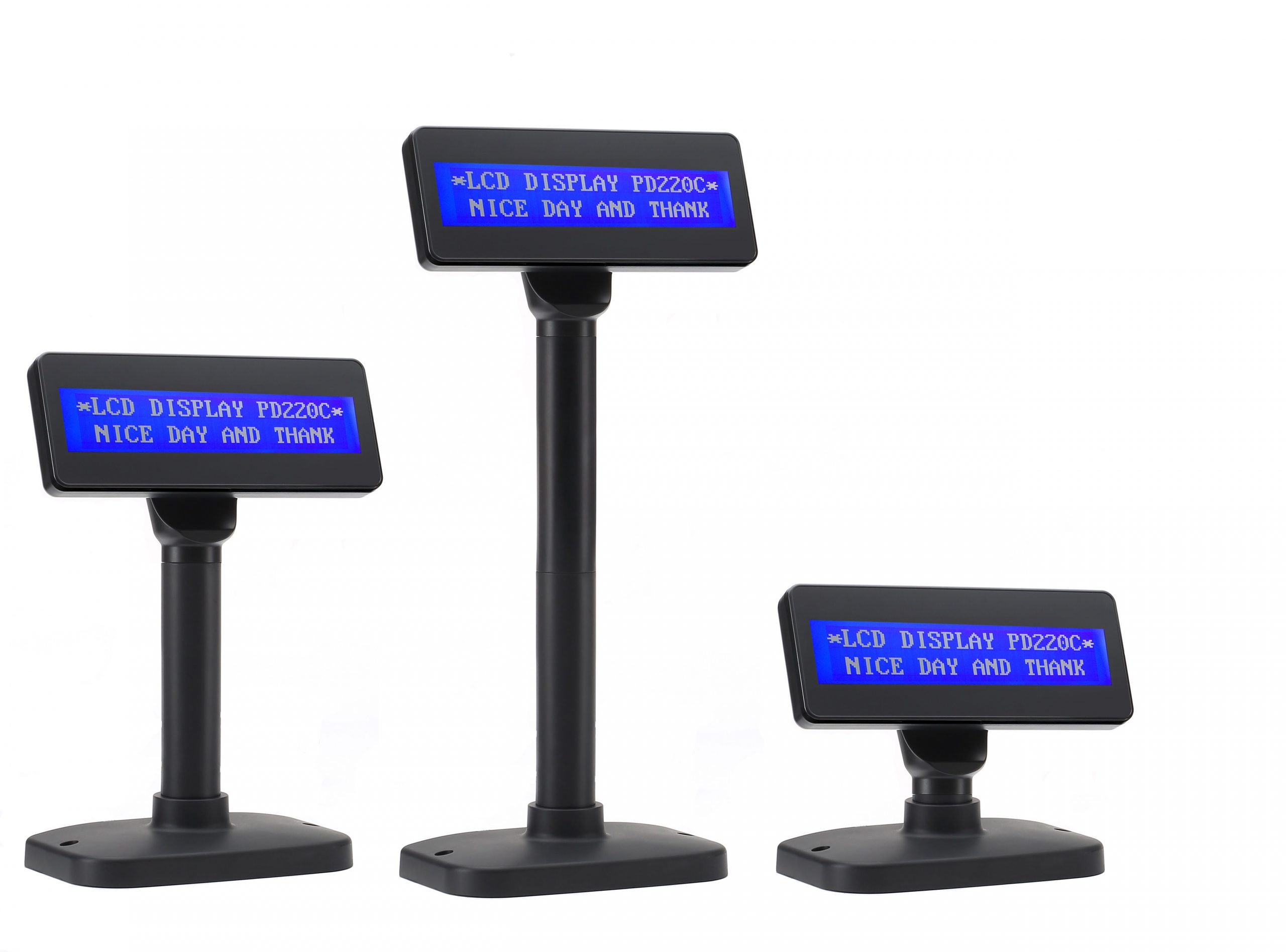

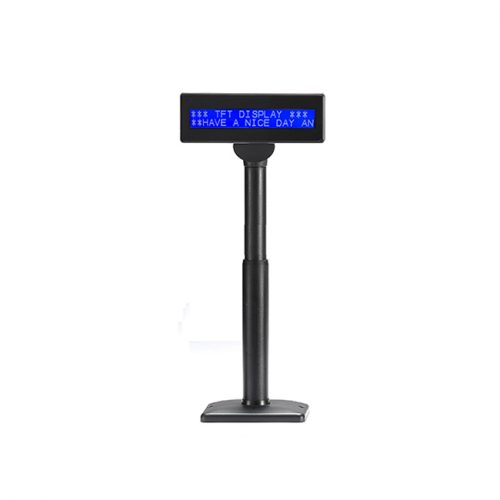

PD220C-III Pole POS Customer Display
- LCD display for pos monitor supports 11 command modes including EPSON etc.
- Power supply from 5V to 24V to prevent any mindless use of improper power input.
- OPOS/JPOS driver is standard.
- 20-column x 2-line dot matrix in a wide viewing angle.
- POS customer displays easy connectivity to a wide range of POS machines.
- VFD customer display can be connected to your pos system through a USB, Serial connection.
Share this product
Description
PD220C-III 2.2-inch Pole POS Customer Display LCD Display produced in high-bright is visible in sunlight, suitable for outdoors, supermarkets and shopping malls during consumption with the pos monitor display and the pole display monitor constitutes two-line fluorescent or LCDs that interact with your pos system via USB, Serial interfaces.
With the right point-of-sale customer display, you could also make it simple for your customers to trust each transaction. By the way, the customer display can make customers see what the cashiers see at the cash register.
The VFD customer display pole has a high brightness of 1200cd/m2 to display 40 characters of 20 columns X 2 lines to ensure the customers see their order details and promotion advertising clearly.
Meanwhile, the LCD pole customer display is easy to be installed and combined with other pos system machines.
If you have additional customized display and function needs, you can contact us for more assistance, or download the product catalog to seek your ideal pos customer display screen.
General | |
Display Method | LCD (Blue-White) |
Number of characters | 40 (20columnsX2lines) (Chinese:20*2) |
Brightness | 1200cd/m2 |
Character font | 16*16 dot matrix |
Character type | 95 Alphanumeric. 32 international characters |
Character size | 9.92 (H) X7.136 (W) mm |
Dot size (XXY) | 0.426(H) xO.6(V) |
Download Character | 9 characters |
Active area | 142.7(H) x 19.82(V) |
Pole Dimension | Per support length： 140(L)X34.5 (Dia)mm |
Base Dimension | 169.5 (D) X98.5 (W) X39 (H) mm |
Viewing Angle | Max.60° |
Horizontal Rotation | Max.355° |
Weight | Approx,700 grams |
Commands Mode | |
LD220, EPSON POS D101. AEDEX. UTC/S. UTC/P, ADM788, DSP800, CD5220. EMAX. LOGIC CONTROL | |
Language Support | |
RANCE‘GERMANY、U.K、DENMARKI、SWENEN、ITALY、 SPAIN、JAPAN、NORWAY. DENMARKIk SLAVONIC. RUSSIA、Portuguese、Canadian French、Nordic、 Turkish Greek West European Latin.CP858. CP860、 WCP1252、CP857 (TURKISH )x Polish. WPC1250、 WPC1253 (GREEK)x WPC1255 (Hebrew)、 WPC1251. CP866、 CP852. CP737 (DOSgreek)、 CP858、 CP864 (Arabic) Farsi (Iran), CP936-GBK, CP932. CP949. CP950 | |
Interface | RS-232 (serial) /USB |
Baud | Support 9600/19200/38400/57600/115200 bps |
MTBF | 30000 hours |
Consumption | 5V or 5-24 VDC |
