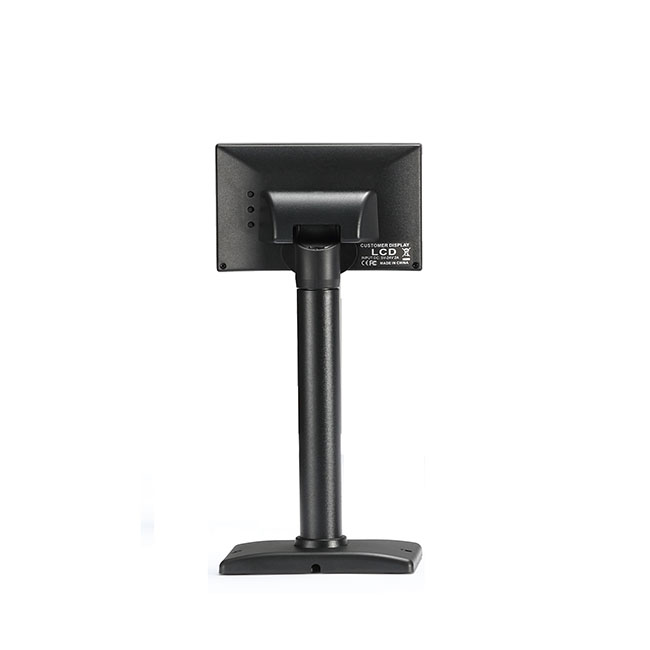

PD500-II USB LCD Customer Display

  • 5 inch LCD monitor with large view and high clear screen.
  • Support 1024*600 resolution, 800*480 optional
  • Support USB2.0, VGA or HDMI interfaces
You are here:

Share this product

Description

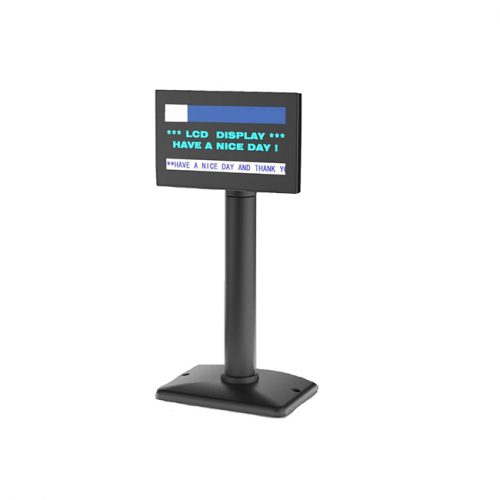

PD500-II 5” Pole Customer Display LCD Monitor with USB 2.0,VGA or HDMI interfaces,supports 800*480 and optional resolution 1024*600,and show 20 columns × 2 lines and optional characters (20 colums × 4 line) with multiple languages,which suits for different situations like food truck,restaurants,clothing stores,retails.Show images in whole 5 inch lcd monitor while standby cutomer display trays.

General
Display Method
TFT – LCD Display(5 inch COLOR PANEL)
Pattern
20columns×2line )/(20colums×4 line),

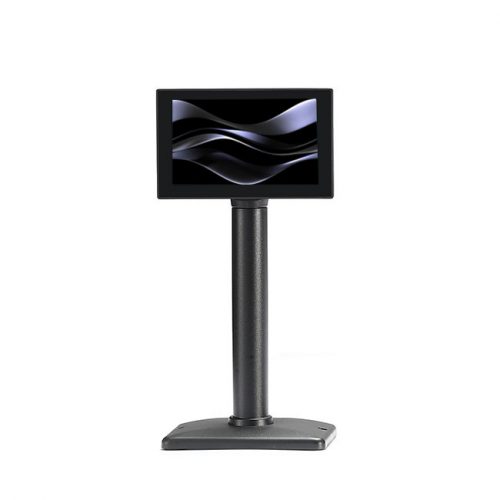

Show images full screen when standby state
Brightness
>350cd/m2
Resolution
800*480
Character font
40*80 dot matrix
Character type
95 Alphanumeric,32 international characters
Character size
10.8(H)×5.4(W)mm
Dot size(X×Y)
0.135×0.135mm
Active area
108(L)mm×24.8(W)mm
Pole Dimension
Per support length:163(L)×27.65(DIA)mm/
80(L)×27.65(DIA)mm
Base Dimension
126(L)×89(W)×13.5(H)mm
Viewing Angle
Max.135°
Horizontal Rotation
Max.355°
Weight
490 grams/506grams
Commands Mode
15 kinds, E.g LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc
Language Support
CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858,
CP864,WCP1257, WCP1258,Tai(CP874),CP936
Interface
RS-232(serial)/USB
Baud
Direct connection 9600/19200/38400/57600/115200 bps
MTBF
30000 hours
Consumption
5-24 VDC
EMC standards
Safety standards
FCC,CE,ROHS
