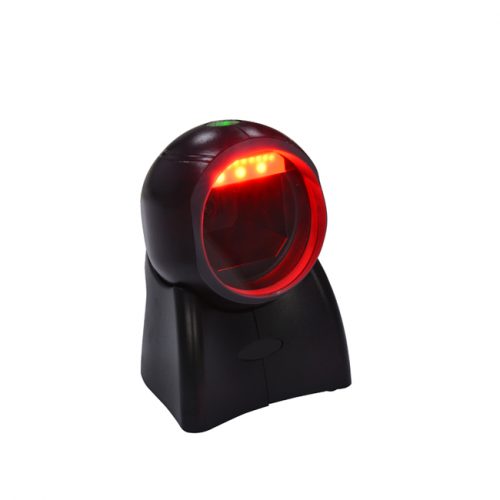

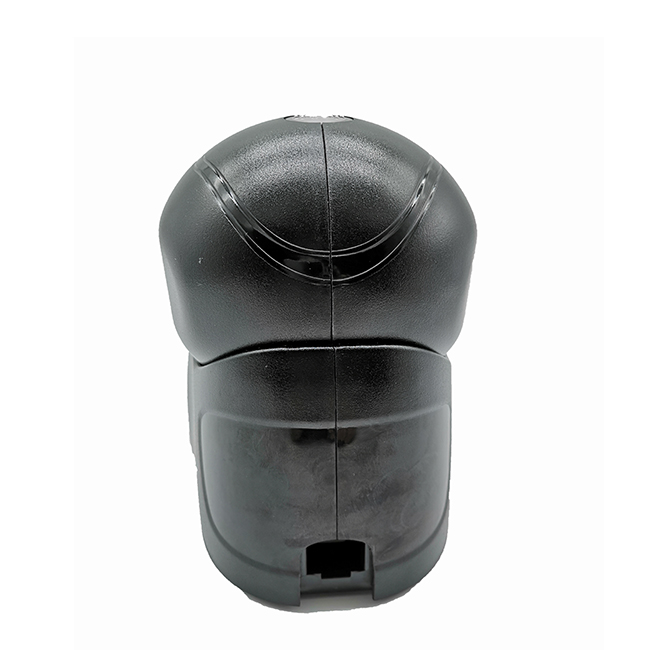

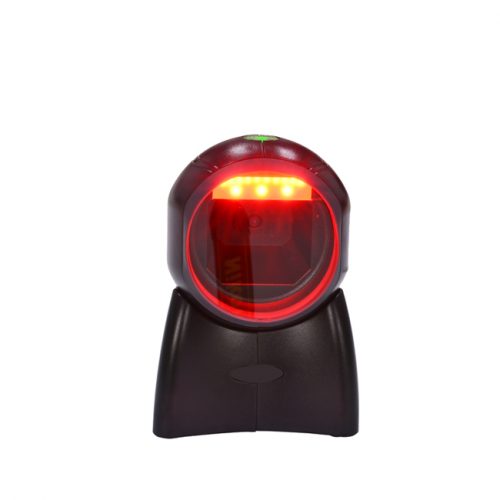

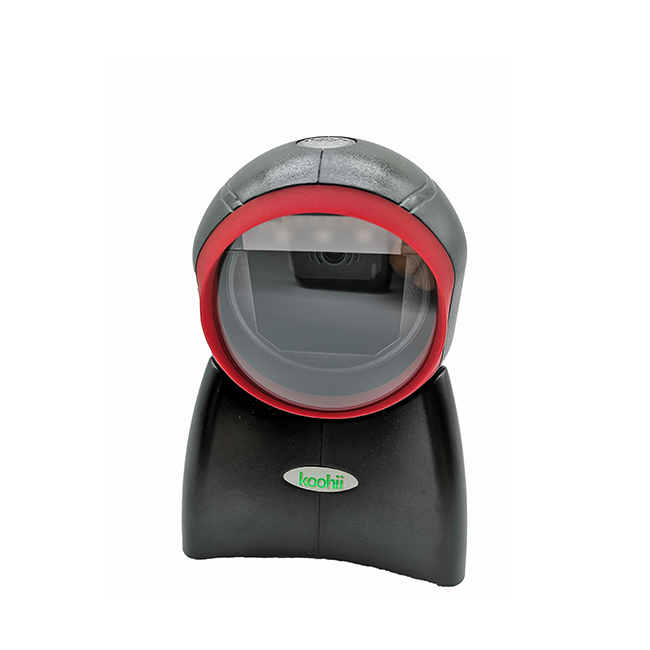

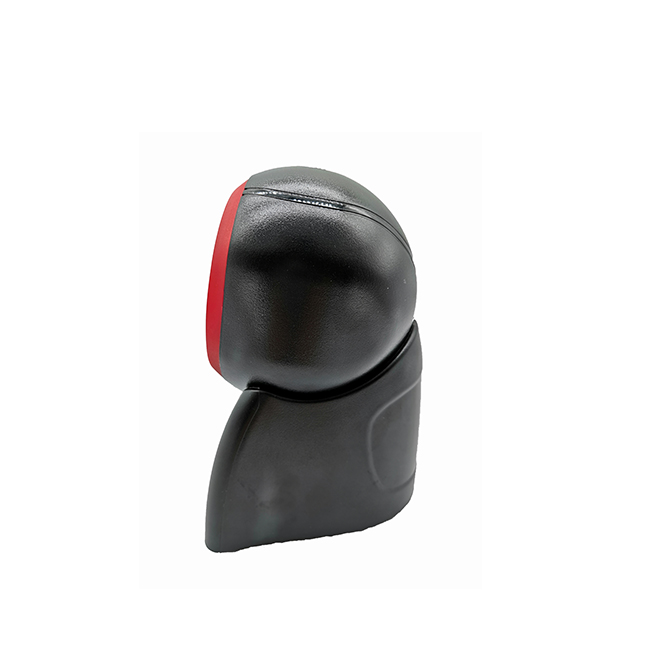

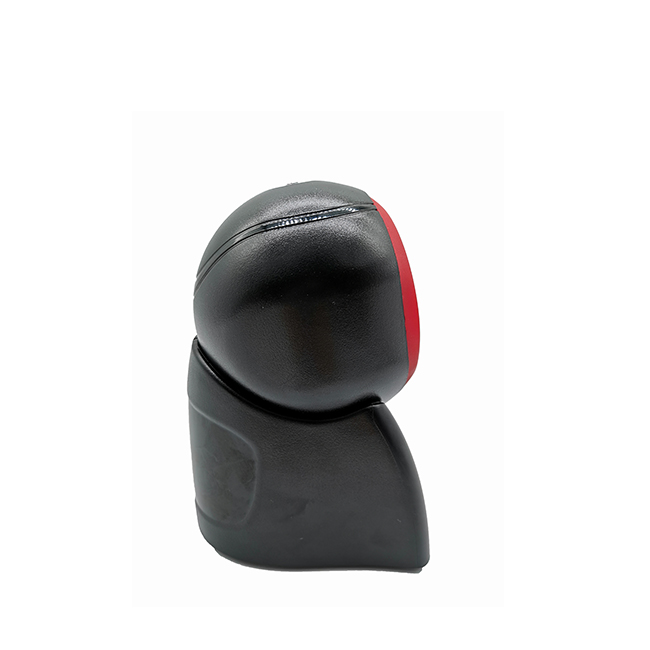

OD7100E 2D Omni Directional Barcode Scanner equipped with USB RS232 interfaces connection is able to directly interpret bar codes on both mobile phones and computer screens in different business occasions like new retail, tickets checking, inventory management, clubs, and bars, even the Omni platform barcode scanner could read all 1d 2d bar codes and smoothly switch among paper bar codes and mobile phone bar codes for various environment, specifically designed for retail point-of-sale environments.
The 2d omni barcode scanner provides 2D barcode decoding capability of PDF417, QR code, MicroPDF417, DataMatrix, etc, as well as common 1D barcodes, and the omnidirectional barcode scanner enables you to scan numerous barcoded items constantly and speedily, without failures or errors on the first reading.
The Omni directional platform barcode scanner with hands-free supports faster scanning rates with less aiming due to their wider reading capacity to make the best solutions for retailers.
If your retailers need a platform barcode scanner for hands-free, you could call us to speak with barcode scanner solutions and customize your country’s specified decodes, or download the platform omnidirectional barcode scanner catalog for preview and selection.
Physical Characteristics | |
Dimensions: | 96.7mm x 104mm x 145mm |
Weight: | 297.5g |
Voltage: | 5±5% VDC |
Current: | 450mA |
Performance Characteristics | |
Image (Pixels): | 640 pixels (H)x 480 pixels (V) |
Light Source: | Red color LED |
Field of View: | 50° |
Roll / Pitch / Yaw: | 58°(Horizontal) , 45°(Vertical) |
Print Contrast: | 20% minimum reflective difference |
Interfaces Supported: | USB, RS232 |
Motion Tolerances: | >0.25m/s |
Symbology Decode Capability | |
1-D: | Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, |
Telepen, UPC/EAN, etc | |
2-D: | PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39,DataMatrix, etc. |
User Environment | |
Operating Temperature: | -20°C to 60°C |
Storage Temperature: | -30°C to 70°C |
Humidity: | 5% to 95% relative humidity,non-condensing |
Shock Specifications: | 8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes |
Ambient Light Immunity: | 0-100,000 Lux. |
Decode Ranges | |
5 mil (code39) | 0mm-60mm |
13 mil (code39) | 0mm-170mm |
15 mil (PDF417) | 0mm-60mm |
13 mil (UPC-A) | 0mm-150mm |
30 mil (QR Code) | 0mm-130mm |
Performance may be impacted by bar code quality and environmental conditions |
