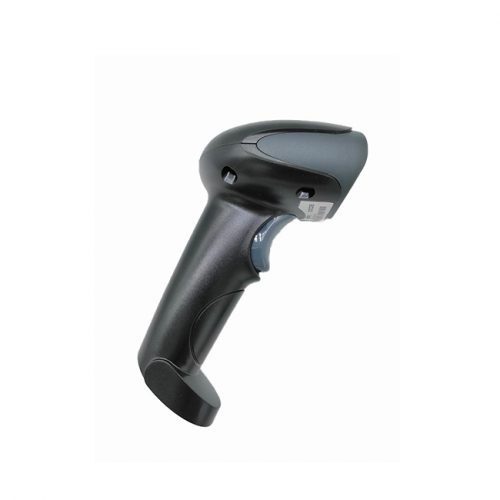

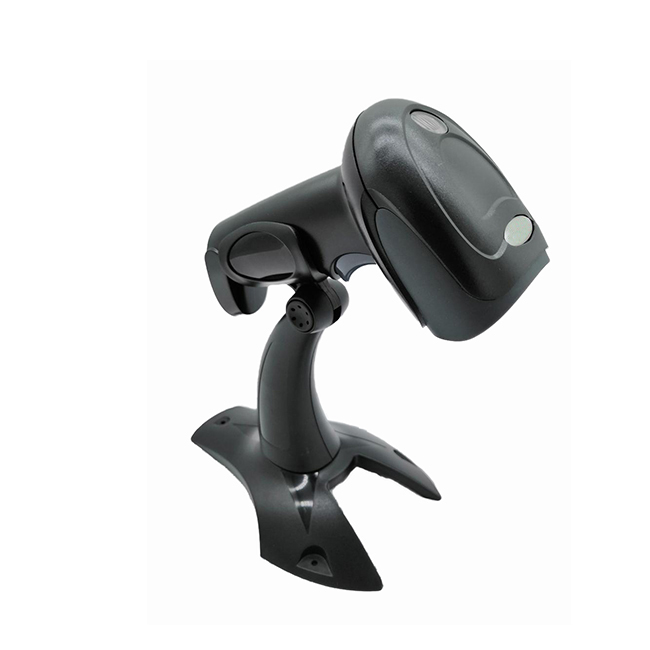

EC323 USB Barcode Scanner

  • High-sensitive image sensor (can read on electronic screen)
  • Good penetrability barcode scanner with RS232,USB interfaces
  • High decoding ability for easily reading damaged and substandard barcodes
  • Rugged design IP54 withstands multiple 1.8 m drops
You are here:

Share this product

Description

EC323 USB barcode scanner enables damaged, substandard or plicated barcodes to be read, and its image sensor with high sensitivity is able to scan contents on an electronic screen by the portable barcode scanner USB, which can provide merchants with devices ability handheld quickly and accurately reading to make it simple to track goods and manage a business.

Wireless or Wired barcode scanner can be selected to enable your businesses a quick, reliable connection to any register, pos system, or mobile device with a USB connector.

Performance
Model No.
EC323
Processor type
32Bit
scan mode
handheld barcode scanner
Alarm mode
Red light alarm, Buzzer alarm
Resolution
640(horizontal) x 480(vertial),256 gray levels
Scan angle
45°(horizontal);30°(vertial)
Scan speed
250mm/sec
Scan depth of field
5 mil(Code 39) 90~120mm
13 mil(UPC/EAN) 30~305mm
20 mil(Code 39) 30~450mm
PDF417(10mil) 50~225mm
Datamatrix(10mil) 52~240mm
Barcode type
Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post,
EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code,
Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN
Electrical
Voltage
DC+5V±5%
Operating current
60mA(working); 40mA(standby); 300mA(operating)
Interfaces
RS232,USB(MS+MAC)
Light level
Visible Red light 630+10nm
Environmental
Operating temperature
-20 ℃ ~60℃
Storage temperature
-30 ℃ ~70℃
Humidity
5% to 95% (Non-condensing)
Light environment
The normal direct sunlight indoor and outdoor
Drop
Designed to withstand 1.8m drops
IP degree
IP54
Reliability
High temp.
60 ℃ (140 ℉)
Low temp.
-20 ℃ (-4 ℉)
Cycle time
30 minutes for high temp.,30 minutes for low temp.
Cycles
24 cycles
Mechanical Shock
2000G, 0.7ms, 3 axes
Physical
Dimensions (LxWxH)
170mm×100mm×75mm
Weight
150g (without cable)
Material
ABS+EVA
Color
black
Accessories
scanner, manual, cable
