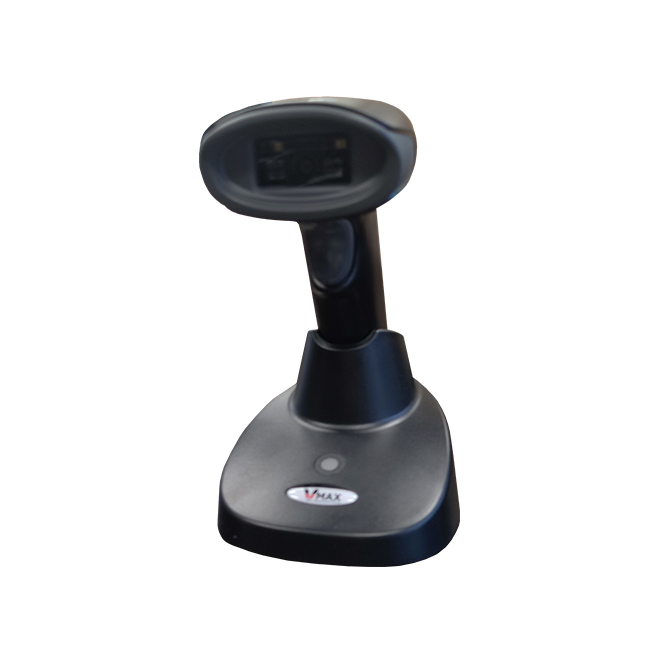

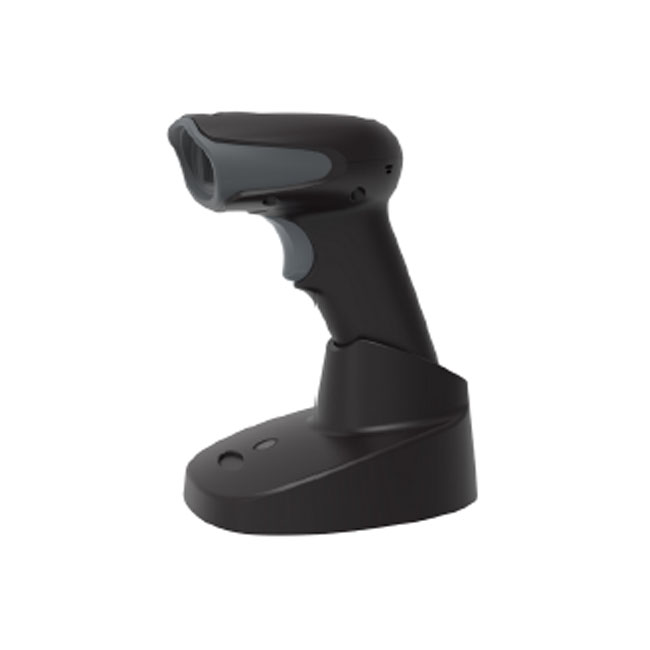

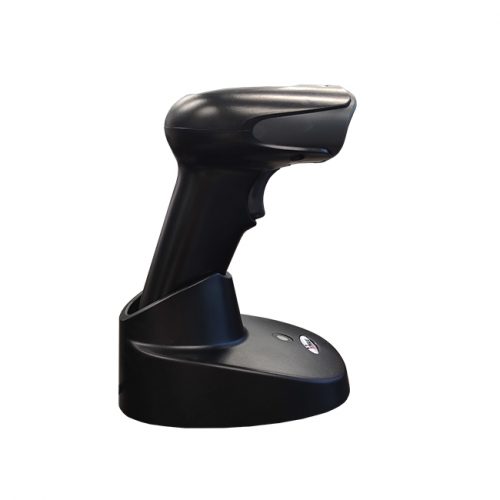

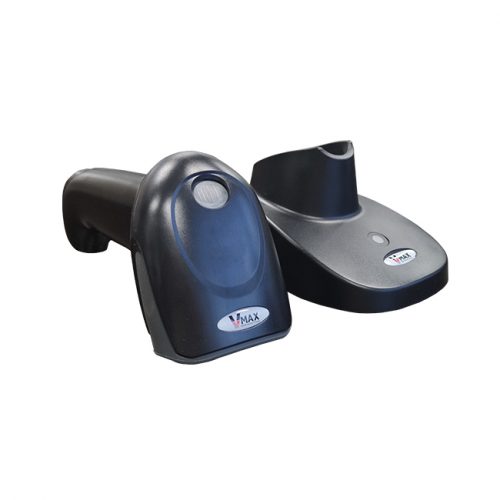

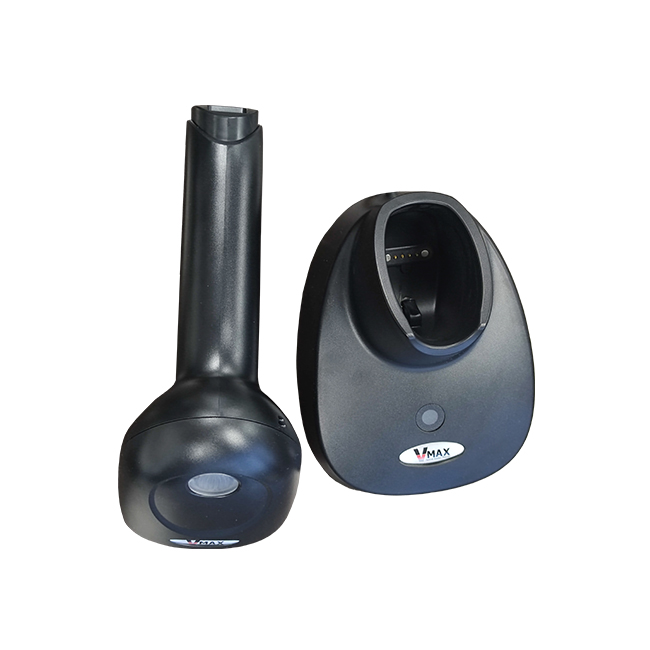

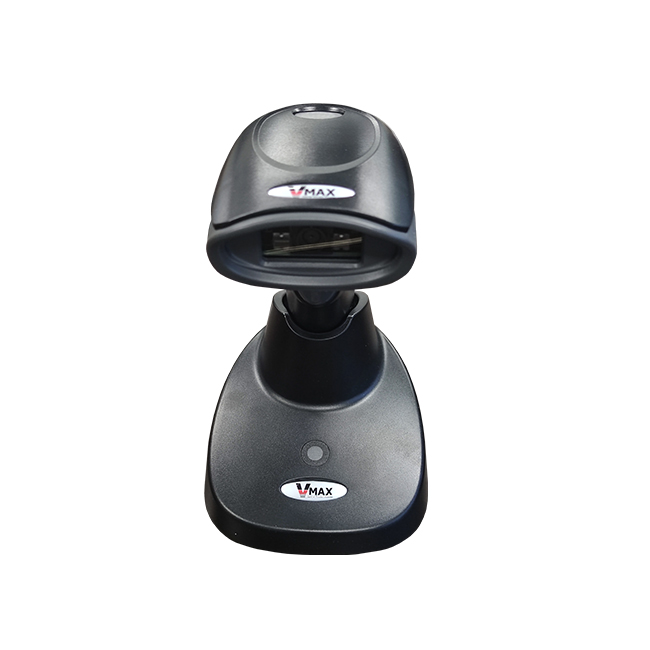

- BT321 Handheld Wireless 2D Imager Barcode Scanner

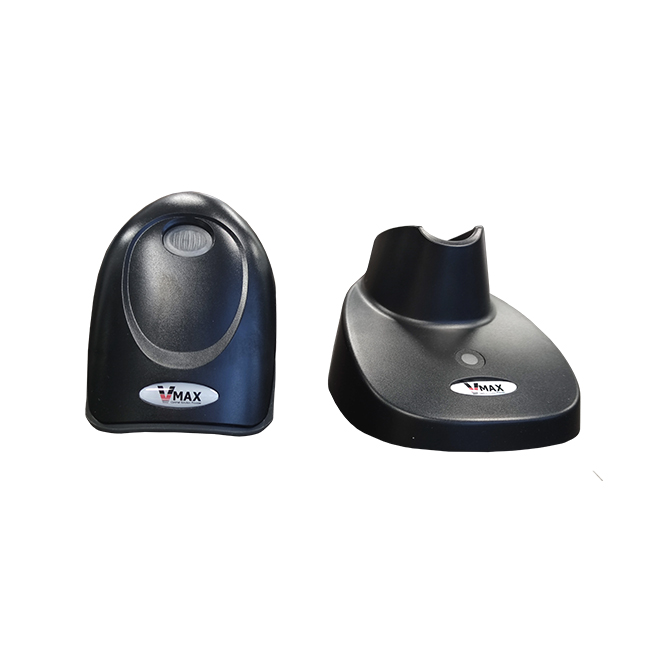

BT321’s new 2d handheld wireless imager barcode scanner has the excellent capability of patented FAST decoding algorithm, high-speed and accurate interpretation of various barcodes like one-dimensional symbologies and two-dimensional symbologies.
Portable, lightweight, and comfortable imager scanners are designed to hold scanning barcodes printed on label papers or displayed on mobile computer screens, which provides greater scanning functionality over standard barcode scanners.
With cable-free management, the cordless imager scanner has the freedom of movement to ensure that your focus has been kept on the customers’ shopping experience rather than wasting time managing cables, to provide a quick, accurate, and friendly checkout experience.
An imager barcode scanner, which could read two-dimensional symbols, performs more like a digital camera than a laser scanner. Instead of bouncing a reading laser beam, the imager barcode scanner captures and analyzes a picture of the barcode.
And if there is a requirement to read codes on the PCB board or metalware, you could find the reading solution for an industrial barcode scanner.
If you can not know exactly which kind of barcode scanner you may need, you could contact us to assist in clarifying the requirement.
Or you could download the scanner catalog by yourself to take a look at other different types of scanners.
BT321 Specification | |
Physical Characteristics | |

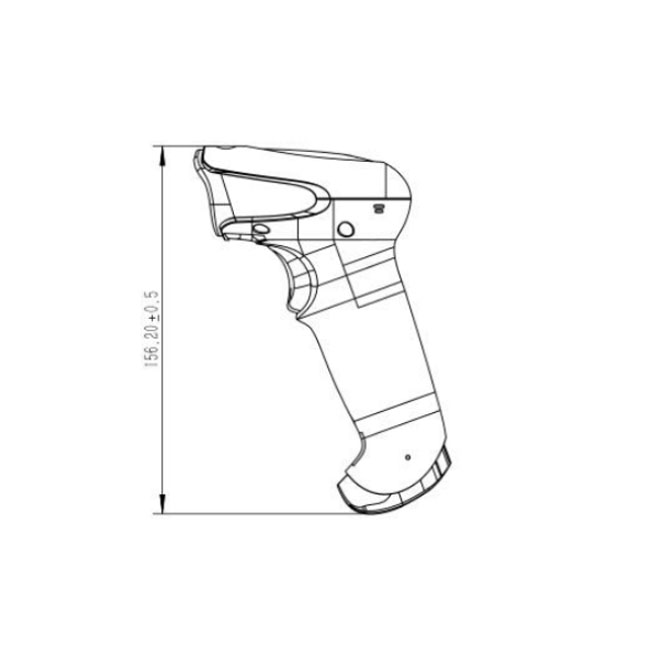

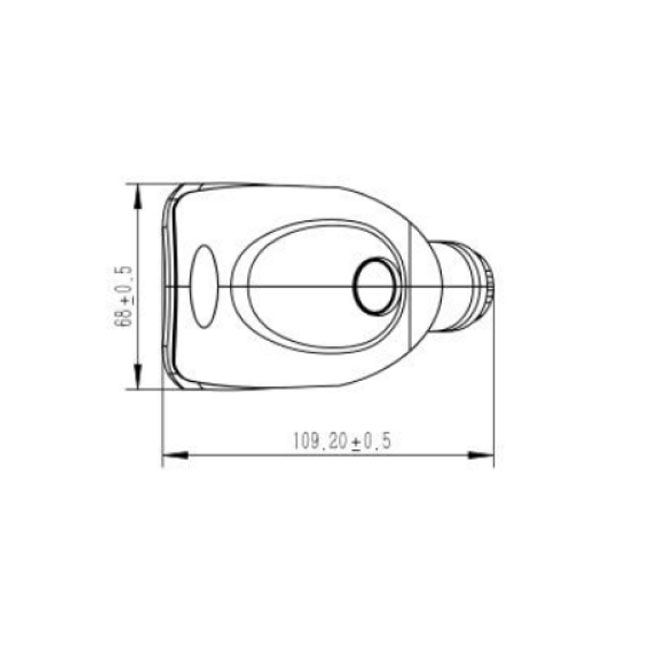

Dimensions | 156.2mm x 109.2mm x68mm |
Weight | 188.5g |
Voltage | ±4.2V±10%V DC |
Starting Current | 204mA |
Stand-by Current | 96mA |
Work Current | 226mA |
Interface Supported | 2.4G, Bluetooth |
Prompting Mode | LED /Buzzer |
Performance Characteristics | |
Image (Pixels) | CMOS 640 pixels (H) x 480 pixels(V) |
Light Source | (Aimer) Red color LED; (Illumination) White color LED |
Wireless signal | 2.4 – 2.5 GHz bandwidth range, Bluetooth V2.0/V3.0/V4.0 |
Symbology Decode Capability | |
1-D | Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、KoreaPost. |
2-D | Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN. |
User Environment | |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -30°C to 70°C |
Humidity | 5% to 95% relative humidity, non-condensing Shock |
Specifications | Designed to withstand 1.5m(5’) drops Ambient |
Light Immunity | 0-100,000 Lux. |
