GA-2408T Empowered 4 inch desktop barcode printer provides both thermal transfer printing and direct thermal printing mode, which you could choose the most compatible way to meet your business, and it is obvious that bartender free Windows driver and label design software CD of this barcode printer is well equipped for commercial and economic demands.
The desktop barcode printer with thermal technology is ideal for printing shipping labels, retail labels, asset tracking, or small-scale labeling operations in widespread applications.
Users can call us for a standard barcode printer or an advanced version of a barcode printer for operating performance to fit their business.
Level | Standard Barcode Printer | |
Resolution | GA-2408T: 8 dots/mm (203DPI) | |
Printing Method | Thermal Transfer & Direct Thermal | |
Max. print speed | GA-2408T: 203mm(8″)/second | |
Max. print width | GA-2408T: 104 mm (4.09″) | |
Max. print length | GA-2408T: 25,400 mm (1,000″) | |
CPU | 400 MHz, 32 bits, ARM9 | |
Memory RAM | 128 MB SDRAM | |
Memory ROM | 128 MB Flash | |
Interface | •USB 2.0 High-Speed 480Mbps •USB Host 2.0, for scanner or PC keyboard •Ethernet 10/100Mbps •RS-232 •Internal Bluetooth 4.0 (factory option) •Internal Wi-Fi (factory option) | |
Real-Time Clock | Optional | |
Buzzer | Optional | |
Dealer options | • Guillotine cutter • Guillotine cutter for Linerless thermal label • Peeler | |
Sensors | • Head open sensor • Ribbon end sensor • Reflective sensor (moveable) • Transmissive sensor (moveable) | |
Power | External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W | |

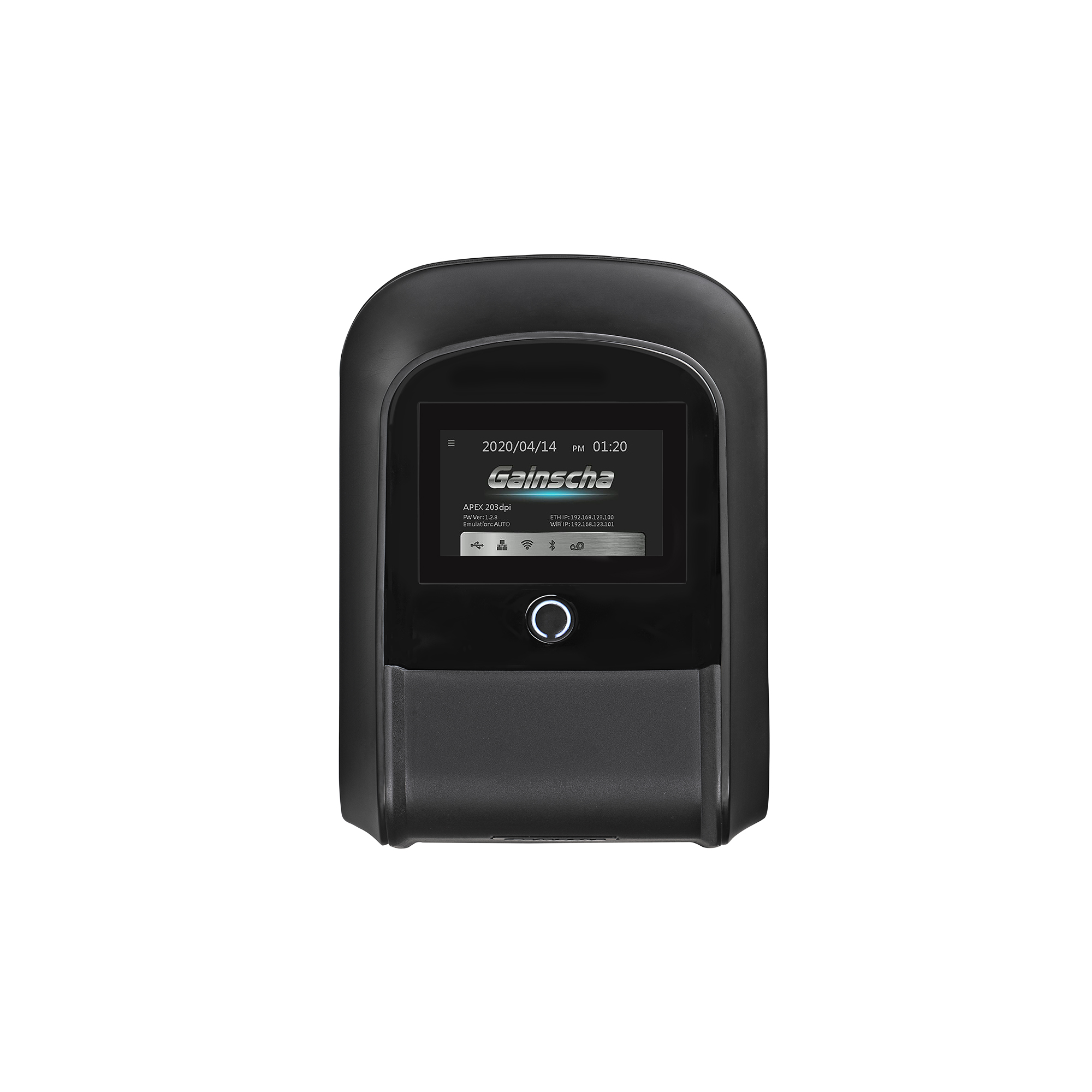

User Interface | •1 power switch •1 button (Feed) •5 LEDs (Online, Error, Ribbon, Wi-Fi/Bluetooth, Communication status) | |
Internal fonts | •8 alpha-numeric bitmap fonts •True type font engine (need to download scalable font file) | |
1D Barcode | Code 11,Code 39,Code 93,UPC-A,UPC-E,UCC-128,Codabar, EAN/JAN-8,EAN/JAN-13,Interleaved 2 of 5,ITF14,MSI Pleassy,PostCode,Telepen | |
2D Barcode | QR Code,Micro QR Code,PDF417,Micro PDF417,MaxiCode,Aztec Code,Data Matrix | |
Rotation | Font and barcode support 0,90,180,270 degree rotation | |
Printer language | Compatible to TSPL, EPL, ZPL, ZPL II, DPL | |
Media type | Continuous, die-cut, black mark, fan-fold(outside wound), Linerless Label | |
Media width | 20~118 mm (0.7″ ~ 4.6″) | |
Media thickness | 0.06~0.254mm (2.36 ~ 10 mil) | |
Media core diameter | 25.4 mm (1″) | |
Label roll capacity | 127 mm (5″) OD | |
Label length | GA-2408T: 5 ~ 25,400 mm (0.2″ ~ 1,000″) GA-3405T: 5 ~ 11,430 mm (0.2″ ~ 450″) | |
Physical dimension | 280mm(L) x 190mm(W) x 198.3mm(H) | |
Net Weight | 2.7kg | |
Enclosure | Clamshell with double-walled plastic | |
Ribbon | 300 meters long, max. OD 67 mm, 1″ core (ink coated outside) | |
Ribbon width | 30~110mm (1.18″~4.3″) | |
Safety regulation | FCC Class A,CE Class A,CCC,BIS,CB | |
Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing | |
Environmental concern | Comply with RoHS, REACH, WEEE | |
Accessories | •Driver and software CD •Quick start guide •USB cable •Power cord •1″ ribbon spindle x 2 •External universal switching power supply |
