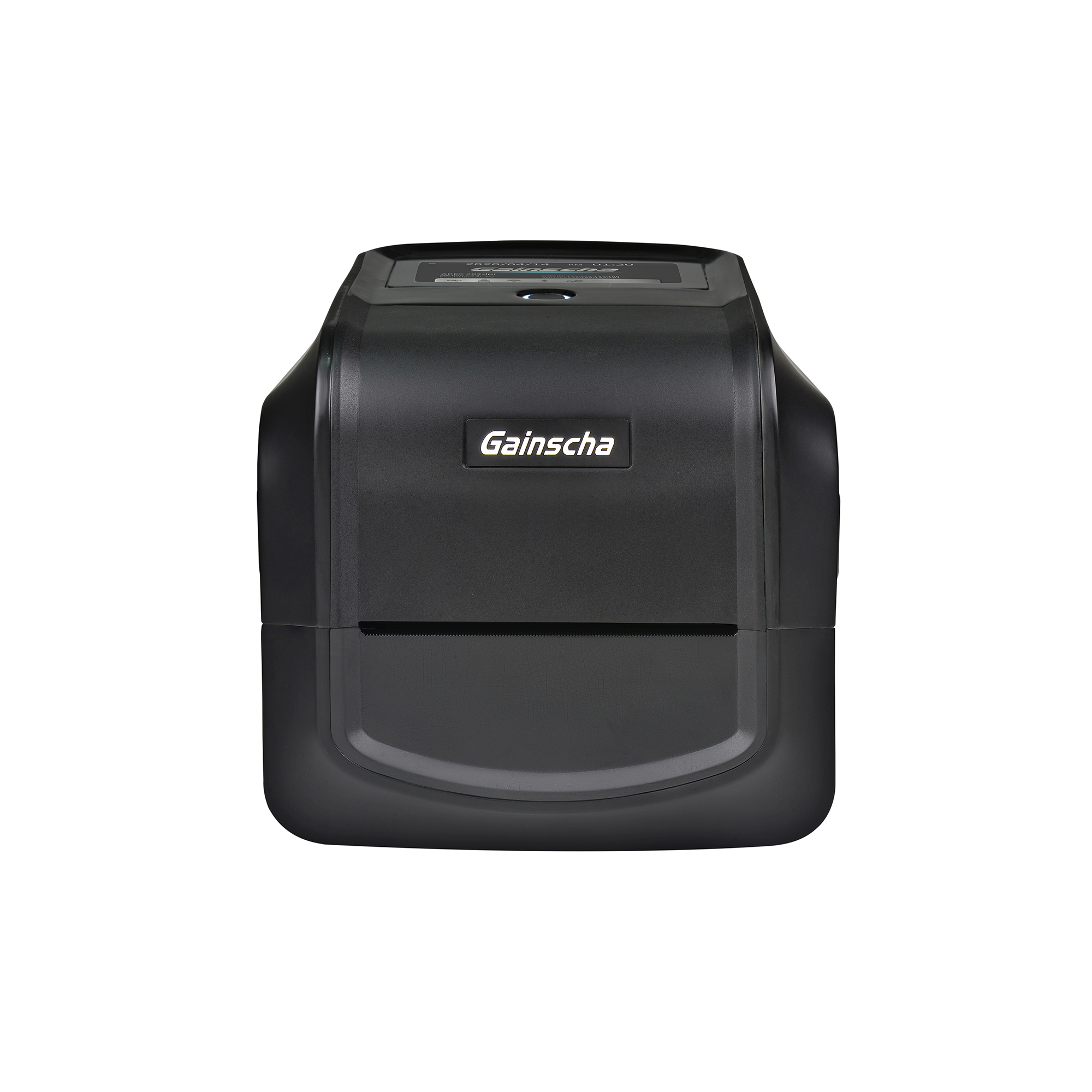

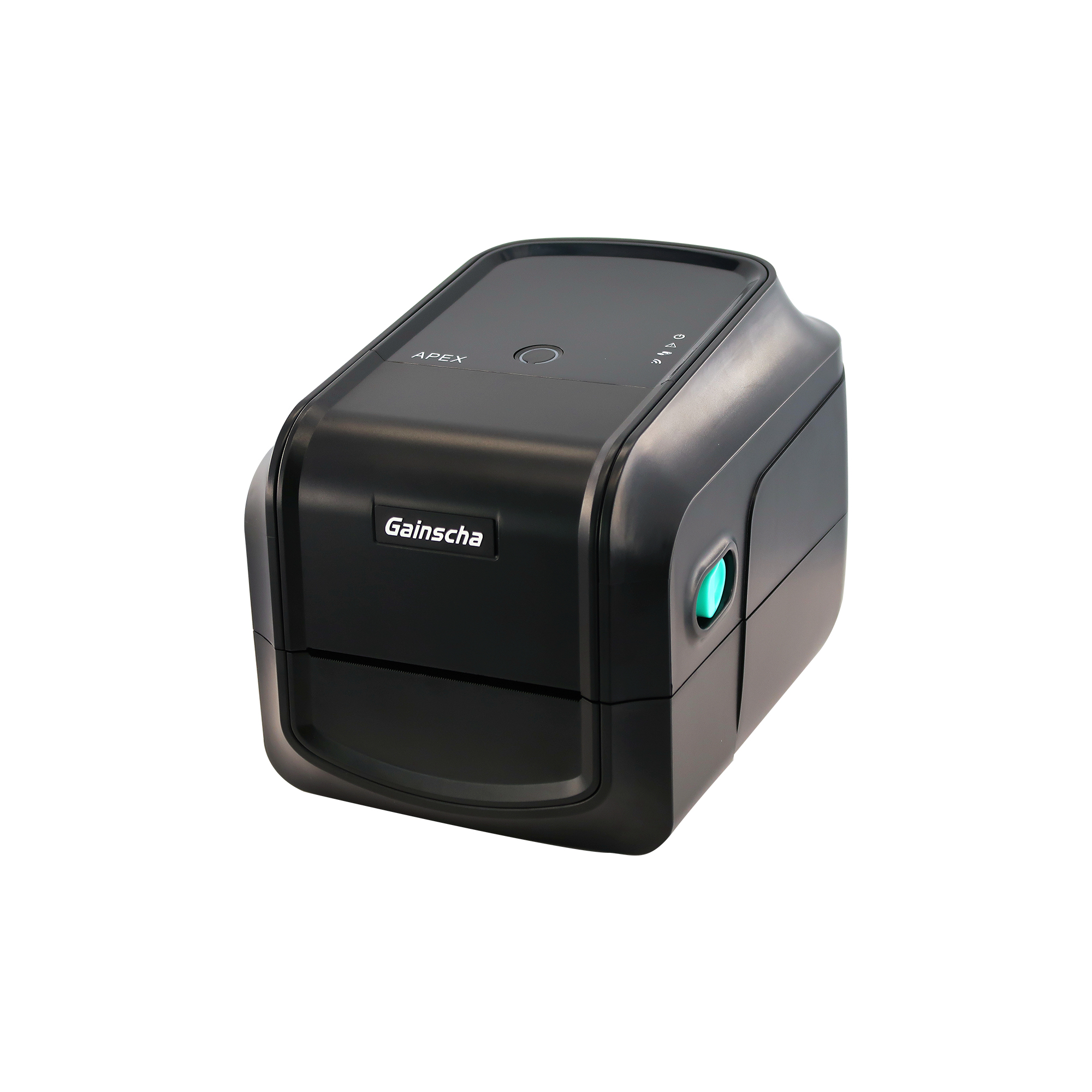

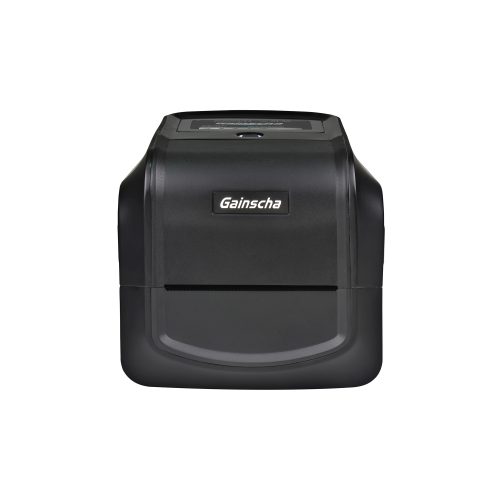

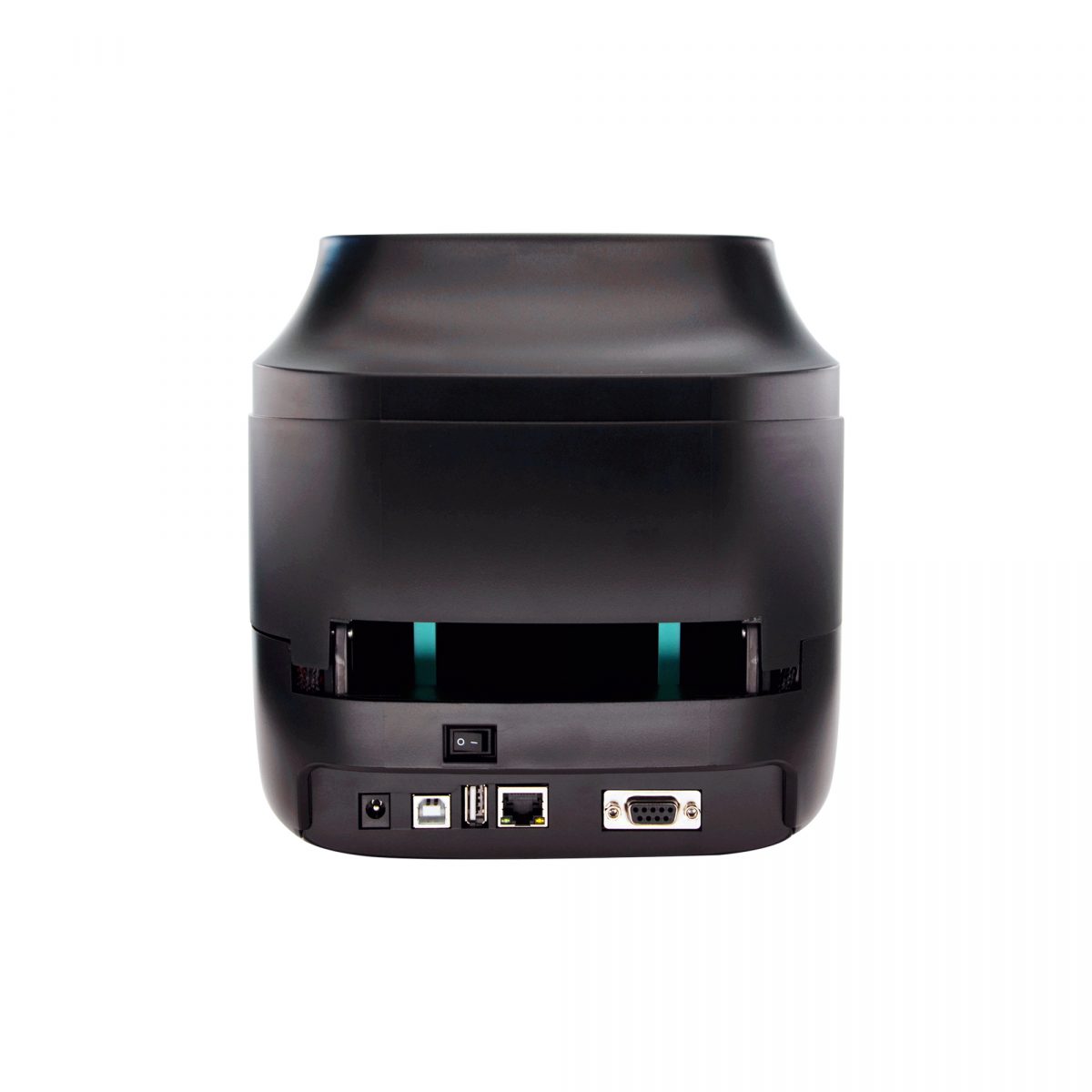

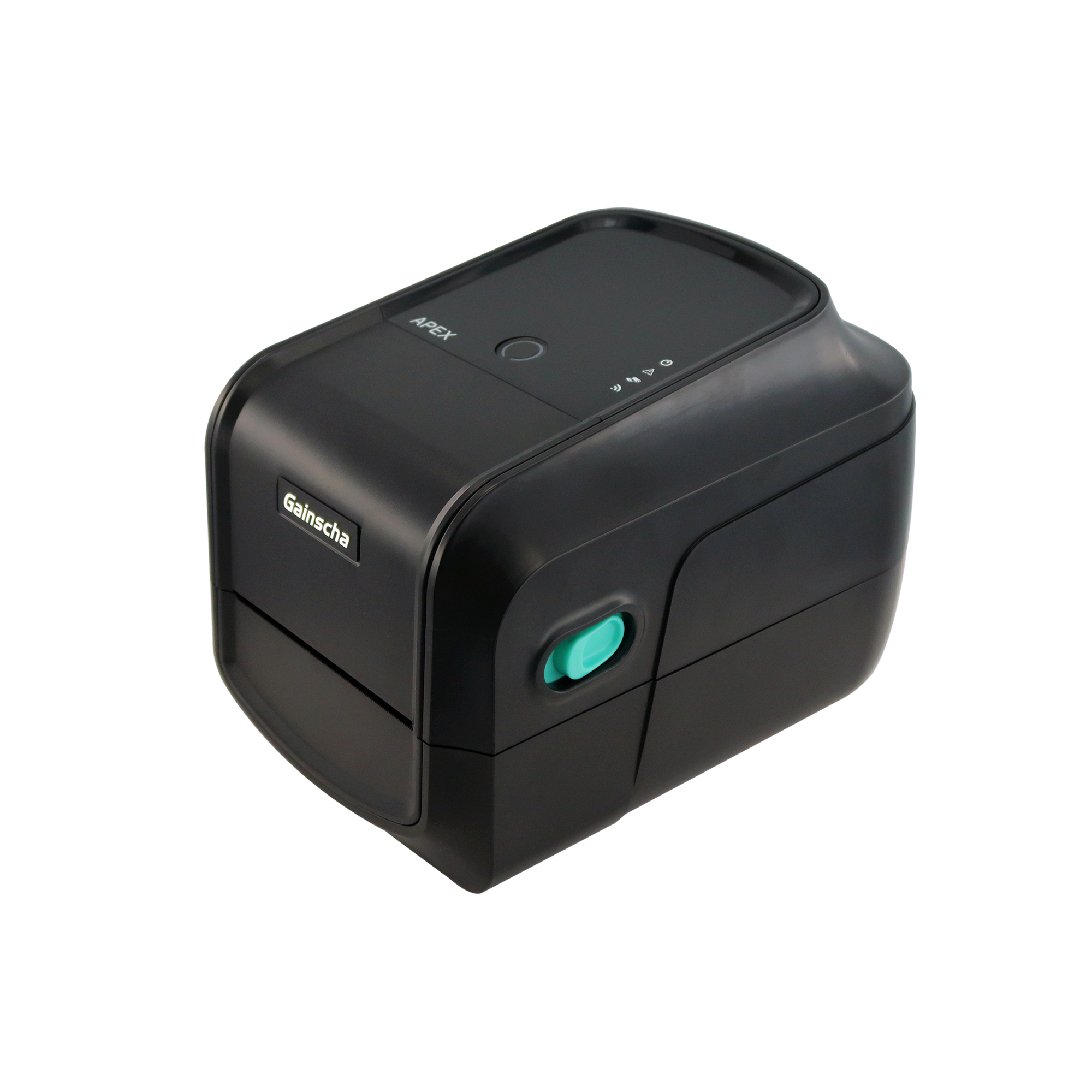

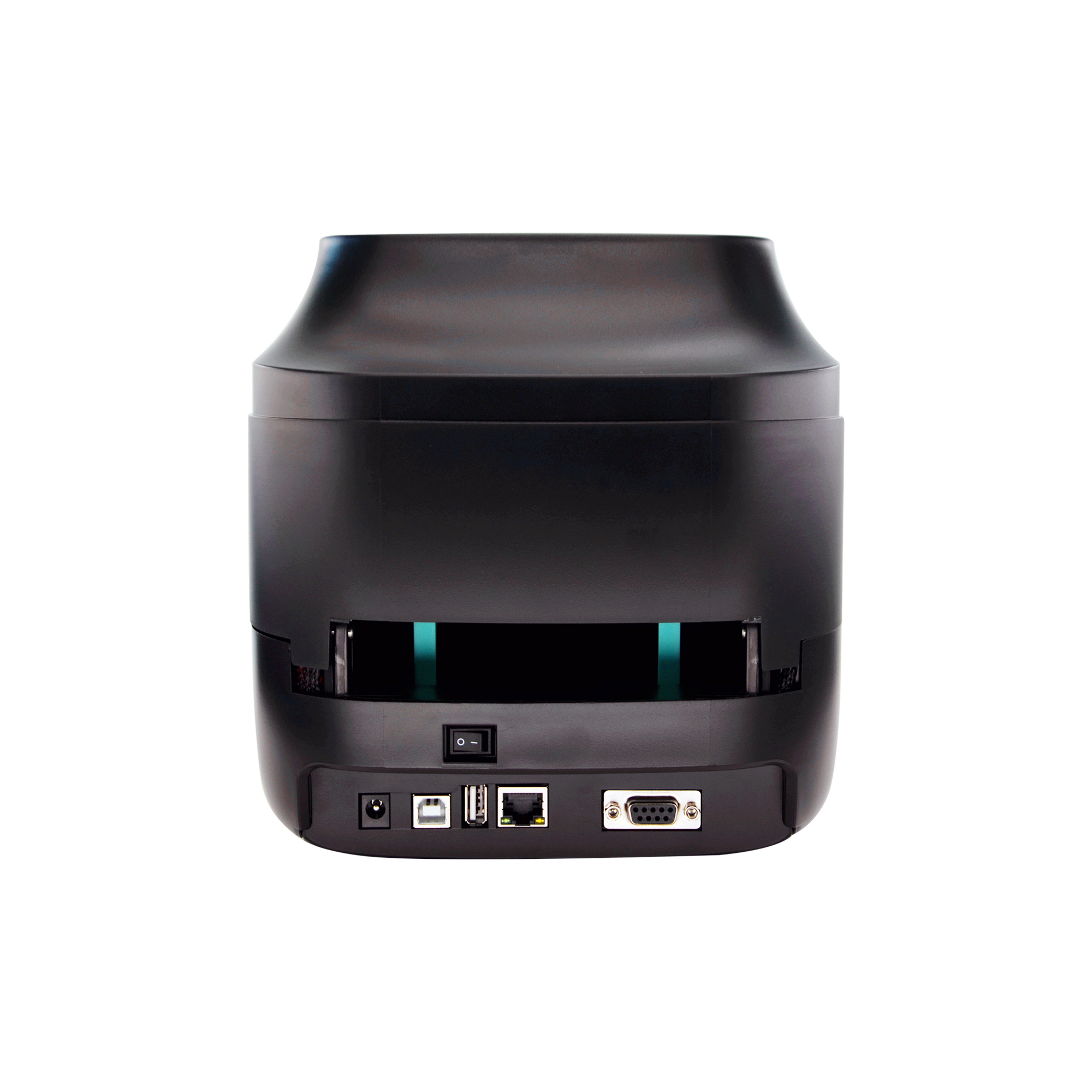

GA-2408T 4 Inch Desktop TT Barcode Printer (Standard)
- The barcode printer with linerless label certified
- User-friendly clamshell design
- Less maintenance required with easy to replace auto-cutter, print head and platen roller
- Internally scalable true type font engine
- Barcode Printer firmware emulates TSPL, EPL, ZPL, ZPL II, DPL
- Bartender free Windows driver and label design software
Share this product
Description
GA-2408T 4 inch desktop barcode printer supports 1D and 2D barcode printing,and features in Thermal Transfer pirinting & Direct Thermal printing mode based on your needs.This kind of desktop tt barcode printer is standard product,if your business demands other functions,products customized are well prepared immediately to meet your business.
| Level | Standard |
| Resolution | GA-2408T: 8 dots/mm (203DPI) |
| Printing Method | Thermal Transfer & Direct Thermal |
| Max. print speed | GA-2408T: 203mm(8″)/second |
| Max. print width | GA-2408T: 104 mm (4.09″) |
| Max. print length | GA-2408T: 25,400 mm (1,000″) |
| CPU | 400 MHz, 32 bits, ARM9 |
| Memory RAM | 128 MB SDRAM |
| Memory ROM | 128 MB Flash |
| Interface | •USB 2.0 High Speed 480Mbps •USB Host 2.0, for scanner or PC keyboard •Ethernet 10/100Mbps •RS-232 •Internal Bluetooth 4.0 (factory option) •Internal Wi-Fi (factory option) |
| Real Time Clock | Optional |
| Buzzer | Optional |
| Dealer options | • Guillotine cutter • Guillotine cutter for Linerless thermal label • Peeler |
| Sensors | • Head open sensor • Ribbon end sensor • Reflective sensor (moveable) • Transmissive sensor (moveable) |
| Power | External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W |
| User Interface | •1 power switch •1 button (Feed) •5 LEDs (Online, Error, Ribbon, Wi-Fi/Bluetooth, Communication status) |
| Internal fonts | •8 alpha-numeric bitmap fonts •True type font engine (need to download scalable font file) |
| 1D Barcode | Code 11，Code 39，Code 93，UPC-A，UPC-E，UCC-128，Codabar, EAN/JAN-8，EAN/JAN-13，Interleaved 2 of 5，ITF14，MSI Pleassy，PostCode，Telepen |
| 2D Barcode | QR Code，Micro QR Code，PDF417，Micro PDF417，MaxiCode，Aztec Code，Data Matrix |
| Rotation | Font and barcode support 0，90，180，270 degree rotation |
| Printer language | Compatible to TSPL, EPL, ZPL, ZPL II, DPL |
| Media type | Continuous, die-cut, black mark, fan-fold(outside wound), Linerless Label |
| Media width | 20~118 mm (0.7″ ~ 4.6″) |
| Media thickness | 0.06~0.254mm (2.36 ~ 10 mil) |
| Media core diameter | 25.4 mm (1″) |
| Label roll capacity | 127 mm (5″) OD |
| Label length | GA-2408T: 5 ~ 25,400 mm (0.2″ ~ 1,000″) |
| Physical dimension | 280mm(L) x 190mm(W) x 198.3mm(H) |
| Net Weight | 2.7kg |
| Enclosure | Clamshell with double-walled plastic |
| Ribbon | 300 meters long, max. OD 67 mm, 1″ core (ink coated outside) |
| Ribbon width | 30~110mm (1.18″~4.3″) |
| Safety regulation | FCC Class A，CE Class A，CCC，BIS，CB |
| Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
| Environmental concern | Comply with RoHS, REACH, WEEE |
| Accessories | •Driver and software CD •Quick start guide •USB cable •Power cord •1″ ribbon spindle x 2 •External universal switching power supply |
