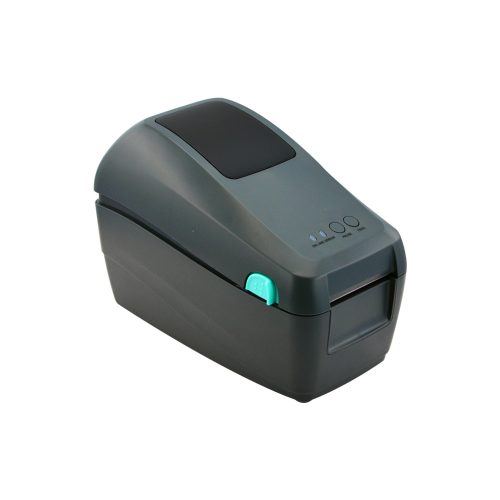

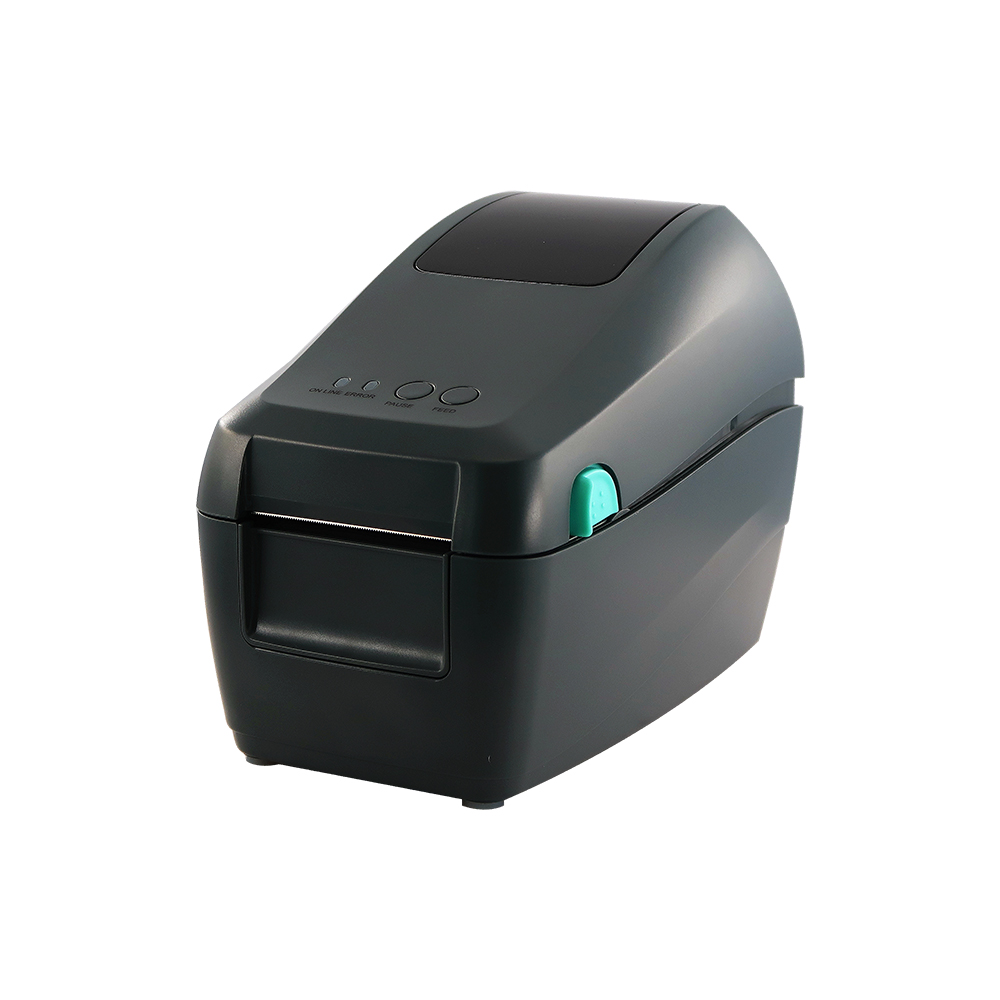

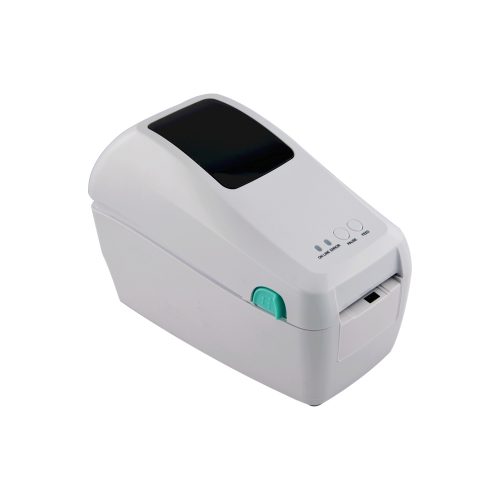

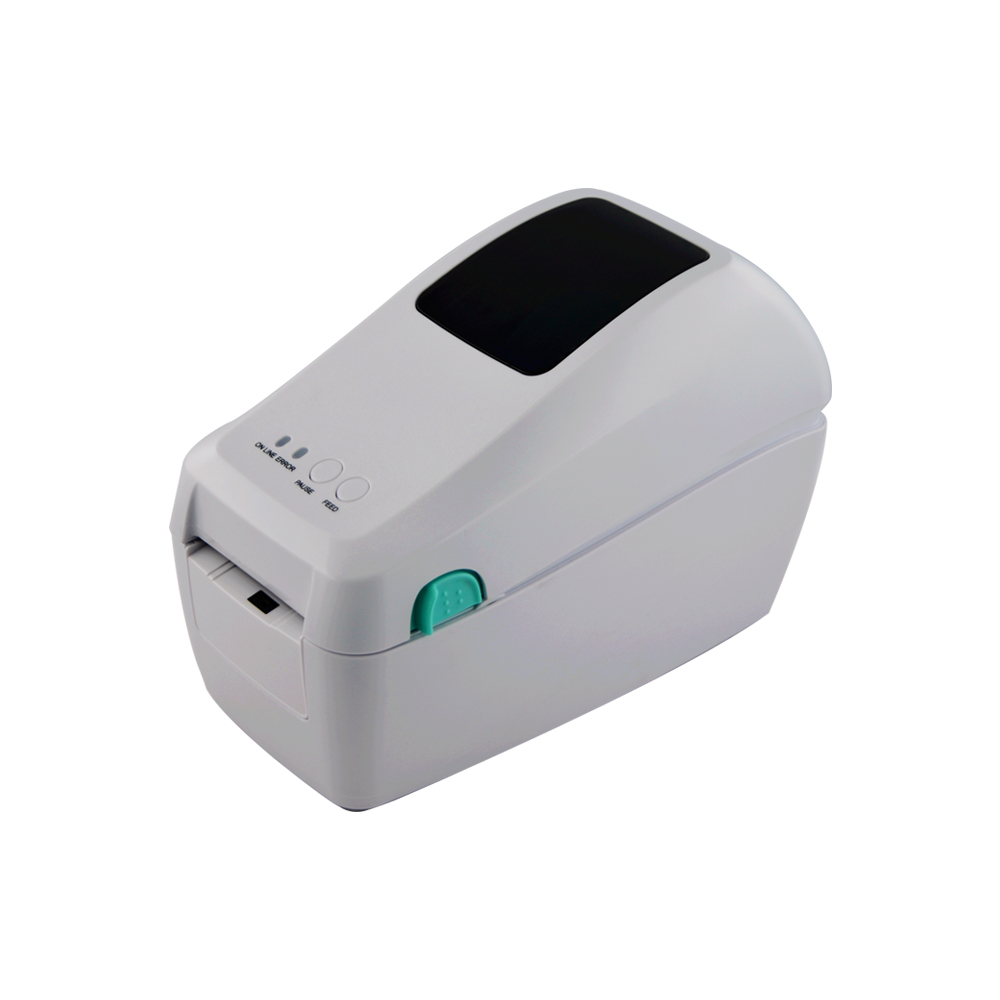

GS-2208D 2 Inch Desktop DT Label Printer

Desktop label printer designed for retail and healthcare labeling.
Easy loading print media, save your operation time.
Fast print speed up to 203 mm (8″) per second.
400 MHz 32-bit ARM9 processor with 64 MB SDRAM, 32 MB Flash, or 128 MB Flash memory.
Internally scalable true type font engine Multiple emulations pre-installed, integrate easily.

Category: Barcode Printer SKU: GS-2208D Tags: bar code printer GS-2208D label printer

Share this product

Description

GS-2208D 2” DT Direct Thermal desktop label printer: multiple emulations are pre-installed, making it simple to integrate, and labels for retail, healthcare, and factory production line are designed with this in mind.

The thermal barcode printer offers advanced features, maximum performance, and outstanding security for years of quality printing. It can be used in shipping, manufacturing, warehouse, logistics, retail, public utilities, and healthcare.

Designed for user-friendliness and flexibility, the standard thermal barcode label printer offers an intuitive label-printing solution and labeling applications where users demand a reliable, easy-to-use printing machine, with USB Ethernet Bluetooth connections to terminals, and easy loading print media to save operation time.

If you are demanding a thermal receipt printer, you would like to call us for an inquiry, and you could still download the mainly popularized thermal printer catalog for a preview.

Level	Standard Label Printer GS-2208D
Resolution	8 dots/mm (203DPI)
Printing Method	Direct Thermal Label Printer
Max. print speed	203 mm (8″)/second
Max. print width	54 mm (2.13″)
Max. print length	2,794 mm (110″)
CPU	400 MHz, 32 bits, ARM9
Memory RAM	64 MB SDRAM
Memory ROM	32 MB Flash / 128 MB Flash(factory option)

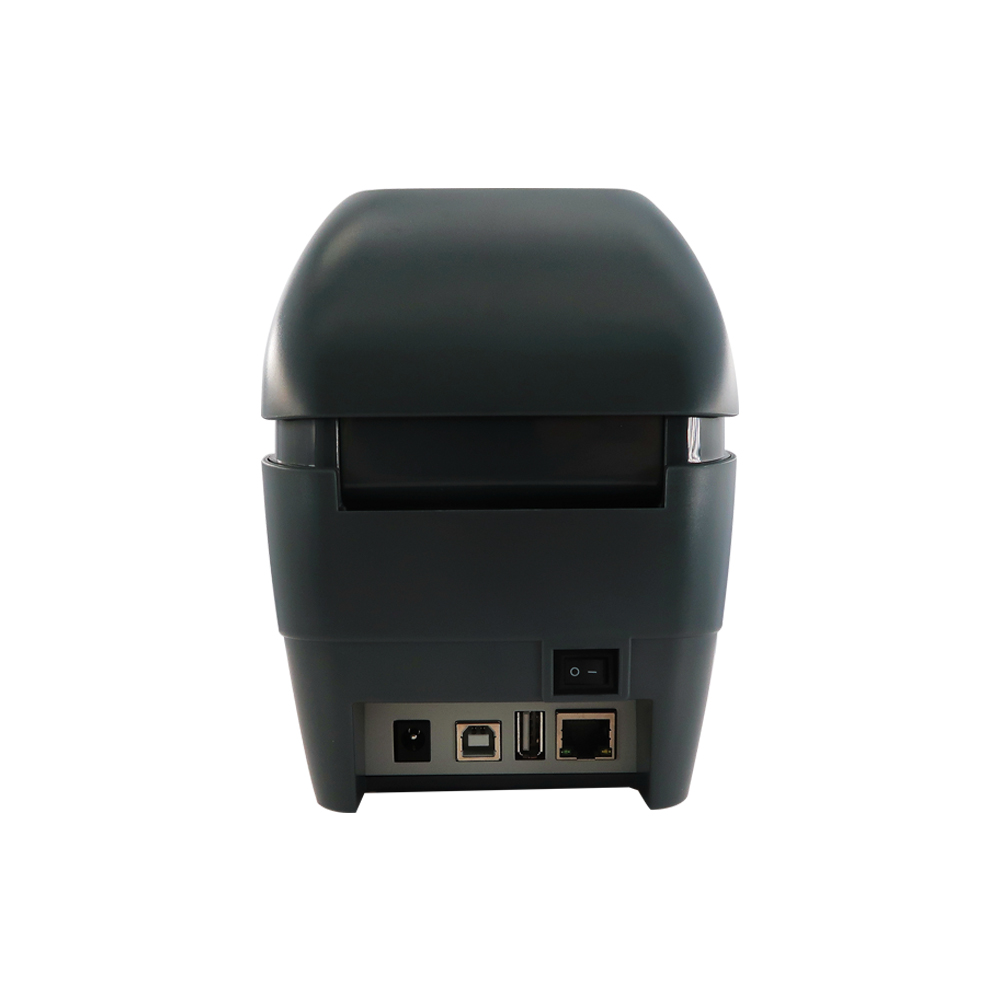

Interface	•USB 2.0 High-Speed 480Mbps •USB Host 2.0, for scanner or PC keyboard •Internal Ethernet 10/100Mbps •Internal Bluetooth 4.0 (factory option)
Real-Time Clock	N/A
Buzzer	N/A
Dealer options	•Guillotine cutter (full cut and partial cut)
Sensors	Head open sensor, Reflective sensor (moveable), Transmissive sensor (Fixed), Front-Reflective sensor
Power	External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W
User Interface	• 1 power switch • 2 buttons (Feed & Pause) • 2 LEDs (Online, Error)
Internal fonts	• 8 alpha-numeric bitmap fonts • True type font engine (need to download scalable font file)
1D Barcode	Code 11， Code 39， Code 93， Code 128 (subsets A， B， C)， UPC-A， UPC-E， UCC-128， Codabar， EAN/JAN-8， EAN/JAN-13， Interleaved 2 of 5， ITF14， MSI Pleassy，PostCode， Telepen
2D Barcode	QR Code，Micro QR Code，PDF417，Micro PDF417，Grid Matrix，MaxiCode，Aztec Code，Data Matrix
Rotation	Font and barcode support 0, 90, 180, 270-degree rotation
Printer language	Compatible to TSPL, EPL, ZPL, ZPL II, DPL
Media type	Continuous, die-cut, black mark, fan-fold, notched
Media width	18 ~ 65 mm (0.7″~2.5″)
Media thickness	0.06 ~ 0.19mm(2.36 ~ 7.48 mil )
Media core diameter	25.4 mm (1”)
Label roll capacity	127 mm (5″) OD
Label length	5~2,794 mm (0.2”~110”)
Physical dimension	129mm(W)x165.3mm(H)x244.3mm(D)
Net Weight	1.35kg
Enclosure	ABS plastic
Ribbon	N/A
Ribbon width	N/A
Environment condition	Operation: 5~40°C，25~85% non-condensing Storage: -40~60°C，10~90% non-condensing
Environment concern	Comply with RoHS, REACH, WEEE
Accessories	• Driver and software CD • Quick start guide • USB cable • Power cord • External universal switching power supply
