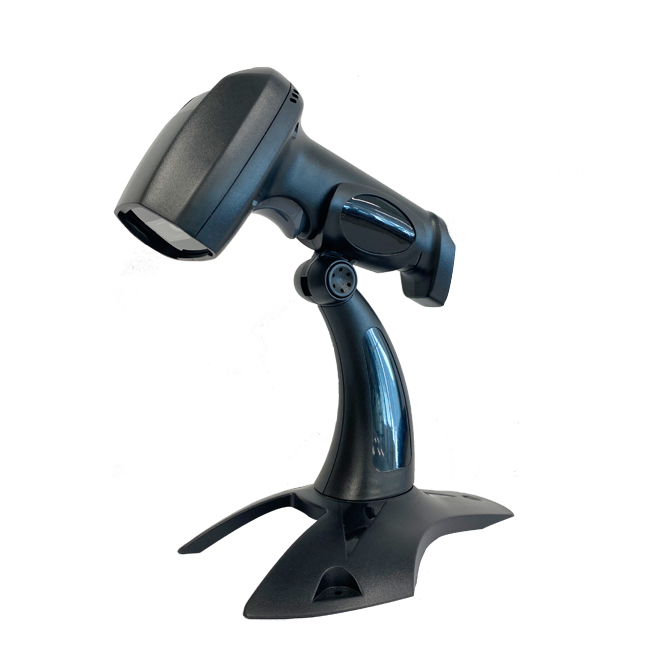

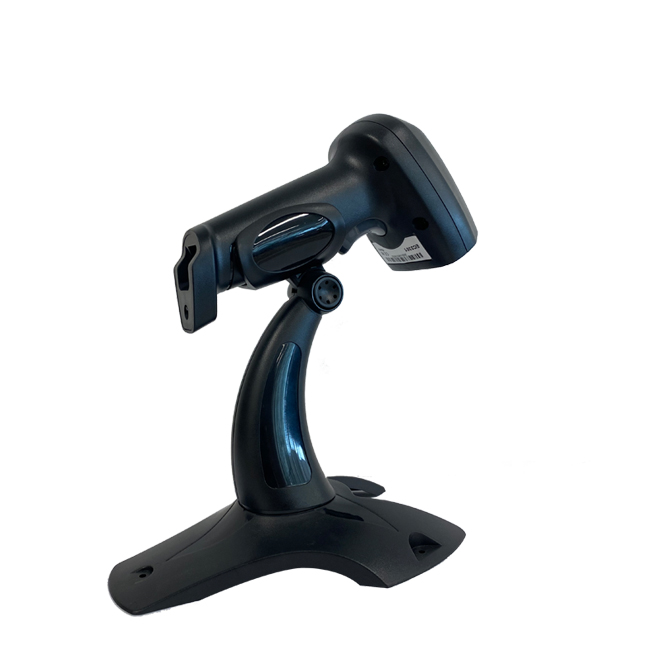

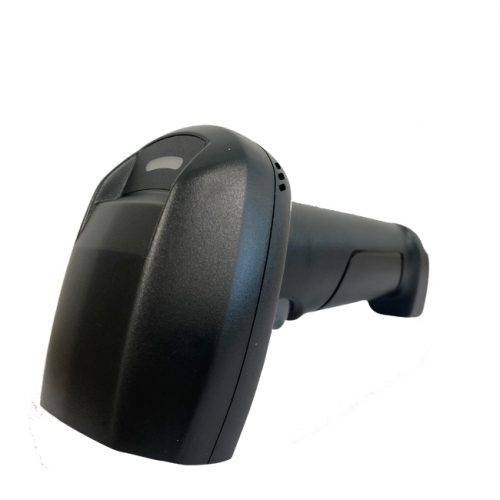

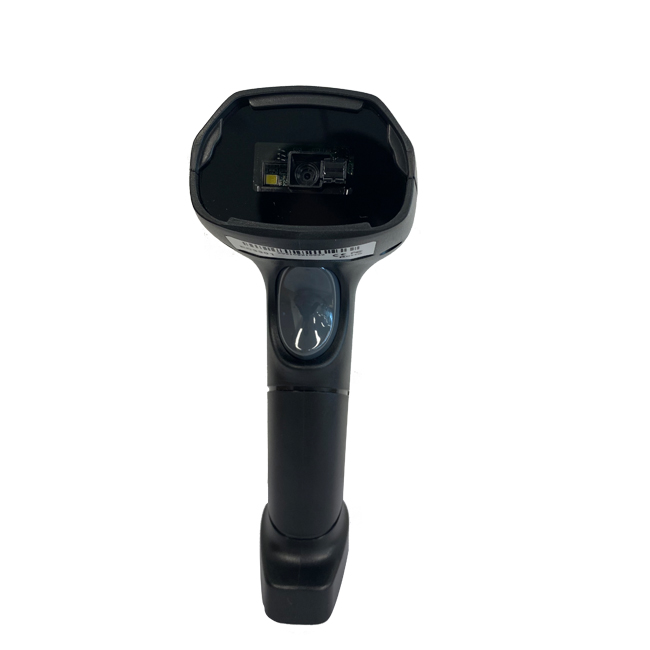

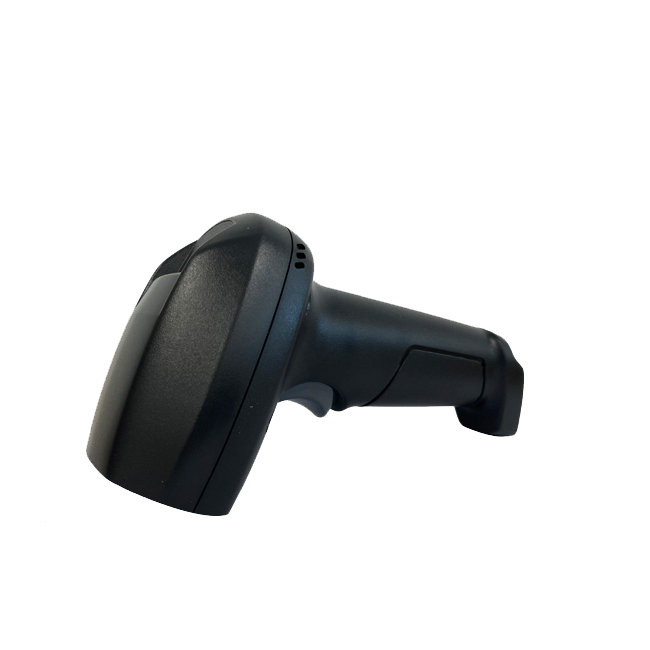

EC331 2D HandHeld Barcode Scanner
- Support Alipay, WeChat payment function
- Starting up quickly, easy to Plug and Play
- A 2D barcode scanner is applicable to retail, supermarket, pharmaceutical, logistics, manufacturing…
Share this product
Description
EC331 2D HandHeld Barcode Scanner may be applied to the retail, supermarket, pharmaceutical, logistics, manufacturing even inventory management based on its reading method technology and customized service. The wireless barcode scanner perceives two-dimensional barcodes to store data in two dimensions, rather than in just a series of black-and-white bars.
In terms of a leading barcode scanner manufacturer. Boost efficiency by enabling us to assist you with a wireless, wired, handheld, Bluetooth, USB, 2D, or scanner.
Physical Characteristics | |
Dimensions | 160mm x 64mmx 97mm |
Voltage | 5V |
Stand-by Current | 145mA |
Weight | 140.5g |
Starting Curren | 190mA |
Work Current | 380mA |
Performance Characteristics | |
Image (Pixels) | 640 pixels (H) x 480 pixels (V) |
Light Source | (Aimer) Red color LED; (Illumination) White color LED |
Roll / Pitch / Yaw | 360°, ±65° , ±65° |
Print Contrast | 20% minimum reflective difference |
Interfaces Supported | USB |
Motion Tolerances | >0.4m/s |
User Environment | |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -30°C to 70°C |
Humidity | 5% to 95% relative hum idity,non-condensing |
Shock Specifications | Designed to withstand 1.2m(5’) drops |
Ambient Light Immunit | 0-100,000 Lux. |
Decode Ranges | |
Code39(5mil) | 20mm-110mm |
Code39(13mil) | 30mm-250mm |
Integration Options | |
Options | stand |
