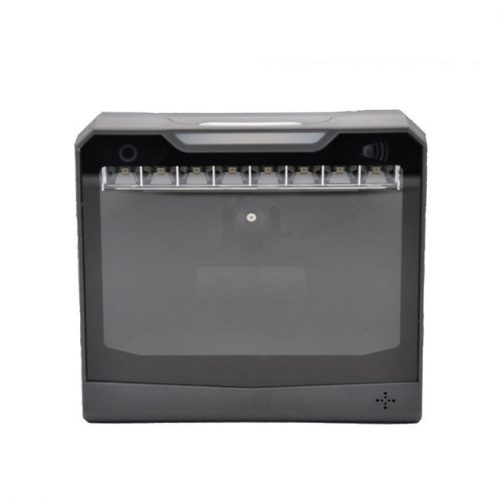

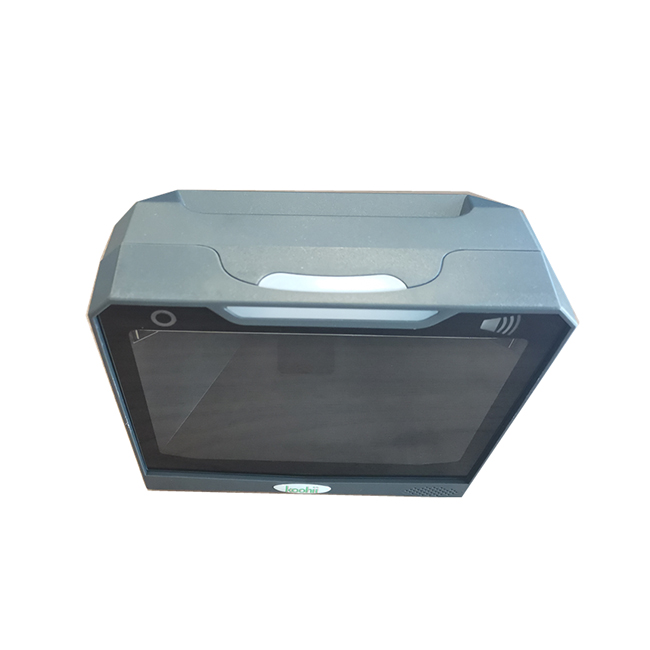

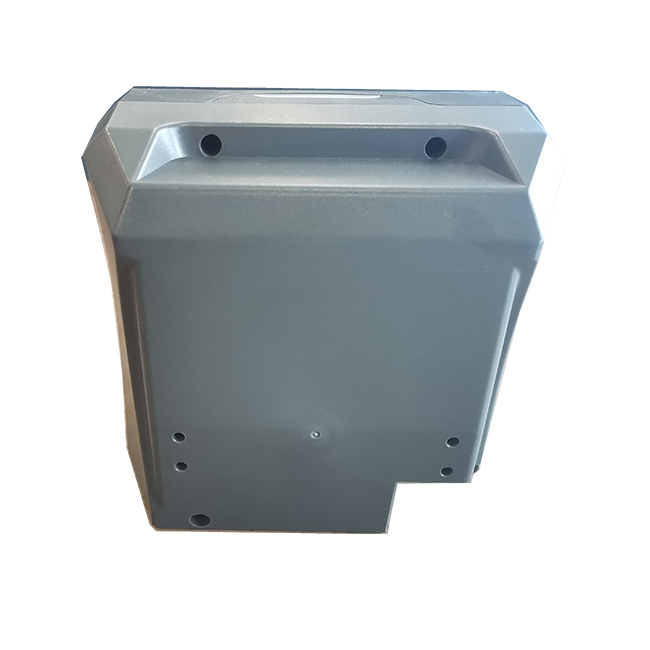

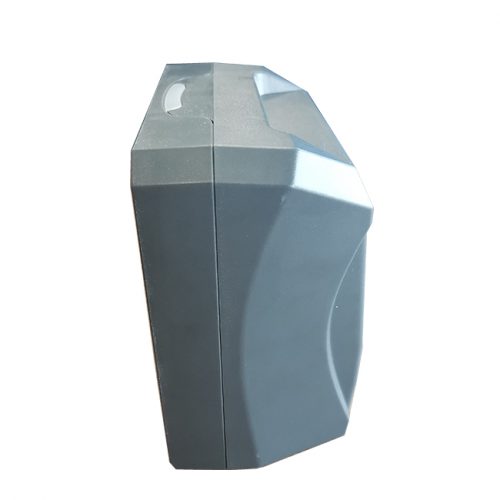

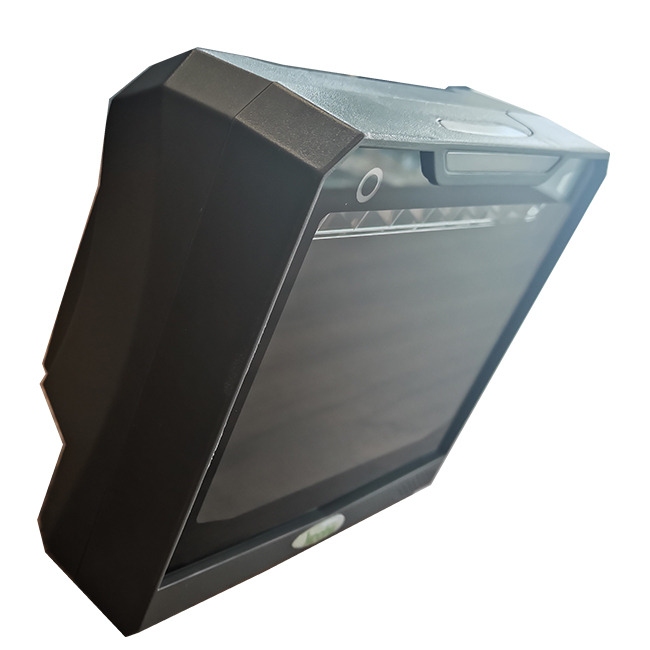

OD4600 Pos System Platform Barcode Scanner supports multi-languages in different countries and all kinds of OS like Windows XP,7,8,10, android, IOS, and Linux, easily switched into all kinds of pos system machines for payment scanning, and the platform barcode scanner can be also suitable for new retail industry, paper barcode scanning, inventory management, or electronic screen bar code scanning.
Platform barcode scanning machines are easily configurable, fast, and accurate to combine high-performance barcode scanner technology with mobile devices, trying to add unrivaled speed, flexibility, and accuracy to convert workflow and automate business processes. If your businesses need more convenience and enhancement in the retail industry, you could call us to get more cooperation.
A POS system with scanner can provide significantly more functionality than a simple cash register, and you are capable of downloading the product catalog to gain more knowledge of other types of barcode scanners for pos.
Performance | |
product model | OD4600 Barcode Scanner |
Image (Pixels) | 1280 pixels (H)x 1024 pixels (V) |
Light Source | Red color LED |
Field of View | 47°(Horizontal) , 38°(Vertical) |
Roll / Pitch / Yaw | 360°(Roll), 80°(Pitch) ,70°(Yaw) |
Print Contrast | 20% minimum reflective difference |
Scan Rate | Smart detects up to 350 scans/per second |
Motion Tolerances | >2m/s |
Minimum Resolution | Bluetooth, USB |
Motion Tolerance | ≥3.9 mil 6mil(0.127mm) 40~190mm 8mil(0.2mm) 35~210mm |
Scan depth of field | 10mil(0.26mm) 30~300mm 13mil(0.33mm) 30~350mm 20mil(0.5mm) 30~400mm |
Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc | |
Barcode type | PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39, DataMatrix, etc. |
Electrical | |
Voltage | 5±5% VDC |
Operating current | 170mA(working);50mA(standby);150mA(operating) |
Interfaces Supported | USB |
Environmental | |
Operating temperature | -20°C to 60°C |
Storage temperature | -30 ℃ to 70 ℃ |
Humidity | 5% to 95% relative humidity, non-condensing |
Ambient Light | 0-100,000 Lux |
Drop | Designed to withstand 1.5m drops |
Physical | |
Dimensions (LxWxH) | 151mm L * 142mm W * 84mm H |
Gross weight | 433.5g |
Material | PC |
Color | black |
Accessories | scanner, user manual, cable |
