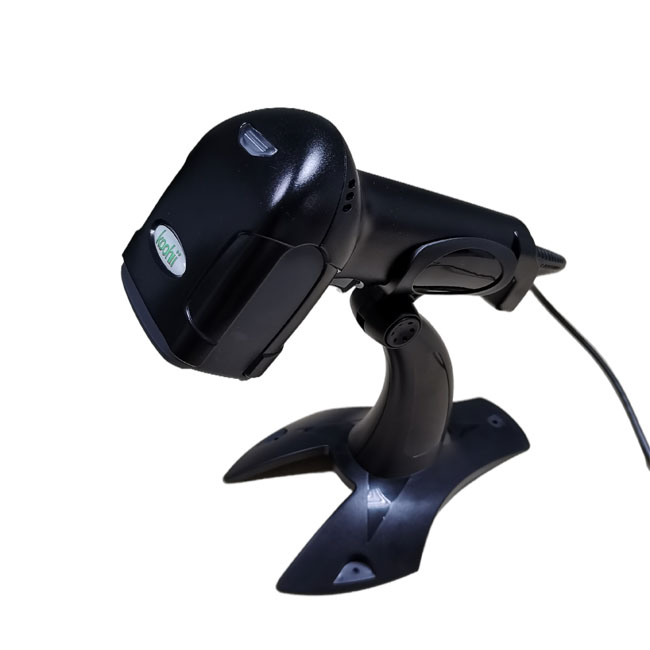

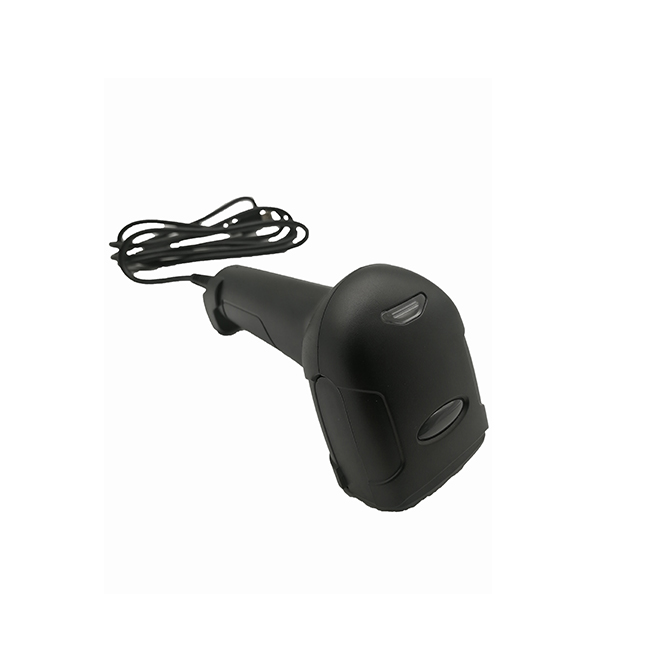

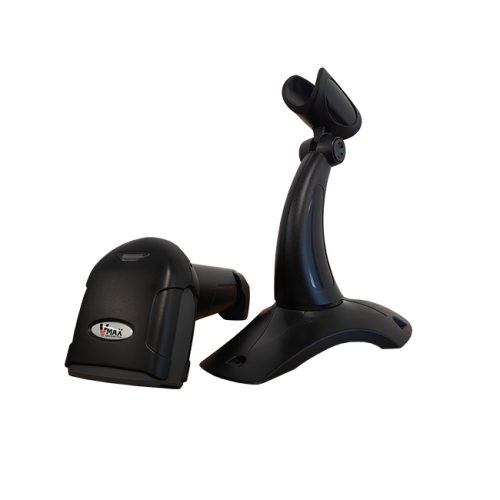

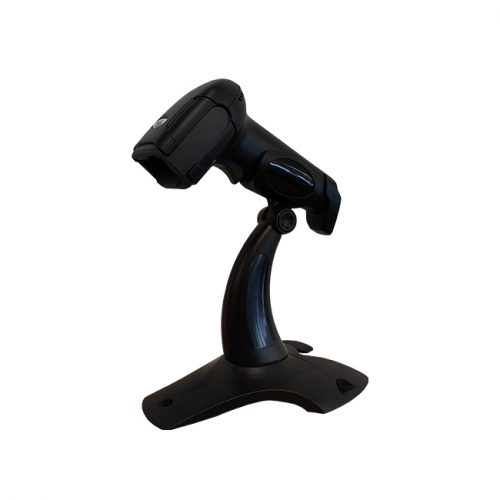

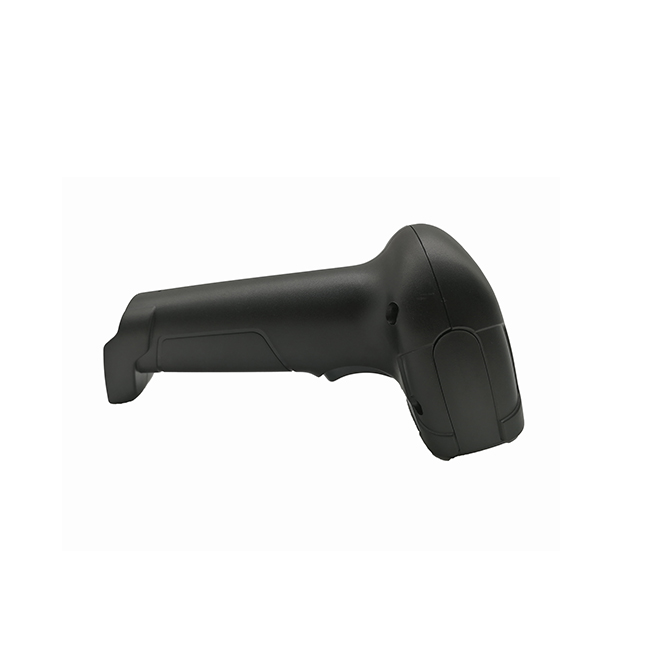

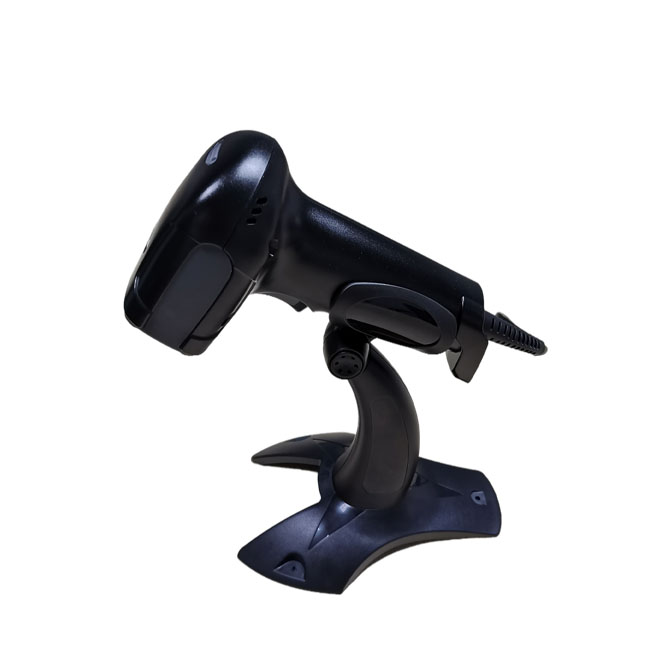

EC330 Wired Handheld Barcode Scanner features a variety of connectivity choices like USB RS232, allowing flexible development in any setting demand easy to set up and easy to use, providing fast, reliable code reading in an ergonomic, ultra-light shape and used with or without wire length customized, and USB barcode scanner makes configuration simple to enable your bar codes read more smoothly in a warehouse, store, or hospital business, even used as a QRcode scanner in the retail businesses.
USB Barcode Scanner is a durable and simple-to-use scanner that lets you collect data accurately for instant business organization, then you could find a summary of the barcode scanners and download the catalog of numerous barcode readers according to your requirements.
Scan Performance | |
Model No. | EC330 |
Scan mode | Automatic/handheld Barcode Scanner |
Alarm mode | LED light alarm, Buzzer alarm |
Read speed | 300 scans/sec |
Resolution | 4mil ( 640pH x 480pV ) |
Scan angle | 45°(horizontal);30°(vertical) |
Barcode density | 4mil |
Symbol contrast | >10% |
Maximum light intensity: | 10,000 Lux(FL) |
LED/sensors | LED indicators and beep tones |
Scan depth of field | 5 mil(Code 39) 35~165mm |
13 mil(UPC/EAN) 30~280mm | |
20 mil(Code 128) 30~400mm | |
10 mil(QR code) 15~180mm | |
Revolve angle | roll65°,pitch35°,yaw45° |
Barcode type | Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN,ETC. |
Electrical | |
Voltage | DC 5V±5% |
Operating current | 363mA(working); 70mA(standby); 187mA(operating) |
Interfaces | RS232,USB |
Light | Visible Red light 630+10nm |
Light level | Can resistive the Interference of lamp-light and sun-shining |
ESD protect | 15KV |
Electric Safety | En55022: 2006+A1: 2007 En55024: 1998+A1: 2001+A2: 2003 |
