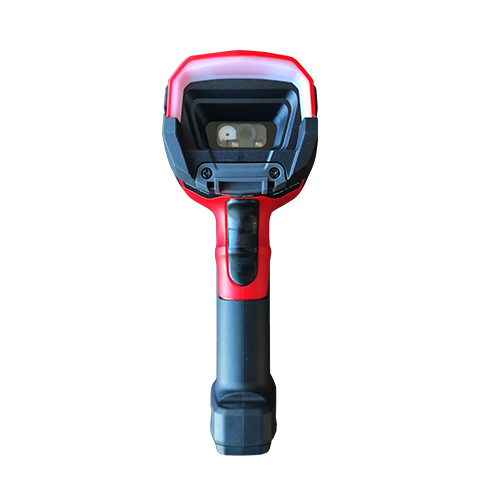

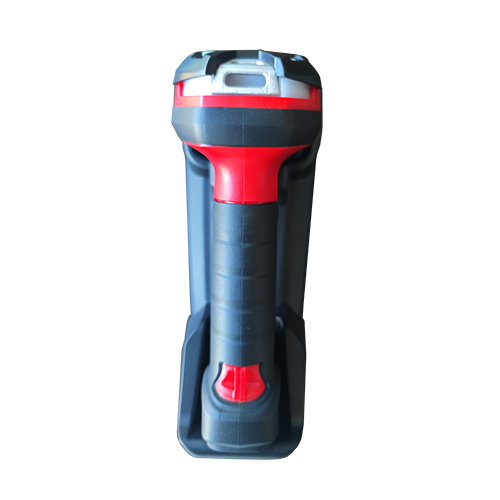

VS300 Durable Handheld Industrial Barcode Scanner
- An industrial barcode scanner is compatible with Bluetooth 4.2 for faster communications and lower power consumption.
- A single charge can scan 56% more than similar products of barcode readers
- A wireless version of the VS302 industrial barcode scanner with a dock: that supports USB and RS232
- Dustproof, waterproof performance up to IP67, durability more than the same type of products 23%
Share this product
Description
VS300 Durable 2D Handheld Industrial Barcode Scanner designed for being able to handle any business situation, with high scanning accuracy of 3 mils, whose DPM code algorithm developed by VS200 series of fixed bar code readers are optimized for hand-held bar code readers to achieve flexible reading and high-speed reading.
The VS 300 industrial barcode scanner features the highest drop, roll, and seal resistance in its class. Dustproof, waterproof performance up to IP67, durability more than the same type of products 23%.
A wireless version of VS302 is optional. The VS302 industrial barcode scanner is compatible with Bluetooth 4.2 for faster communications and lower power consumption. A single charge can scan 56% more than similar products.

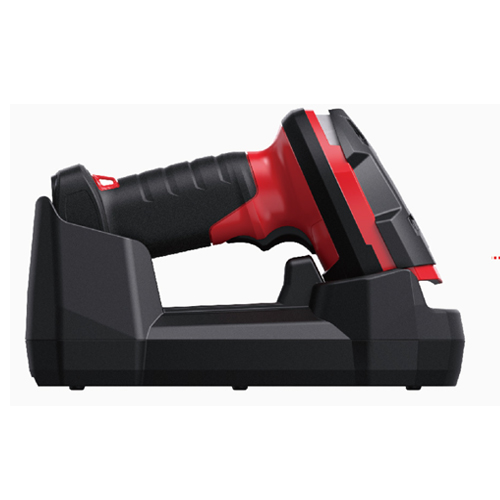

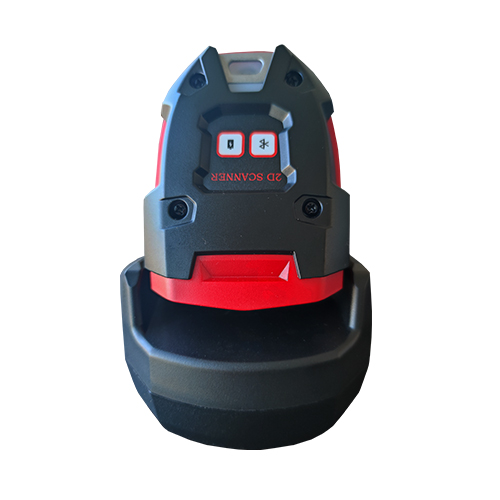

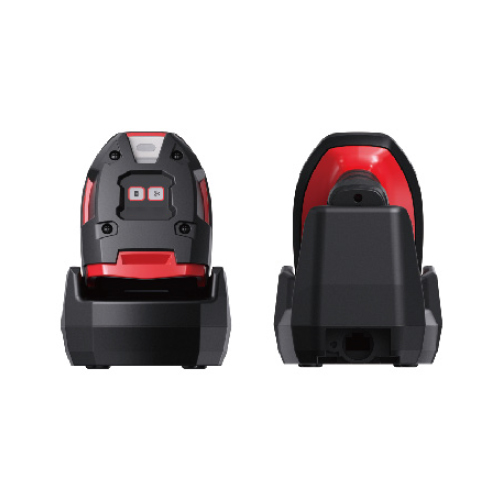

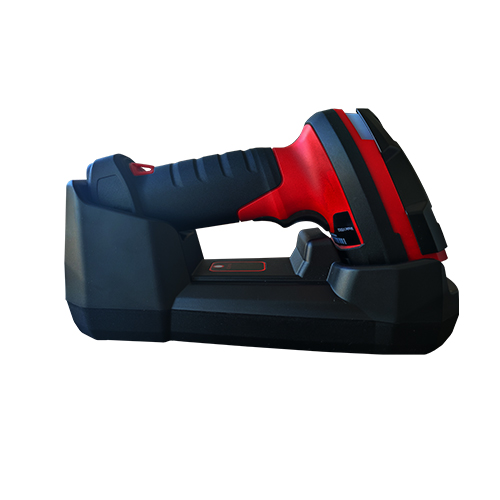

A wireless version of the VS302 with a dock. The wireless version of the VS302 industrial barcode scanner supports USB and RS232, and serial ports with a baud rate of 9600bps and 1152bps.
If you want to gain more details of functions, you could download the product catalog first and call us for assistance.
| Module No. | VS300 | (Optional wireless section VS302) |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 1280 X 1024 | |
| Frame Rate | 60fps | |
| Lens | Focal Distance | Fixed Focal Distance |
| Field of View | Horizontal Angle: 44° | |
| Vertical Angle: 34° | ||
| Light Source | Illumination | Red LED(optional blue and white) |
| Aimer | Laser Aiming | |
| Indicator | Decoder Light | |
| Symbology Decode | 1-D | Codabar 、Code 3 9 、Code 32 Pharmaceutical (PARAF) 、Interleaved 2 of 5 、NEC 2 of 5, Code 93, Straight 2 of 5 lndustial、Straight 2 of 5 IATA, Matrix 2 of 5, Code 11 、Code 128 、GSl-128, UPC-A, UPC- E, EAN/JAN-8 、EAN/JAN- 13 、MSI, GS1 DataBar Omnidirecti onal, GS1 DataBar Limited 、GS1 DataBar Expanded 、China Post(Hong Kong 2 of 5) 、Korea Post |
| 2-D | Codeblock A, Codeblock F 、PDF417, Micro PDF417 、GS1 Comp osite Codes 、QR Code 、Data Matrix 、MaxiCode 、Aztec 、HANXIN | |
| Mini Accuracy | ≥3mil | |
| Input & Output | Serial Communication | Communication Standard: Conform to RS232 C |
| Transmission Speed : 9600、192 0 0、38400、57600、115 2 00 bps | ||
| USB | Communication Standard: Conform to USB Standard Protocol | |
| Rated Value | Voltage | SVDC ±5% |
| Current | Stand-by Current: 160 mA | |
| Operation Current: 316 mA | ||
| Power Consume | 1.58W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45℃ |
| Storage Temperature: -10 ~ +50℃ | ||
| Humidity | Relative Humidity: 5% ~85% (No condensation） | |
| Storage Environment Humidity: 5% ~85% (No condensation） | ||
| Protection | IP67 | |
| Ambient Light | Sunshine:10000lux、Nncandescent:6000lux、Fluorescent:2000lux | |
| Fall | Withstand multiple 12m drops to the concrete floor (deflection allowed 5° ) | |
| Machine | Dimensions | 191. 8mm x 130.2mm x 76.9mm |
| Weight | 356.5g | |
| Shell material | PC | |
| Certification | CE FCC RoHS ISO9000 IOS9001 |
