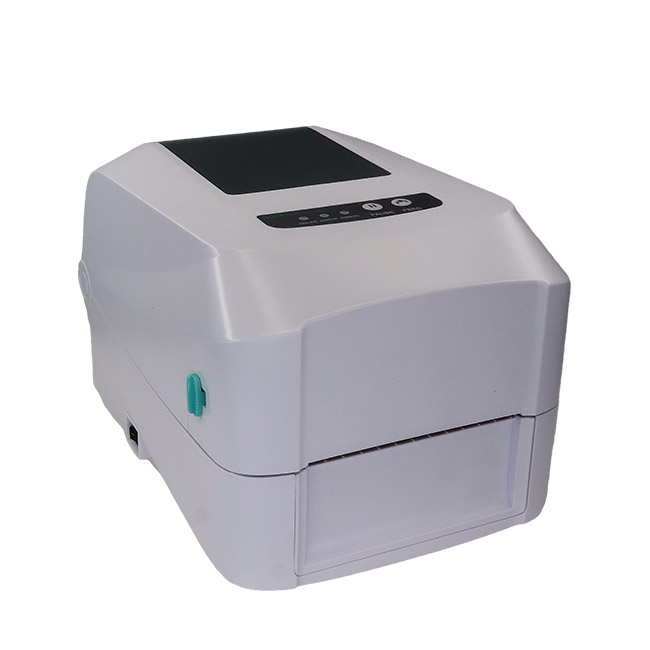

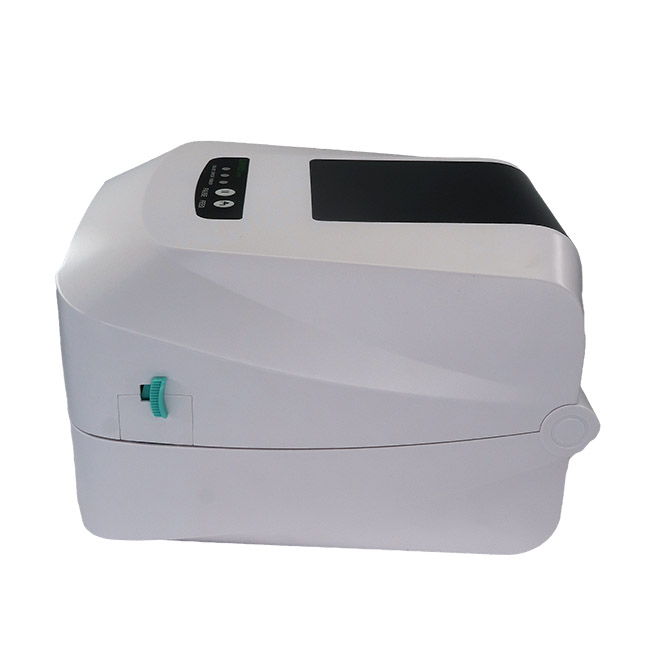

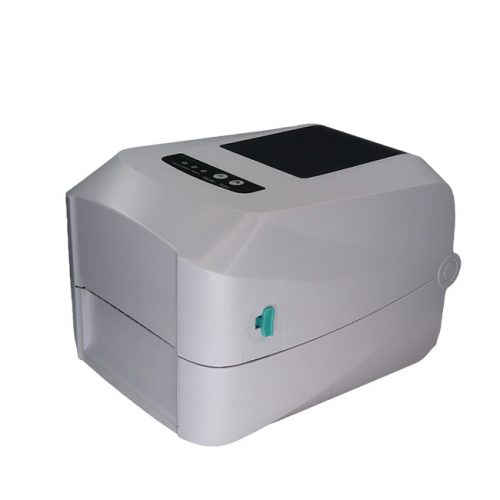

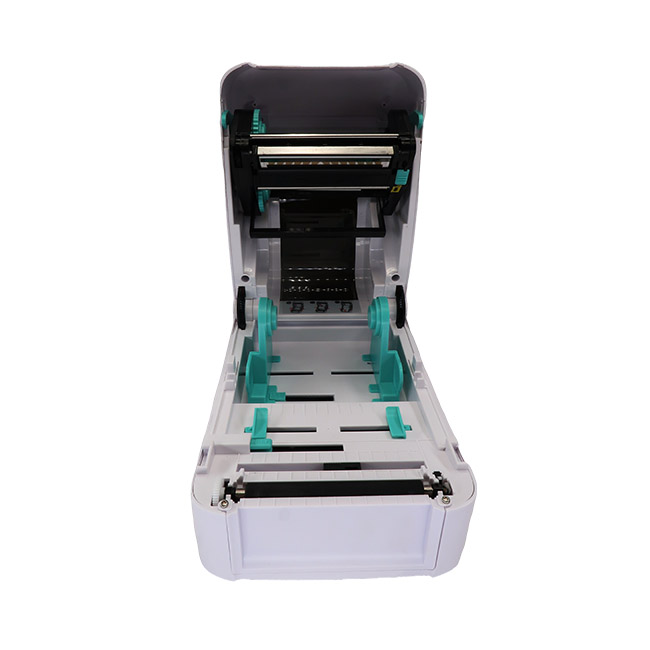

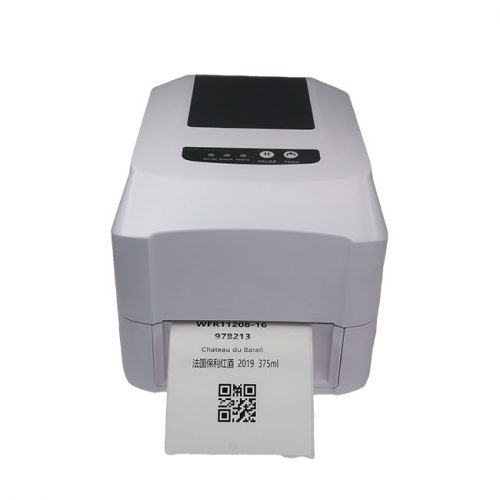

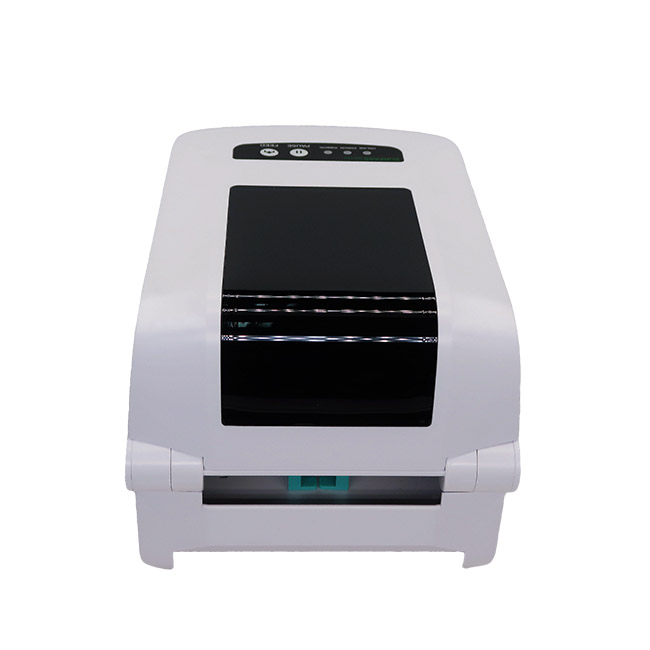

GS-3405T 4 Inch TT Desktop Barcode Printer

TT barcode printer with flexible connectivity options including USB, RS232, Ethernet, Bluetooth, and Wi-Fi.
USB Host for standalone printing applications, support scanner or PC keyboard connection.
Multiple emulations are pre-installed for easy integration into your existing systems.
Convenient printer utility, easy to set up.
BarTender Free Windows driver and label design software.
Barcode printer has a printing speed of up to 127 mm (5″) per second for 300 DPI.

Category: Barcode Printer SKU: GS-3405T Tags: 4 inch printer barcode printer GS-3405T thermal printer

Share this product

Description

GS-3405T 4 Inch TT Thermal Transfer Desktop Barcode Printer provides improved performance and a broader range of compatibility.USB, RS232, Ethernet, Bluetooth, and Wi-Fi are just a few of the communication choices available. Retail POS, shelf labeling, product marking, healthcare, inventory management, shipping, high-resolution barcodes and graphics printed, food ingredient labeling, and office applications are all covered by this barcode printer system with an economical choice.

4 Inch Barcode Printer with receipt printing makes retailers available to market directly to customers and holds them returning with advertisements and promotions. We have various models to fulfill the demands of any business, whether it is a desktop, mobile, or kiosk printer.

And other thermal printing mode barcode printers in 203 DPI can be picked for any application demands. But if users require functions and configurations customized, here is more convenient to contact us with specifications, or download the printer catalog for preview.

Level	Standard
Resolution	GS-3405T: 12dots/mm (300DPI)
Printing Method	Thermal Transfer & Direct Thermal
Max. print speed	GS-3405T: 127mm (5″)/second
Max. print width	GS-3405T: 108.4 mm (4.27″)
Max. print length	GS-3405T: 1,016 mm (40″)
CPU	400 MHz, 32 bits, ARM9
Memory RAM	64 MB SDRAM
Memory ROM	32 MB Flash / 128 MB Flash(factory option)
Interface	•USB 2.0 High-Speed 480Mbps •USB Host 2.0, for scanner or PC keyboard RS-232(factory option) •Internal Ethernet 10/100Mbps(factory option) •Internal Bluetooth 4.0 (factory option) •Internal WiFi (factory option)
Real-Time Clock	N/A
Buzzer	N/A
Dealer options	•Guillotine cutter (full cut and partial cut) •Peeler
Sensors	•Head open sensor •Ribbon end sensor •Black mark reflective sensor (moveable) •Gap transmissive sensor (moveable)
Power	External universal switching power supply Input: AC 100-240V，2.5A，50-60Hz，Output: DC 24V，2.5A，60W
User Interface	•1 power switch •2 buttons (Feed & Pause) •3 LEDs (Online, Error, Ribbon status)
Internal fonts	•8 alpha-numeric bitmap fonts •True type font engine (need to download scalable font file)
1D Barcode	Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Plessy, PostCode, Telepen
2D Barcode	QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data Matrix
Rotation	Font and barcode support 0, 90, 180, 270 degree
Printer language	Compatible to EPL, ZPL, ZPL II, DPL, TSPL
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	20 ~ 118 mm (0.7″ ~ 4.6″)
Media thickness	0.055 ~ 0.19 mm (2.16 ~ 7.4mil)
Media core diameter	25.4 mm (1″)
Label roll capacity	127 mm (5″) OD
Label length	GS-2406T: 5 ~ 2,794mm (0.2″ ~ 110″) GS-3405T: 5 ~ 1,016mm (0.2″ ~ 40″)
Physical dimension	280mm(L) x 200mm(W) x 182mm(H)
Net Weight	2.5kg
Enclosure	ABS plastic
Ribbon	300 meters long, max. OD 67mm, 1″core (ink coated outside)
Ribbon width	30 ~110 mm (1.18″ ~ 4.3″)
Environment condition	Operation: 5~40°C, 25~85% non-condensing Storage: -40~60°C, 10~90% non-condensing
Environment concern	Barcode Printer Comply with RoHS, REACH, WEEE
Accessories	•Driver and software CD •Quick start guide •USB cable •Power cord •External universal switching power supply •1″ ribbon spindle x 2
