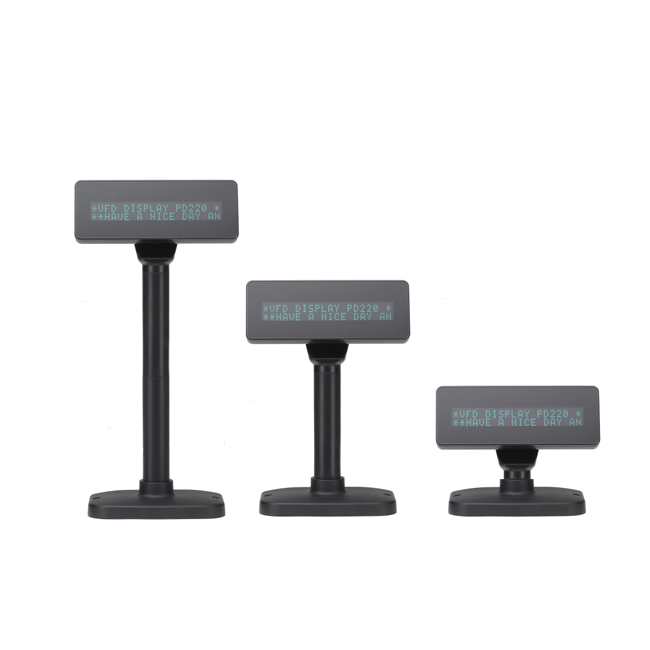

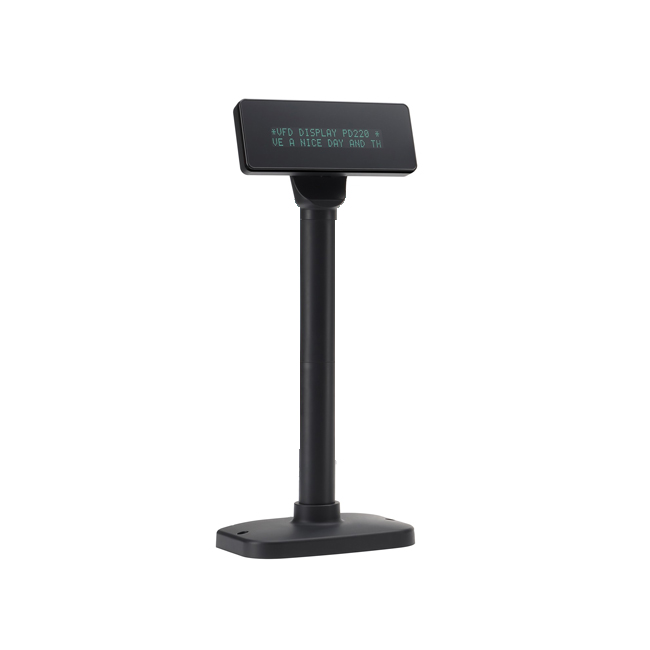

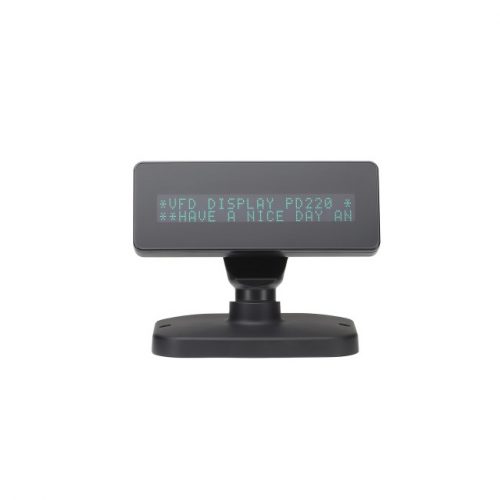

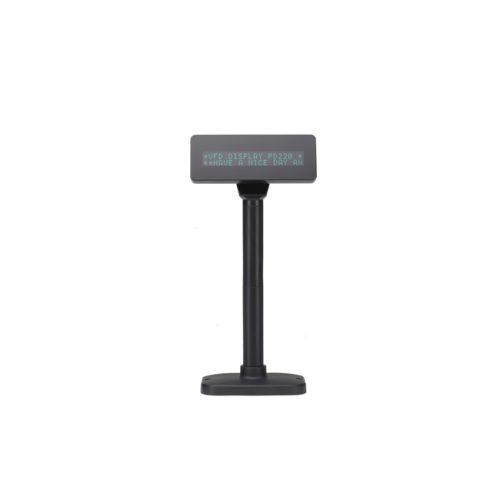

PD220V-III Vacuum Fluorescent Display

Vacuum Fluorescent Display supports 11 command modes including EPSON etc.
OPOS / JPOS driver is standard for VFD.
20-column x 2-line dot matrix in a wide viewing angle.
VFD is easy connectivity to a wide range of POS products.
Power supply from 5V to 12V to prevent any mindless use of improper power input.

Category: VFD/Pole Customer Display SKU: PD220V-III Tags: key product pole display Vacuum Fluorescent Display vfd vfd display

Share this product

Description

PD220V-III Vacuum Fluorescent Display supports standard drivers of OPOS / JPOS and optional a variety of languages to display contents’ characters in different countries, and the VFD pole display monitor can be customized display properties with 40 characters about order amount, goods number, or goods price according to retailers’ needs.

VFD combines the benefits of LEDs and LCDs and the Vacuum Fluorescent Display is as bright as LEDs but simpler to read, they are able to display numbers and words, which can be adjusted for the best viewing angle and the blue-green fluorescent color is comforting to the eyes.

You can click here to gain a preliminary understanding of how a Vacuum Fluorescent Display works, and call us to get a deeper understanding.

The more you could download the VFD display and other pos machines’ product catalogs to fit your business.

General
Display Method	Vacuum Fluorescent Display (Blue-green)
Number of characters	40(20 columns x 2 lines)
Brightness	500-1000 cd/m2
Character font	5 x 7 dot matrix
Character type	95 Alphanumeric,32 International Characters
Character size	6.7(H) x 3.7(W)mm
Dot Size (X x Y)	0.80 x 0.70 mm
Download characters	9 characters
Panel Dimension	168(W) x 66.5(D) x 28(H)mm
Pole Dimension	Per support leength:106.5(L) x 19(Dia)mm
Base Dimension	168(W) x 66.5(D) x 28(H)mm
Viewing Angle	Max.60°
Horizontal Rotation	Max.355°
Weight	Approx.880 grams
Commands Mode
UITMATE,LD220,EPSON POS D101,AEDEX,UTC/S,UTC/P, ADM788,DSP800,CD5220,EMAX,LOGIC CONTROL
Language Support
FRANCE, GERMANY, U.K, DENMARKI, SWEDEN, ITALY, SPAIN, JAPAN, NORWAY, DENMARKII, SLAVONIC, RUSSIA, Portuguese，Canadian，CP860，WPC1252，CP857(TURKISH），polish，WPC1250，WPC1253（GREEK），WPC1255(Hebrew），WPC1251，CP866，CP852，CP737(DOSgreek）,CP858, CP864（Arabic）,Farsi(Lran)
Interface	RS-232 (serial) /USB
Baud	Direct connection 9600 or 19200bps
MTBF	30000 hours
Consumption	5-24 VDC
EMC standards Safety standards	FCC, CE，ROHS
