How does a VFD display work ?

What is about vacuum fluorescent display ?

A vacuum fluorescent display performs mostly as cathodoluminescence principle, related to a cathode ray tube but operating on much lower voltage levels. A phosphor-coated carbon anode for every tube of such a VFD is inundated by electromagnetic radiation genetated from the electrode light source.

vfd vacuum fluorescent display

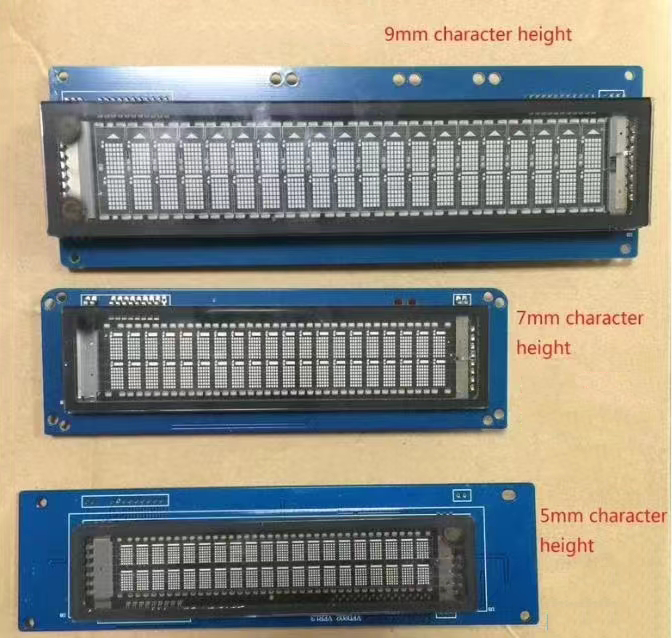

A VFD display is composed of microfibrils (heating systems), grids, and phosphor anodes that are all secured inside of the rectangular or square vacuum tube.

The only difference between the VFDs is the amount of anodes and grid pins, as well as the reference voltage.

what is the VFD Display

Vacuum Fluorescent Display provides filaments that create electron density. Filaments function as a Warm Electrode. When subjected to heat by an electric current, filaments produce electrons.It also contains (luminescence) cathodes, which are employed form the digits and letters.

Thin metal grids encompass the anodes, trying to control the dissemination of electron density from the filaments to the anodes.

Whenever the charged particles transmitted by the filaments attack the luminescence, it lights up.

A vacuum fluorescent display, compared to a liquid crystal display, transmits extremely strong light with contrast ratio and also can assistance display components of various color combinations. VFD illumination statistics seem to be typically around 640 cd/m2, with high-brightness VFDs functioning at 4,000 cd/m2 and investigational modules achieving as high as 35,000 cd/m2 based mostly on drive voltage and timeframe.

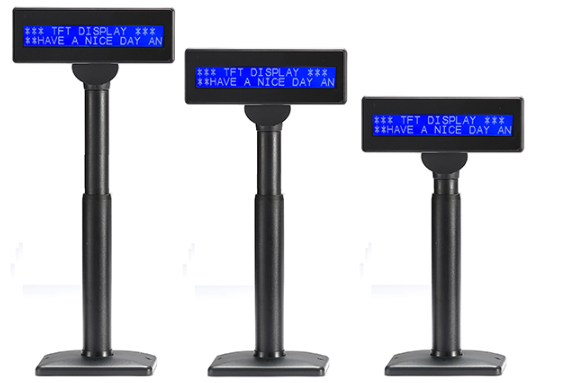

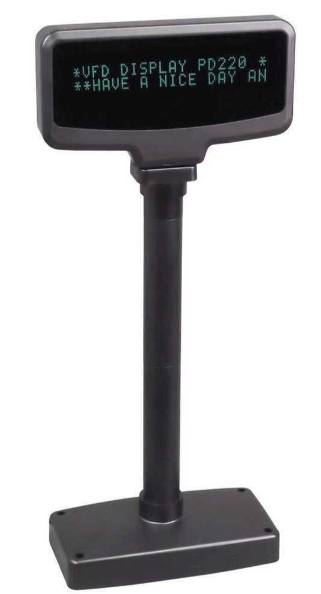

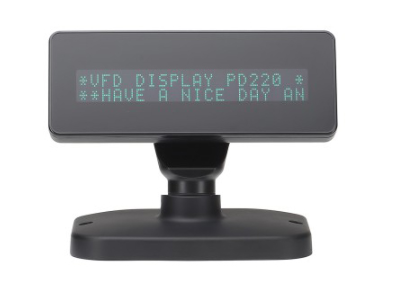

Blue-White display monitor for customer display

The colour scheme (which ultimately decides the existence of the luminescence) and display brightness get a major impact on the tube’s entire life, that could span from as little as 1,500 hours for a vibrant red VFD to 30,000 hours for the more popular green ones.

VFD displays could really display seven-segment numbers and letters, multi-segment alpha-numeric character types, or distinctive alphabets and signifiers in a dot-matrix layout. In procedure, the formation of the image that can be displayed is restricted merely by the configuration of the luminescence on the anode
