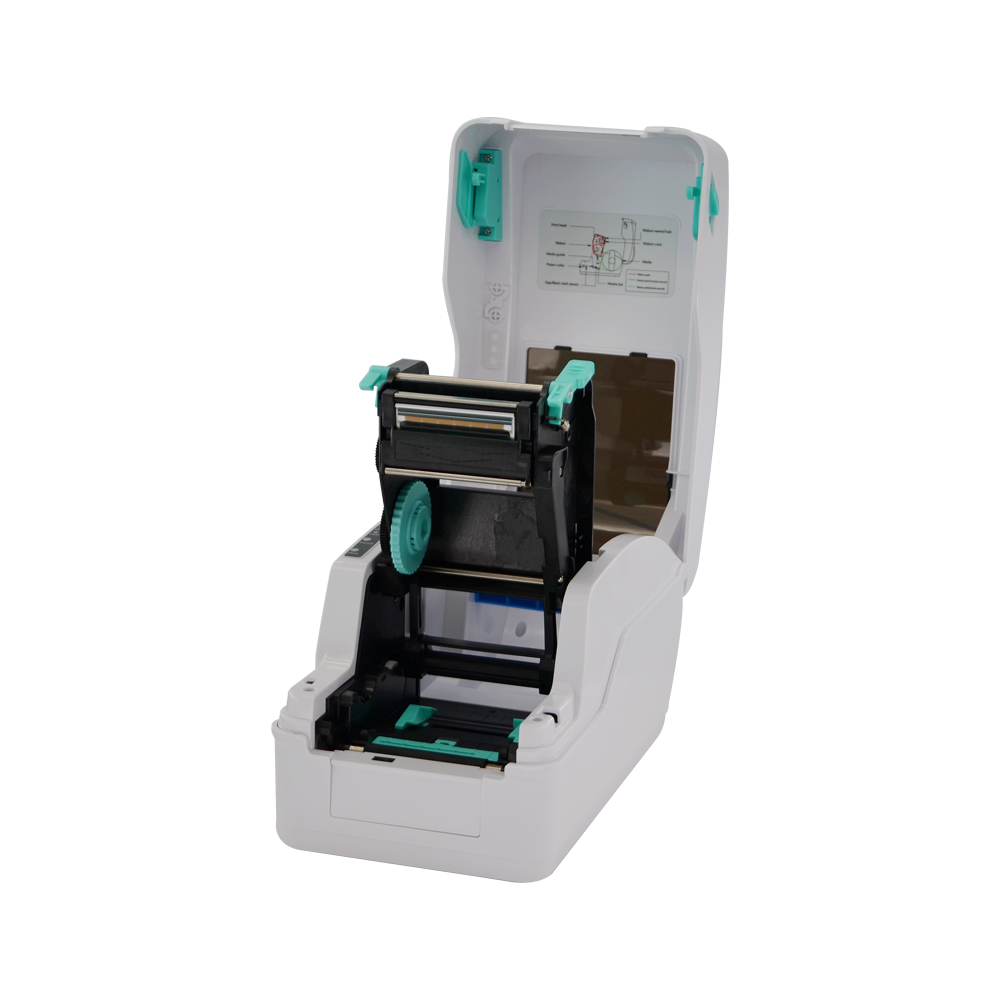

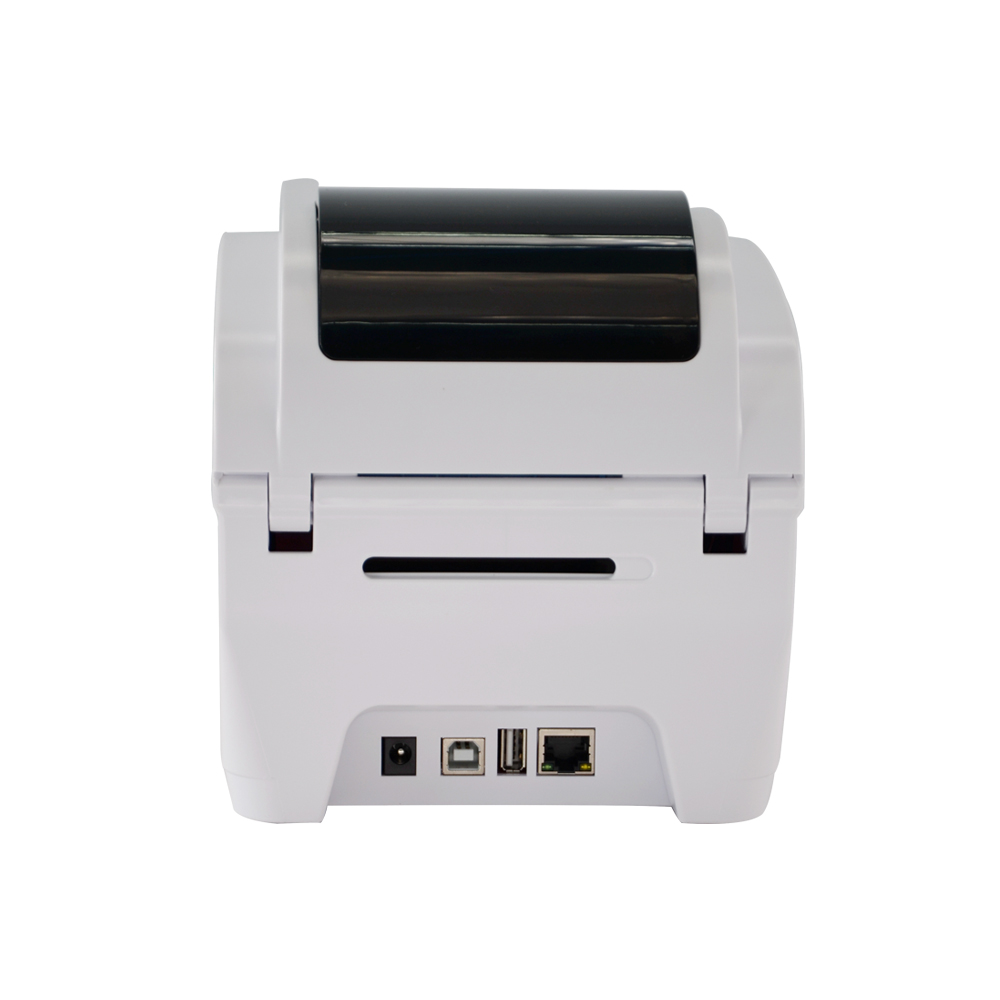

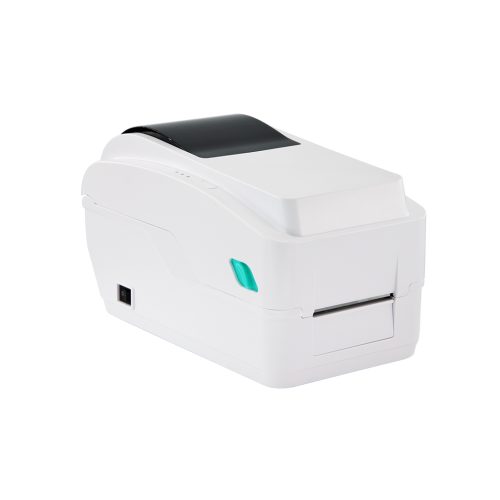

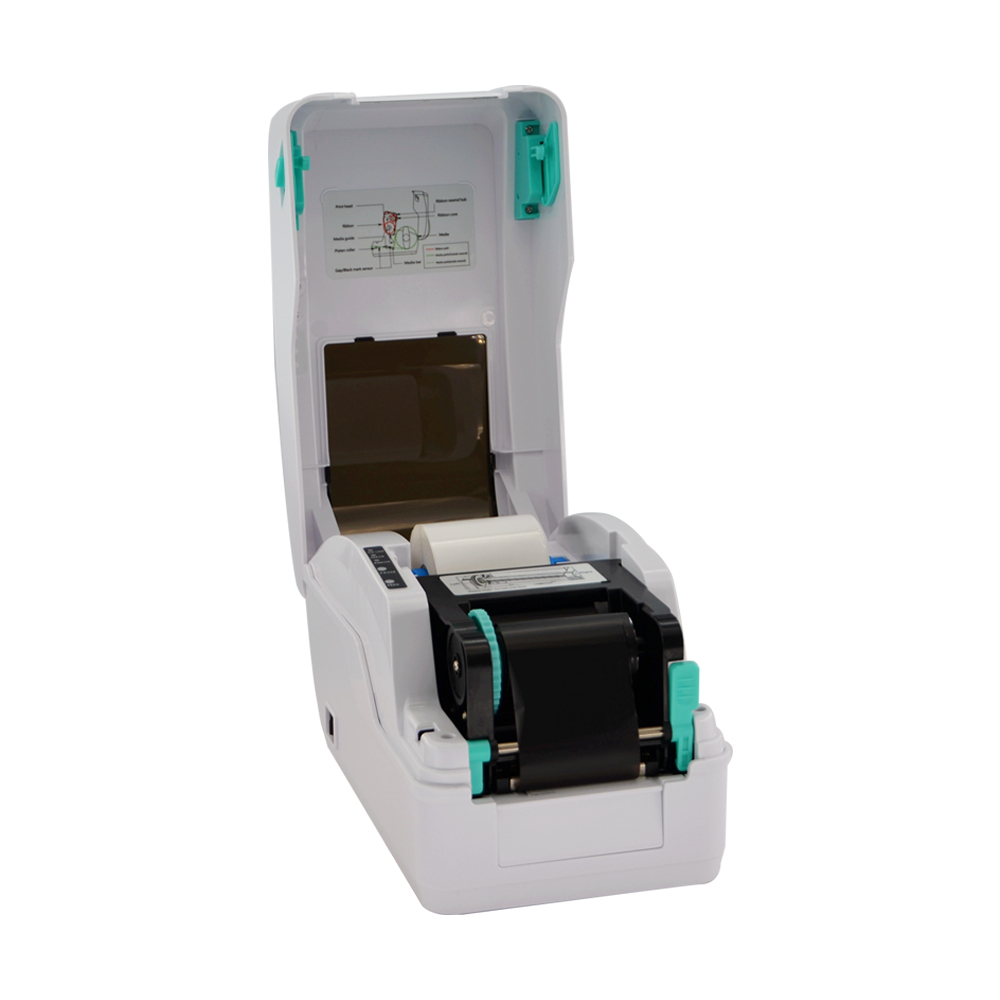

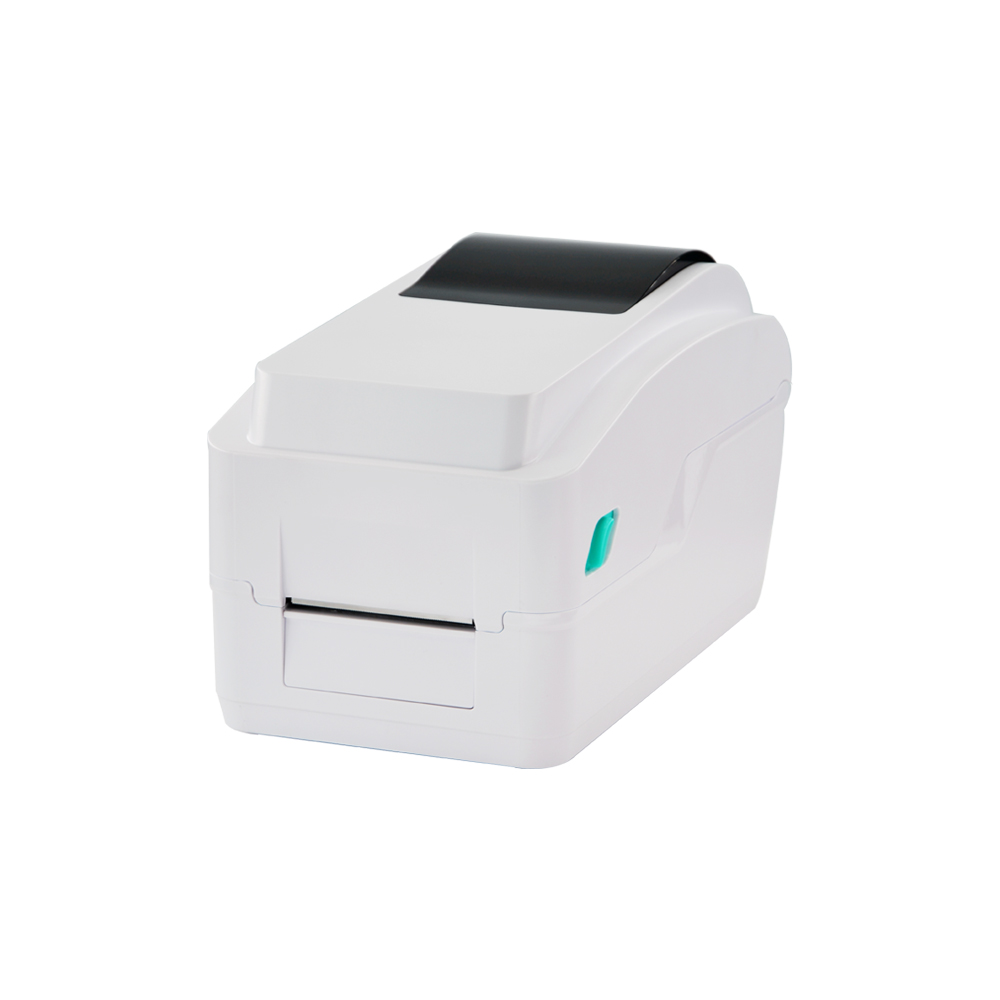

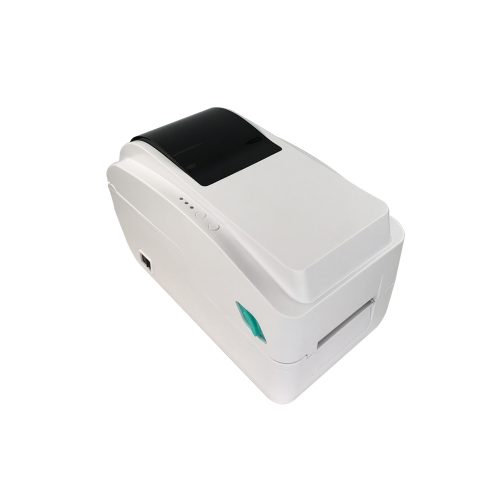

GS-2206T 2-inch desktop barcode printer of thermal transfer is simple to load ribbon and print media, and it’s greatly easy to set up. Wristbands and labels for medical, government, entertainment, food truck, retail stores, pet wristbands, and labels are all possible with this solution to fit your business situation with this 2-inch desktop barcode printer.
If you have special needs for your business, you can contact us for customizable solutions. By the way, you would like to download the product catalog to gain your first understanding of our superior products and choose the ideal one for running your business.
Level | Standard |
Resolution | 8 dots/mm (203DPI) |
Printing Method | Thermal Transfer & Direct Thermal |
Max. print speed | 152 mm (6″)/second |
Max. print width | 54 mm (2.13″) |
Max. print length | 2,794 mm (110″) |
CPU | 400 MHz, 32 bits, ARM9 |
Memory RAM | 64 MB SDRAM |
Memory ROM | 32 MB Flash / 128 MB Flash(factory option) |
Interface | •USB 2.0 High-Speed 480Mbps •USB Host 2.0, for scanner or PC keyboard RS-232(factory option) •Internal Ethernet 10/100Mbps(factory option) •Internal Bluetooth 4.0 (factory option) •Internal WiFi (factory option) |
Real-Time Clock | N/A |
Buzzer | N/A |
Dealer options | •Guillotine cutter (full cut and partial cut) |
Sensors | Head open sensor, Ribbon end sensor, Reflective sensor (moveable), Front-Reflective sensor |
Power | External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W |
User Interface | • 1 power switch • 2 buttons (Feed & Pause) • 3 LEDs (Online, Error, Ribbon status) |
Internal fonts | • 8 alpha-numeric bitmap fonts • True type font engine (need to download scalable font file) |
1D Barcode | Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13,Interleaved 2 of 5,ITF14,MSI Pleassy,PostCode,Telepen |
2D Barcode | QR Code,Micro QR Code,PDF417,Micro PDF417,Grid Matrix,MaxiCode,Aztec Code,Data Matrix |
Rotation | Font and barcode support 0, 90, 180, and 270-degree rotation |
Printer language | Compatible to TSPL, EPL, ZPL, ZPL II, DPL |
Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
Media width | 15 ~ 63 mm (0.59″ ~ 2.48″) |
Media thickness | 0.06 ~ 0.19mm (2.36 ~ 7.48 mil) |
Media core diameter | 25.4 mm (1″) |
Label roll capacity | 127 mm (5″) OD |
Label length | 5 ~ 2,794 mm (0.2″~110″) |
Physical dimension | 160mm(W) x 170mm(H) x 280mm (L) |
Net Weight | 1.8kg |
Enclosure | ABS plastic |
Ribbon | 300 meters long, max. OD 66mm, 1″core (ink coated outside) |
Ribbon width | 30 ~ 60 mm (1.18″ ~ 2.36″) |
Environment condition | Operation: 5~40°C, 25~85% non-condensing Storage: -40~60°C, 10~90% non-condensing |
Environment concern | Barcode Printer Comply with RoHS, REACH, WEEE |
Accessories | • Driver and software CD • Quick start guide • USB cable • Power cord • External universal switching power supply • 1″ ribbon spindle x 2 |
