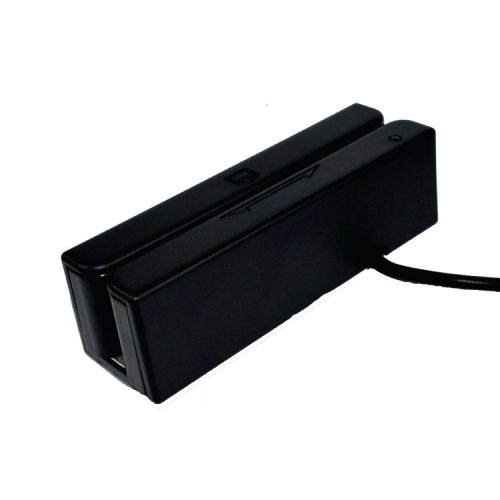

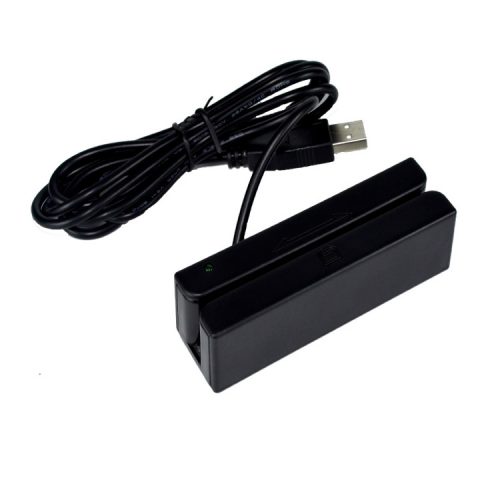

MSR for POS System

  • MSR for POS Systems can read ISO7811/7812 and other data format.
  • 1,000,000 Card swipe long life read head.
  • Magnetic Stripe Reader with USB interface, RS232 interface, and PS2 interface optional.
  • Power is sourced from a PC keyboard.
Category: SKU: MSR Tags:

Share this product


MSR for POS System machine is one of the POS system accessories that can read ISO7811/7812 data format to make your transactions faster, easier, and more secure.

The magnetic stripe reader can read the information stored on the magnetic stripe of various cards like credit cards, debit cards, and access cards, working with different devices like phones, tablets, computers, and terminals, and supporting swipe payment methods to enhance your customer service and efficiency.

The MSR in POS machine provides multi-connections of USB, RS232, and PS2 to satisfy the application needs and sustains the working lifecycle of 500,000 times for card passing, where it is durable for MSR machines to be equipped with supermarket POS terminal machines to accomplish payment transactions as part of POS system accessories.

If you only need the MSR to fit your POS system, you could contact us for a direct inquiry about MSR POS.

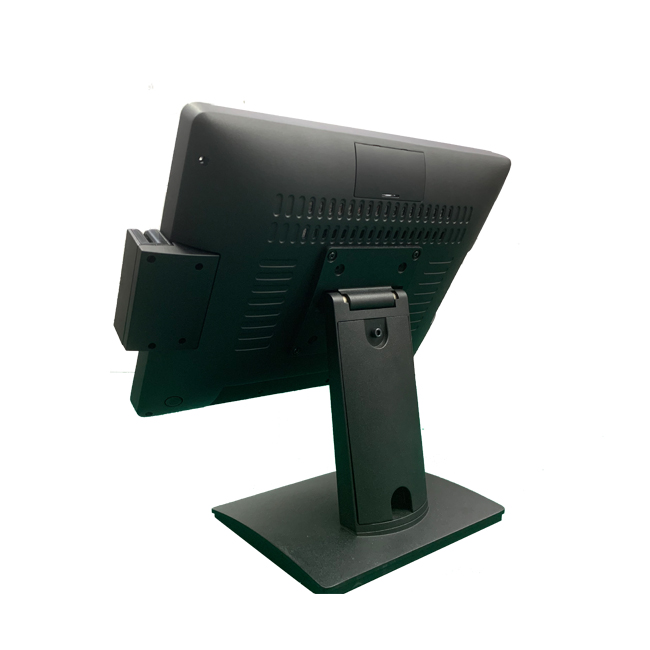

Nevertheless, if you demand one total set of POS terminals with MSR, you could call us to inquire about Windows or Android POS terminals with MSR optional.

Part No.
Series Type
MSR Series
Card Standard
Track Position
ISO 1 (IATA)                                     ISO 2 (ABA)                            ISO 3 (MINTS)
Recording Density
210 BPI                                                75 BPI                                    210 BPI
Recording Capacity
79 Characters (7bits)              40 Characters (5bits)            107 Characters (5bits)
Power Supply
+5V DV ±5%
Power consumption
30mA (max.)
USB / Serial
Card Thickness
Plastic 0.76 ± 0.08mm
Head Function
Read only 1.5mm
Operation Speed
10 ~ 150cm/sec
Life of Head
500,000 card passes (1 pass: one swipe)
Error Rate
Less than 0.5% (JSE Test card)
Storage : -30°C to +70°C Operating : -20°C to +70°C
Storage : 0% to 95% RH Operating: 20% to 90% RH
100mm(L) x 34mm(W) x 30mm(H)
