VS110 Compact Industrial 2D Barcode Reader
- Industrial 2d barcode reader features in compact design highly easy to read codes.
- A variety of light options are available to meet actual requirements of various business scenarios.
- Kinds of wires and interfaces can be customized by 2d barcode reader.
- Accurately scan 2D barcodes dotted on the surface of metal castings.
- Support 1D & 2D barcode reader scanning on production line moving/rotating workpieces.

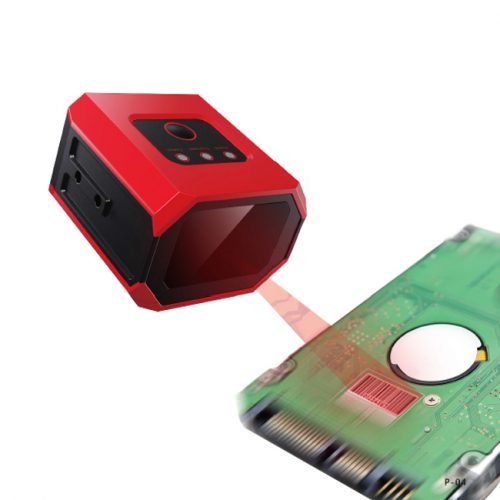

- Stable scanning ability of 2D barcodes on PCB boards.
You are here:
Share this product
Description
VS110 Compact Industrial 2D Barcode Reader is one type of barcode scanner that is equipped with a new algorithm to achieve the same level of ultra-high reading capacity for more sophisticated business occasions.And a variety of wires, interfaces can be customized due to demand and actual applicaion for warehouse inventory management or logistics & express barcodes scanning.
| Module NO. | VS110 | |
| Image Sensor | Sensor | CMOS Sensor |
| Resolution | 1280 X 1024 | |
| Frame Rate | 60fps | |
| Lens | Focal Distance | Fixed Focal Distance |
| Field of View | Horizontal Angle : 44° | |
| Vertical Angle : 34 ° | ||
| Light Source | Illumination | Red LED （Optional Blue LED and White Led） |
| Aimer | Laser Aiming | |
| Indicator | Power Indicator, Decoding Indicator, Network Port Indicator | |
| Symbology Decode | 1-D | Codabar 、 Code 39 、 Code 32 Pharmaceutical (PARAF) 、 Interleaved 2 of 5 、 NEC 2 of 5 、 Code 93、 Straight 2 of 5 lndustial、 Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、 Code 128 、 GS1-128、 UPC-A、 UPC-E、 EAN/JAN-8 、 EAN/JAN-13、 MSI 、 GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 GS1 DataBar Expanded、 China Post(Hong Kong 2 of 5) 、 Korea Post |
| 2-D | Codeblock A、Codeblock F、PDF417 、Micro PDF417、GS1 Composite Codes、QR Code 、Data Matrix、Maxi Code 、Aztec、HANXIN | |
| Mini Accuracy | 4mil | |
| Input & Output | 1 Optical Isolation Input | |
| 1 Optical Isolation Output | ||
| Serial Communication | Communication Standard: Conform to RS232C Transmission Speed : 9600 、 19200 、 38400 、 57600 、 115200 bps | |
| USB | Communication Standard: Conform to USB Standard Protocol | |
| Rated Value | Voltage | SVDC±5% |
| Current | Stand-by Current : 160mA | |
| Operation Current : 260mA | ||
| Power Consume | 1.4W | |
| Environmental Resistance | Temperature | Operation temperature : 0 ~ +45°C |
| Storage Temperature : -10 ~ +50°C | ||
| Humidity | Relative Humidity : 5% ~ 85% (No condensation) | |
| Storage Environment Humidity : 5% ~ 85% (No condensation) | ||
| Protection | IP67 | |
| Ambient Light | Sunshine:10000lux、 Incandescent:6000lux、 Fluorescent:2000lux | |
| Fall | Withstand multiple 12m drops to the concrete floor (deflection allowed 5° ) | |
| Machine | Dimensions | 45.4mm x 47.0mm x 29.9mm |
| Weight | 105g | |
| Shell material | Aluminium Alloy | |
| Certification | CE FCC RoHS IS09000 I0S9001 |
