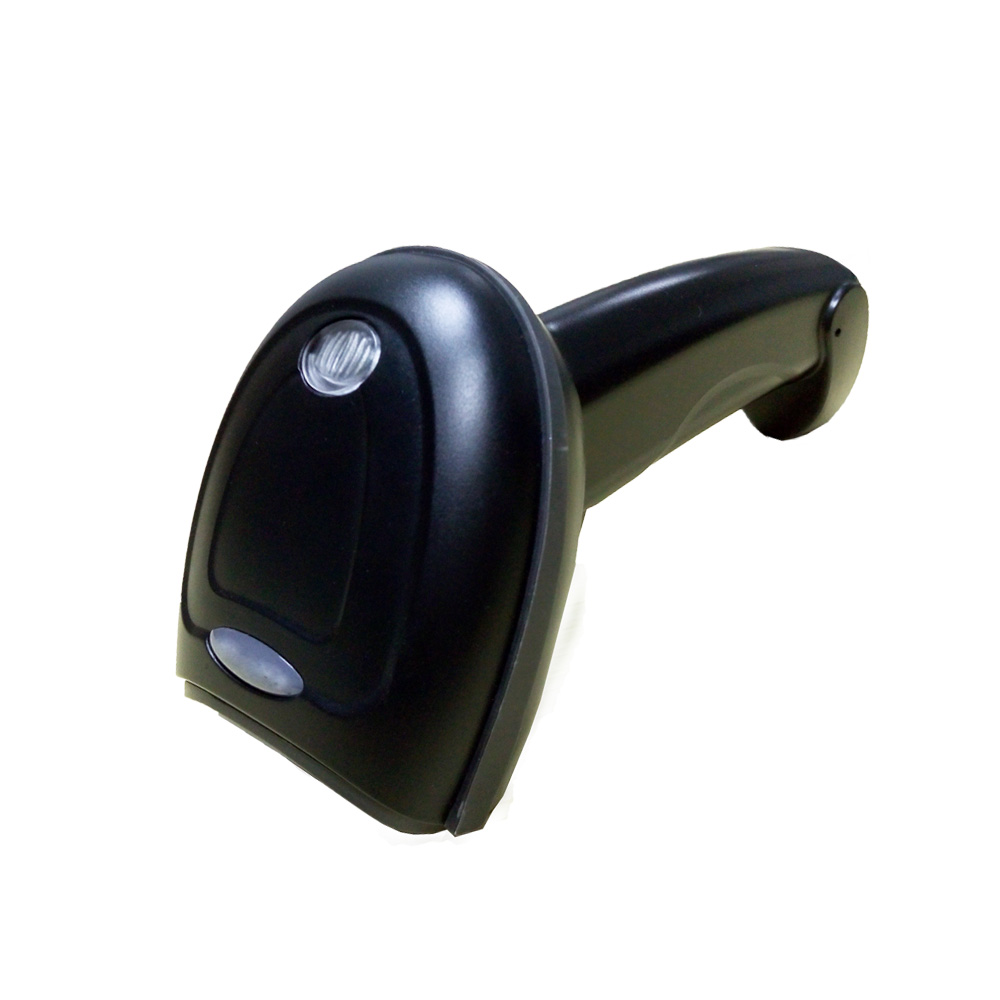

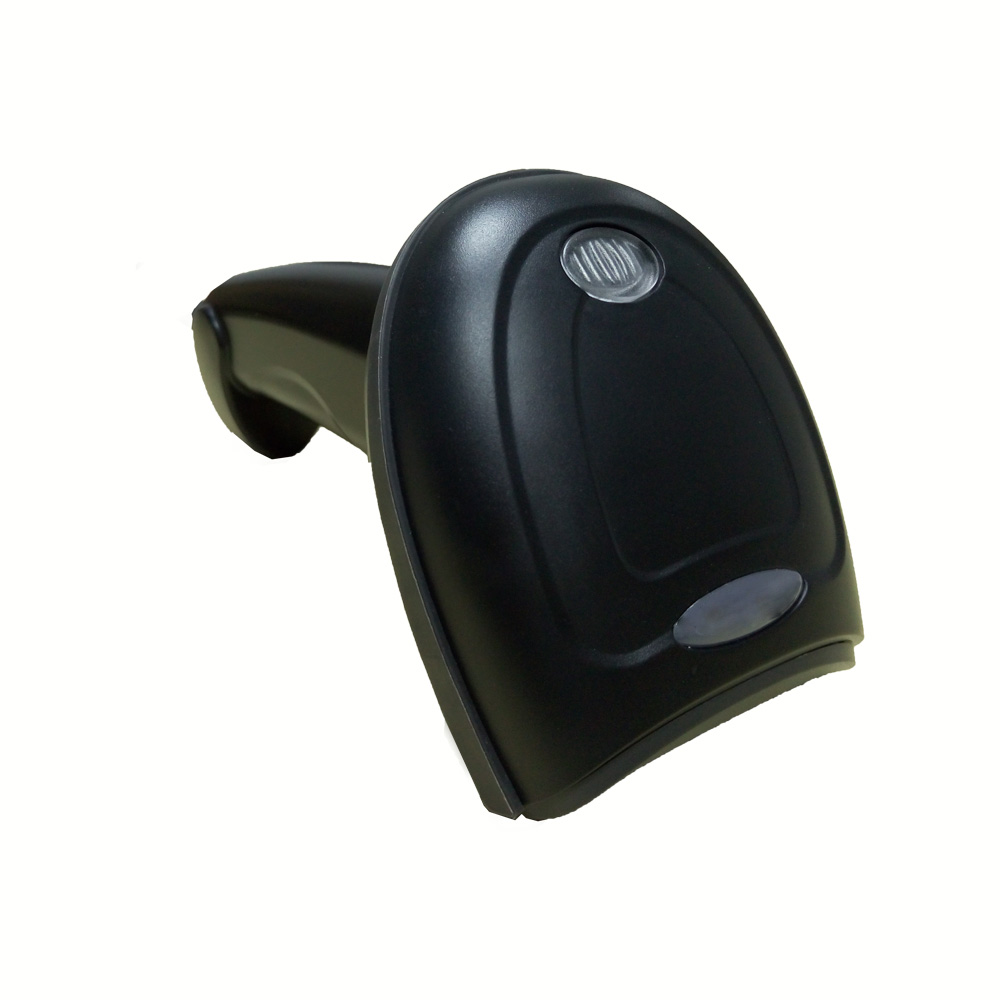

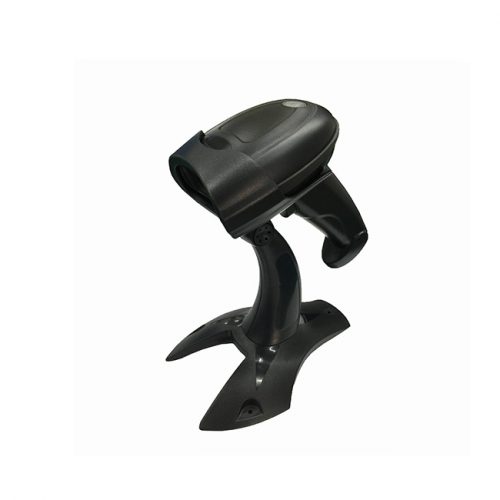

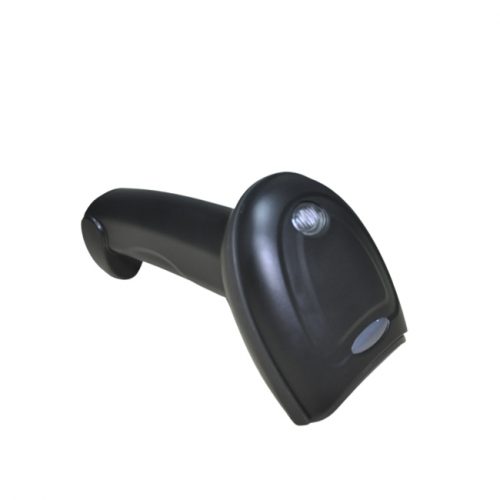

RZ-GBR2 Sharp 2D barcode scanner
- RZ-GBR2 with high sensitive image sensor (can read on electronic screen)
- Good penetrability barcode scanner which can read all standard 1D barcodes and 2D barcodes
- With white light and low hurt for eyes
- High decoding ability for easily reading damaged and substandard barcodes
- Rugged design IP54 with stands multiple 1.8 m drops
Share this product
Description
RZ-GBR2 SHARP 2D barcode scanner has perfect penetration that can read all typical 1D and 2D barcodes, and have a high decoding ability to scan broken and inferior barcodes with ease, and the 2d barcode scanner can be easily connected to other kinds of SHARP Pos Machines for all-in-one Point-of-sale solutions in the current market segments through Vmax’s share and support.
| Scan Performance | RZ-GBR2 |
| Scan mode | Automatic/handheld |
| Alarm mode | LED light alarm, Buzzer alarm |
| Read speed | 250mm/sec |
| Resolution | 640(horizontal) x 480( vertical),256 gray levels |
| Scan angle | 45°(horizontal);30°(vertical) |
| Scan depth of field | 5 mil(Code 39) 30~120mm |
| 13 mil(UPC/EAN) 30~305mm | |
| 20 mil(Code 39) 30~450mm | |
| 10mil(QR code) 40~225mm | |
| Revolve angle | roll65°,pitch35°,yaw45° |
| Barcode type | Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN, ETC. |
| Electrical | |
| Voltage | DC 5V±5% |
| Operating current | 60mA(working); 40mA(standby); 300mA(operating) |
| Interfaces | RS232, PS2 keyboard wedge, USB, HID |
| Light | Visible Red light 630+10nm |
| Light level | Can resistive the Interference of lamp-light and sun-shining |
| ESD protect | 15KV |
| Electric Safety | En55022: 2006+A1: 2007 En55024: 1998+A1: 2001+A2: 2003 |
| Environmental | |
| Operating temperature | -20°C ~ 60°C |
| Storage temperature | 30°C ~ 90°C |
| Humidity | 5% ~ 95% RH |
| Drop | Designed to withstand 1.8m drops |
| Physical | |
| Dimensions (LxWxH) | 170mm×100mm×75mm |
| Weight | 150g |
| Color | black |
