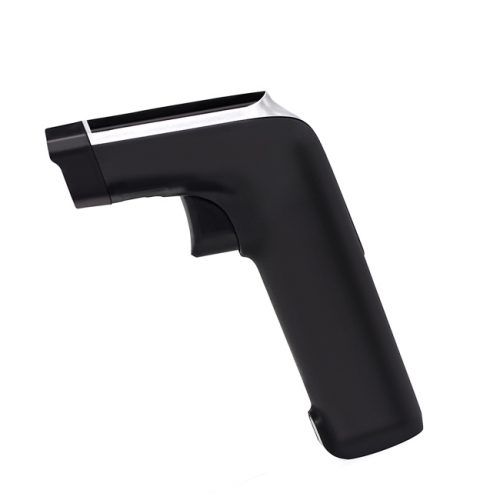

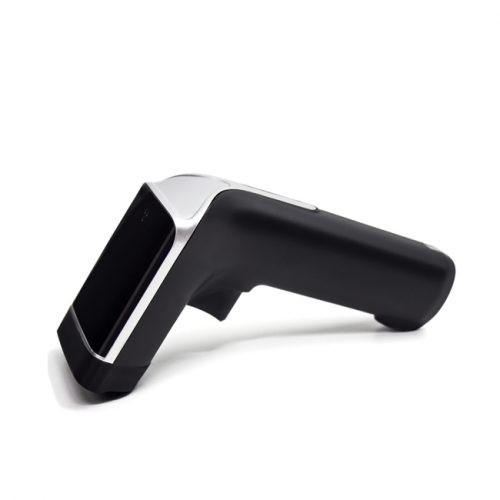

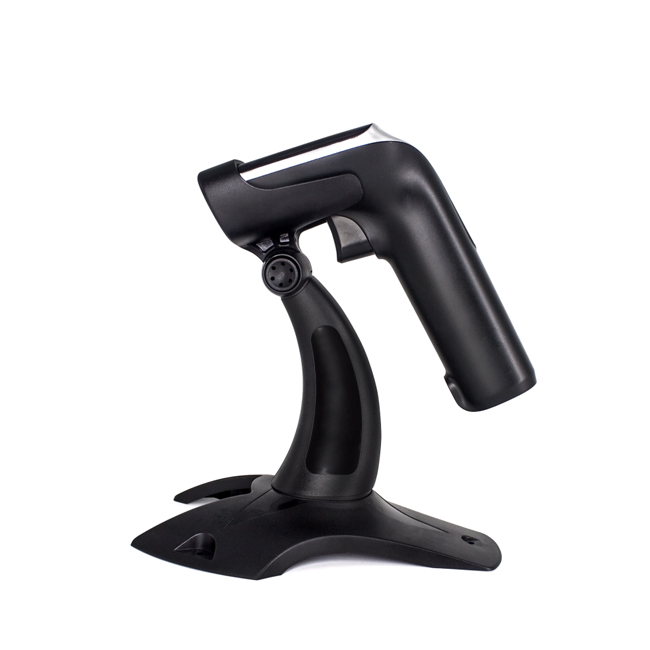

RZ-GBR1 Sharp 1D laser barcode scanner


  • RZ-GBR1 1D laser scanner excellent performance on reading damage, dirty and poor printing quality bar code
  • External waterproof and dustproof function, suitable in damp and dusty environment.
  • Excellent code recognition capability,easily identify color barcodes, non-white background barcodes
  • The laser life can reach 10 thousand hours, and the key life is as high as 3 million times.
  • Rugged design IP54 with stands multiple 1.8 m drops
You are here:
Categories: , SKU: RZ-GBR1 Tag:

Share this product


RZ-GBR1 SHARP 1D laser barcode scanner is able to read damage,greasy dirt,wrinkle,or bar code with poor printing quality.External waterproof function,which RZ-GBR1 can work in 5%~95% RH.And the 1D barcode scanner can scan 3 million times and service life for 10 thousand hours.

Scan PerformanceRZ-GBR1
Scan modemanual,continuous mode, automatic mode
Alarm modeLED light alarm, Buzzer alarm
Read speed200times/sec
Scan depth of field2.5mm-600mm
Bit error rate1/5 million
Print contrastReflection coefficient is not less than 20%
Rotation angle1 +/- 30°
Inclination angle2 +/ -45°
Deviation angle3 +/- 60°
Barcode typeUPC/EAN,UPC/EAN including supplementary code,  Code128,UCC/EAN128,Code39,Code 39Full ASCII,Code128Full ASCII,Codabar,Interleaved 2 of 5,Code93,MSI,Code11,ISBN,ISSN,China Postage,etc
InterfacesRS232,keyboard wedge,USB
Light650nm Visible laser diode
Light levelCan resistive the Interference of lamp-light and sun-shiningty
National criteriaElectric Safety: Compliance with UL1950,CSA C22.2 No.  950,EN60950/IEC950
EMI/RFI: FCC Part 15 Class B,European Union EMC Directive,Taiwan EMC,
Laser Safety: CDRH Class II,IEC Class 2
Environment: Compliance with RoHS directive 2002/95/EEC
Operating temperature32° F ~ 104° F/0° C ~ 40° C
Storage temperature-40° F ~140°F/ -40°C ~ 60°C
Humidity5% ~ 95% RH
DropDesigned to withstand 1.8m drops
Dimensions (LxWxH)150mm×65mm×95mm
MaterialABS + PC
Environmental SealingIP54
