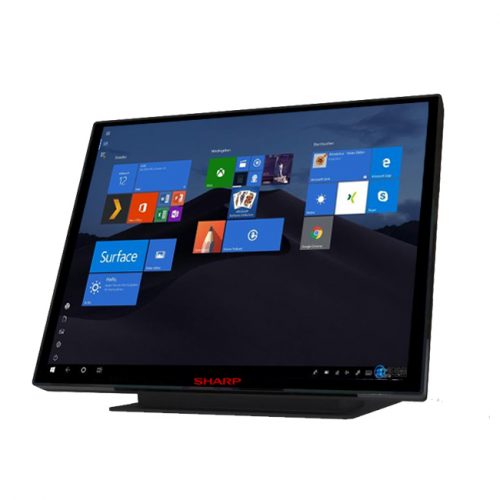

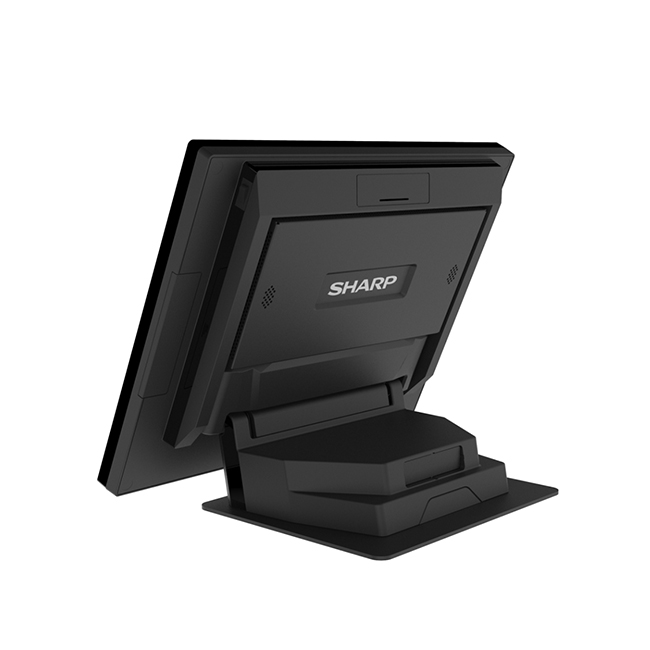

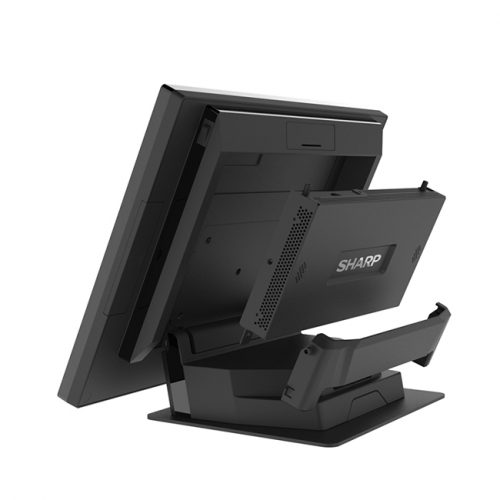

RZ-E561 15.6” All-in-one SHARP POS Terminal

  • RZ-E561: Good performance (Celeron J1900 CPU / 4 GB RAM).
  • Robust and durable body.
  • Standard OS: Windows 10 IoT Enterprise 2016 LTSB.
  • Many I/F (6 x USB, 2 x COM) for connecting various options.

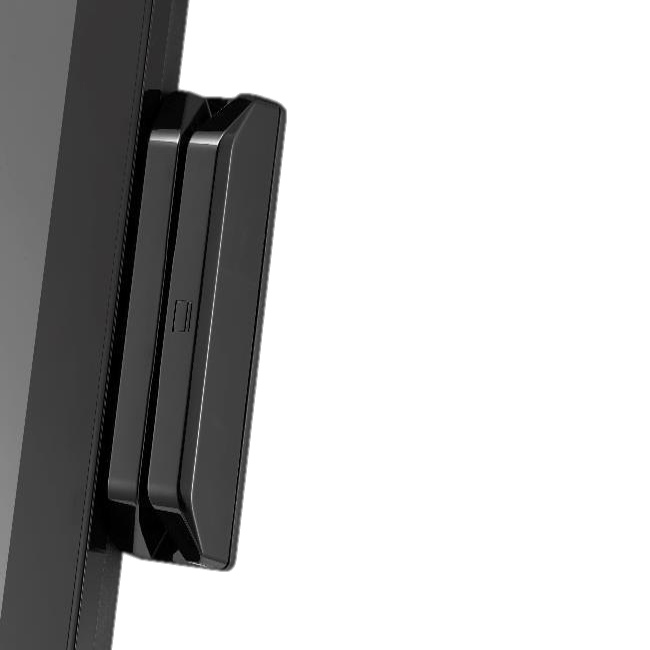

  • Dedicated connectors for 10.1” 2 and display and VFD and MSR.
  • SHARP POS True Flat screen with projected capacitive touch panel quality.
You are here:
Category: SKU: RZ-E561 Tags:

Share this product



RZ-E561 15.6-inches SHARP POS Terminal of a high-level all-in-one machine owns great performance (Celeron J1900 CPU / 4 GB RAM) and supports Windows 10 IoT Enterprise 2016 LTSB, which provides a high-performance design and specifications that can satisfy any demand of running business while retail, restaurant, even transport, and travel stores.

To ensure compatibility with POS system software and meet specific environmental requirements, the elementary SHARP POS Terminal is easy to be used for retail solutions or applications.

If you have an interest in the sharp pos terminal, you could call us for close communication, or download the product catalog for a preview to deliberation.

Entry-level POS (RZ-E561)
CPUIntel® Celeron® J1900 4 cores, Fan Less
MemoryDDR3L 4GB (Max. 8GB)
Storagem.2 2242 TLC 60GB SSD×1
SoundStereo Sound
ColorBlack/ White
Display15.6”TFT LCD WXGA, 220cd/m
Touch panelTrue flat, Projected Capacitive
Dimension (W×D×H)[mm]402×212×288
RS232C2 x COM DB9 (Pin 9, RI / 5V /12V)
Drawer1 x RJ12
USB4 x USB 3.0

2 x USB 2.0

LAN10/100/1000Mbps GbE
Audio1 x 2 W Speaker
OSWindows 10 IoT Enterprise 2016 LTSB (64bit)

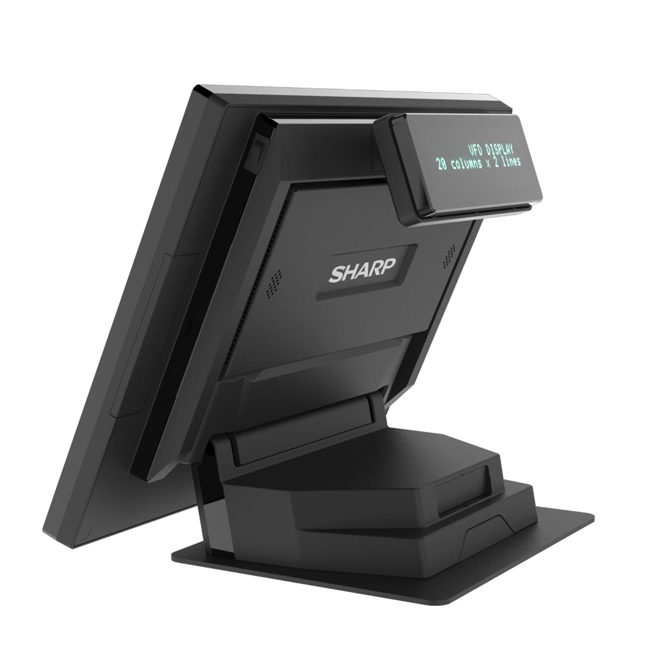

Customer displayVFD (RZ-E3DP1)

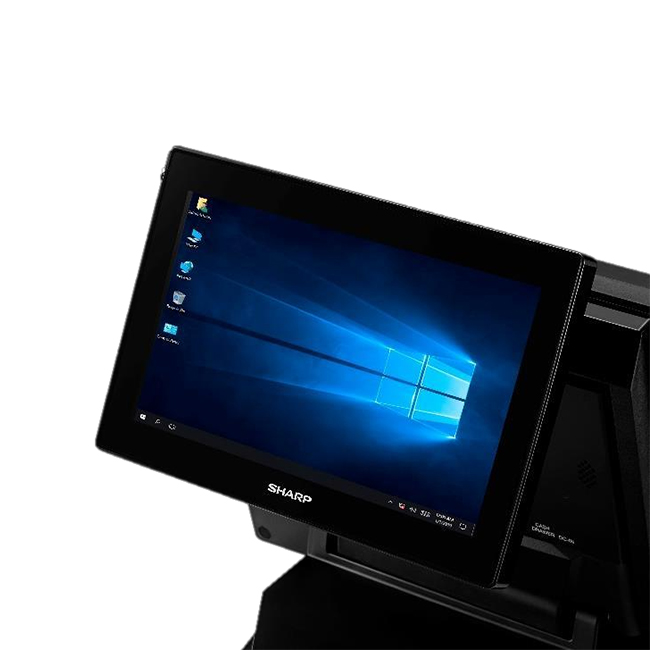

LCD CustomerDisplayy10.1” 2nd display (RZ-E3D1O)
Powered USB HubPowered USB Hub (RZ-E3AC1)

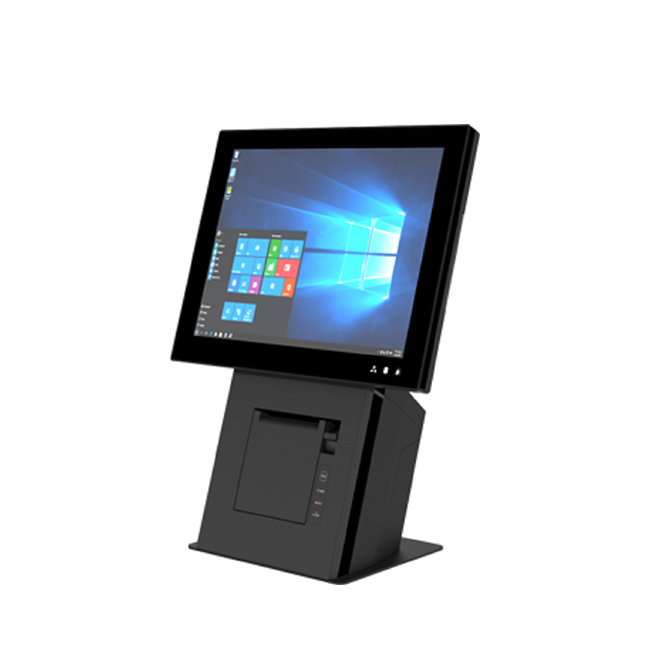

PrinterThermal Printer(RZ-E3RP1)
IO port ExpansionIO Expansion Box (RZ-E3IO1)
Barcode ScannerLocal Purchase
DrawerLocal Purchase
